Channel balance

Question

The metal channel is 26" long. Can you also advise the approximate weight of window. The window is 33 and 1/4" wide x 28 and 1/4" height.

Casey · Accepted Answer

Hello,

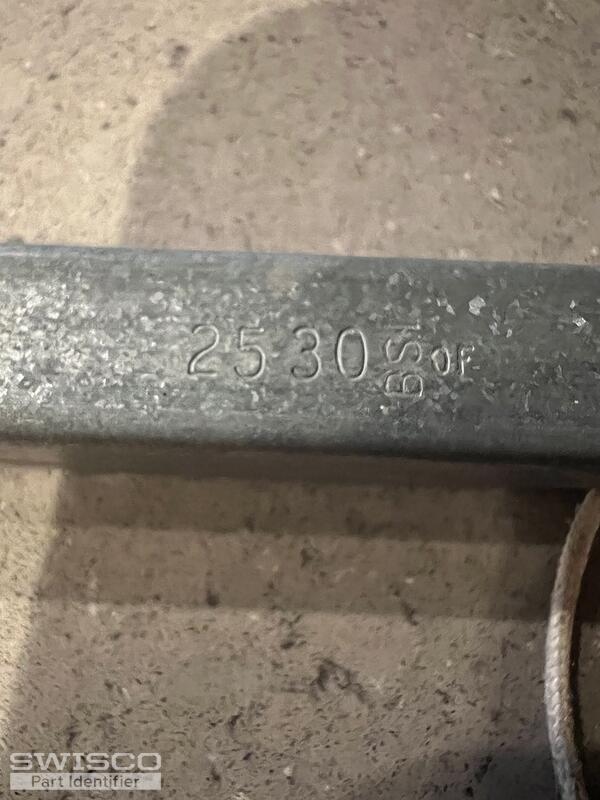

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2530 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

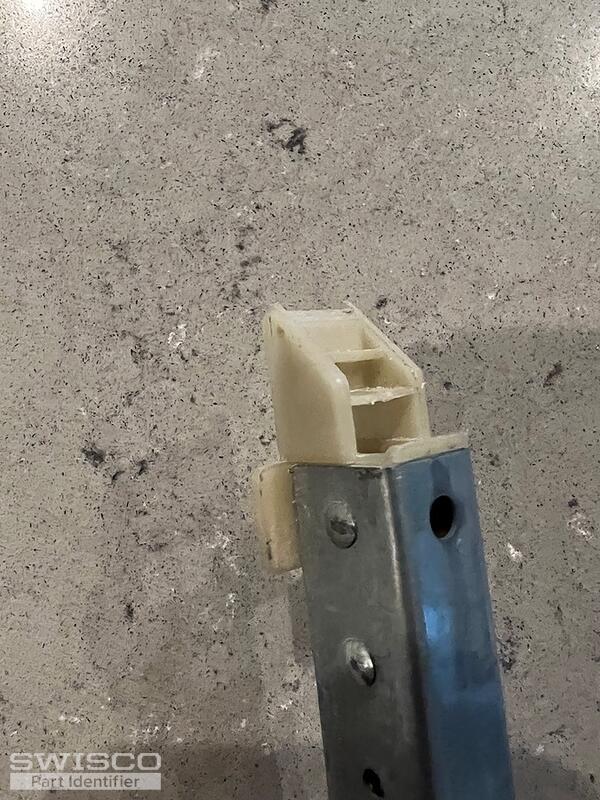

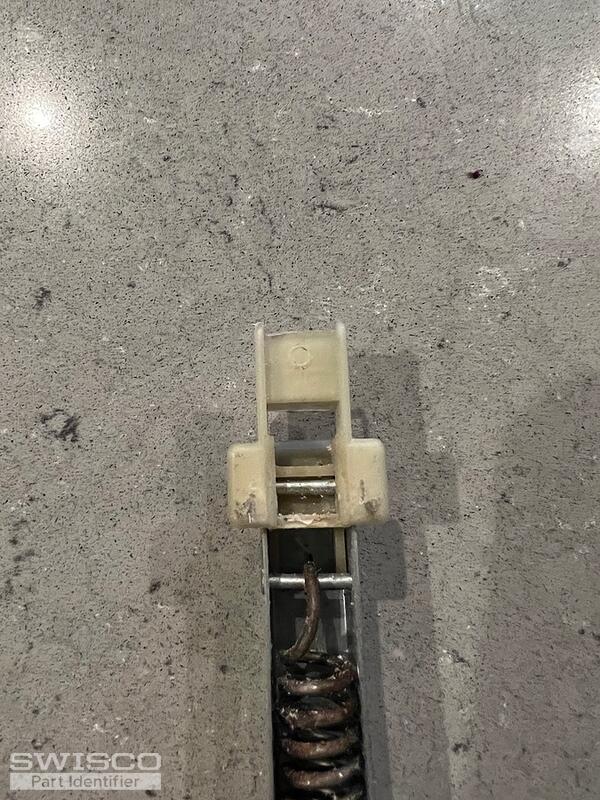

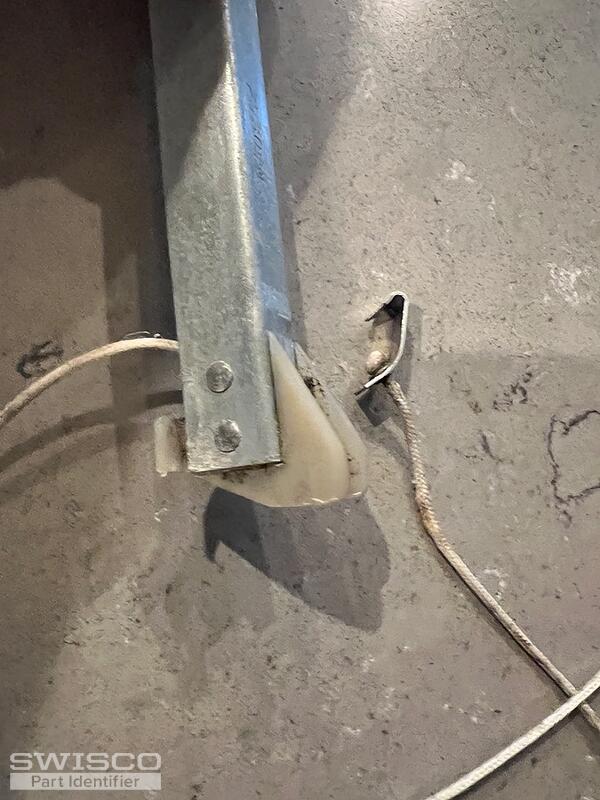

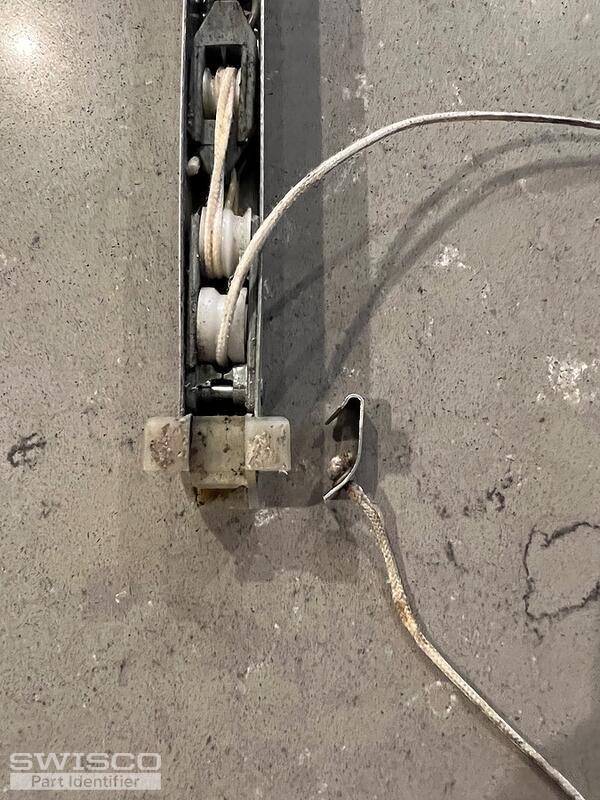

Comparison of the S378, S380 and S385 balance shoes.
