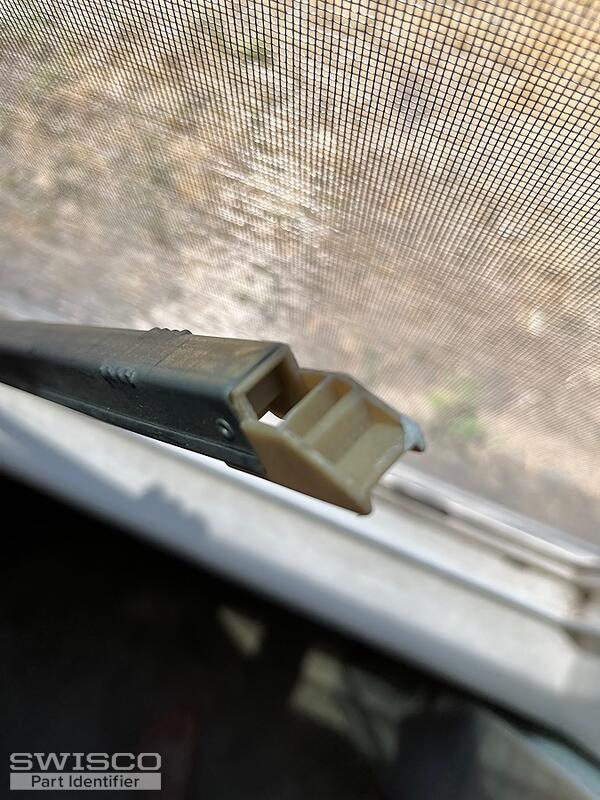

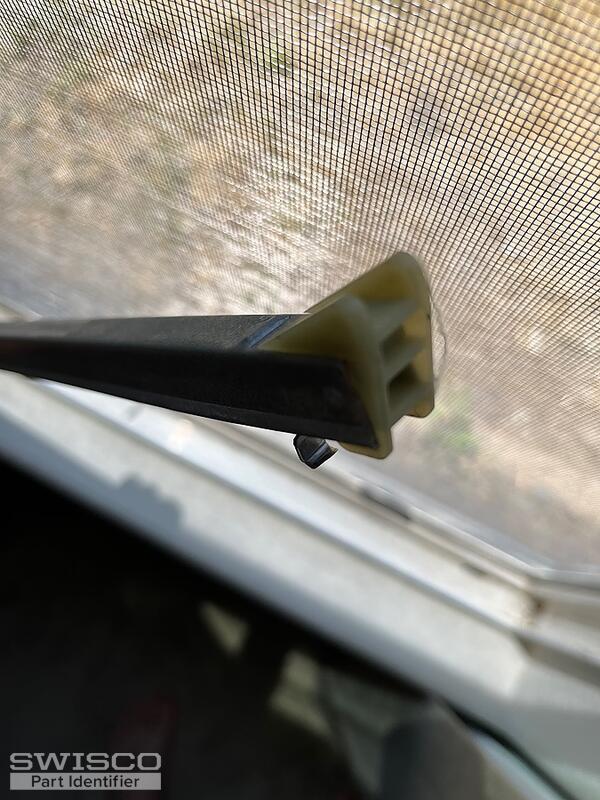

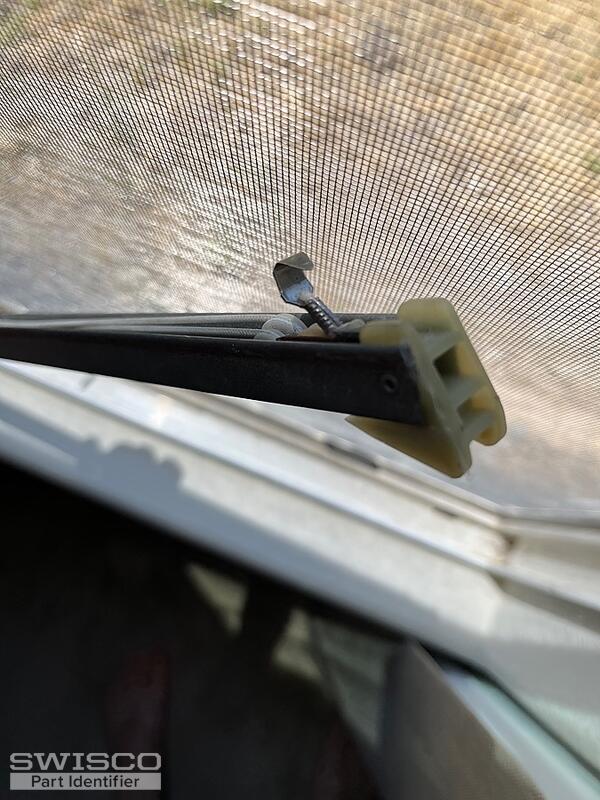

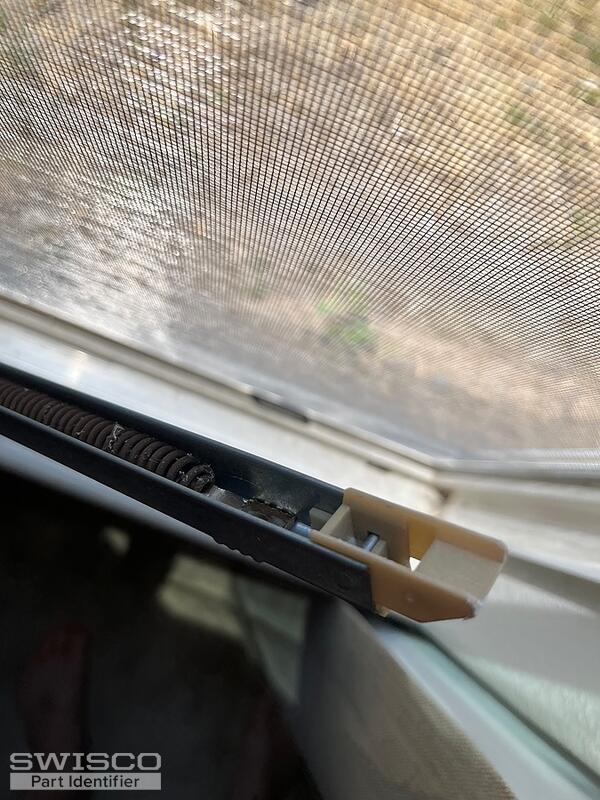

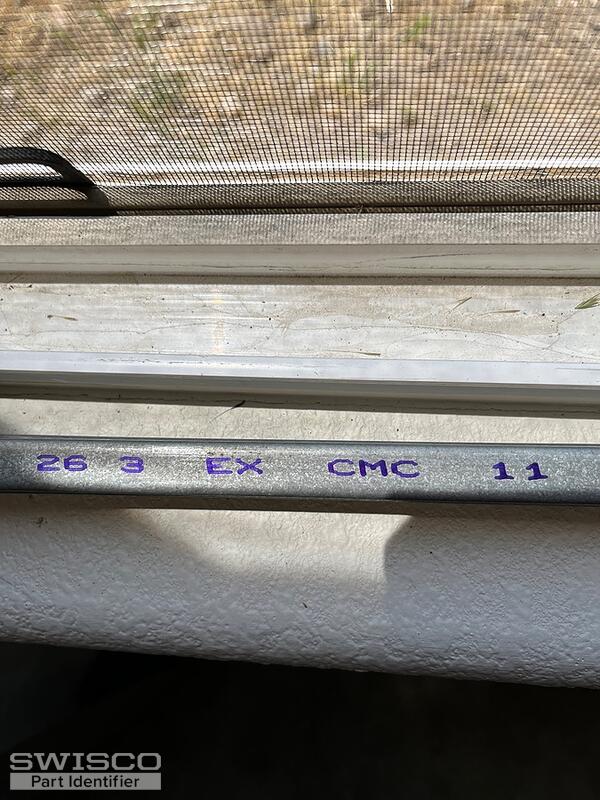

Need channel balance for IWC non-tilt window. Metal channel is 1/2" wide and 27" long. Refer to 5 attached pictures for markings on channel and plastic pieces on each end. Please advise on ordering of replacement part. Thanks.
Gary
Channel balance
Handy Person from Ione,CA
Jun 1, 2023 6:18 pm
5 user uploaded images
3 Replies
Handy Person from Ione,CA
Jun 2, 2023 11:39 am
I am realizing that the photos of the plastic end pieces are not of the best quality and I can take and send better pictures if you want.
Bob from SWISCO
Jun 3, 2023 10:49 pm
Hi Gary. No worries, these pictures will do just fine. You have either a S351-27 or S390-27. The difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the picture below for reference. Compare both with your old hardware to see what matches best. In either case, choose 2630 as your stamp option. Let me know if you have any other questions!
Comparison of the S351 and S390 balance shoes.
