Channel balance 20"

A quick learner from Upland California says:

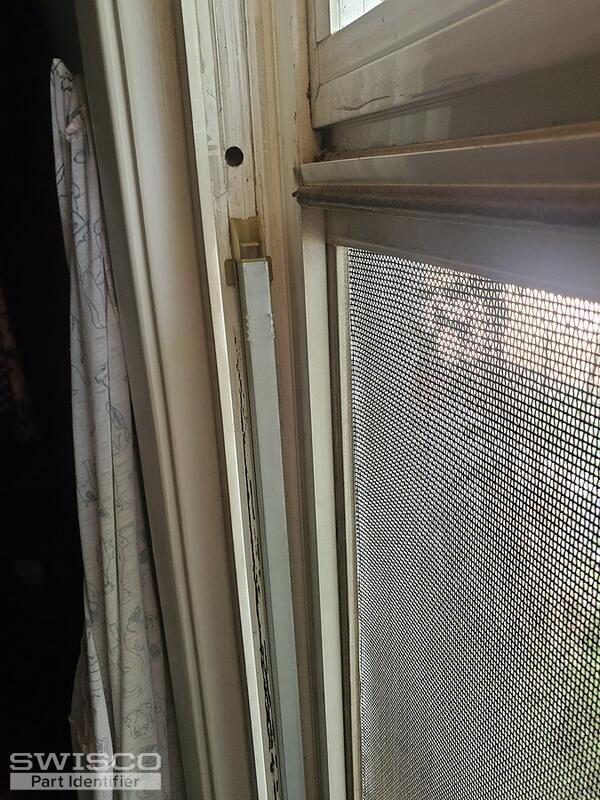

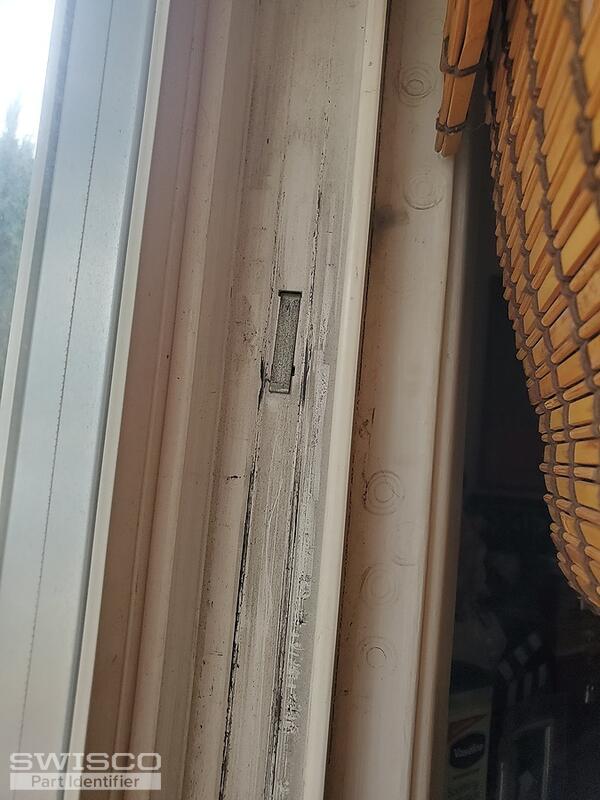

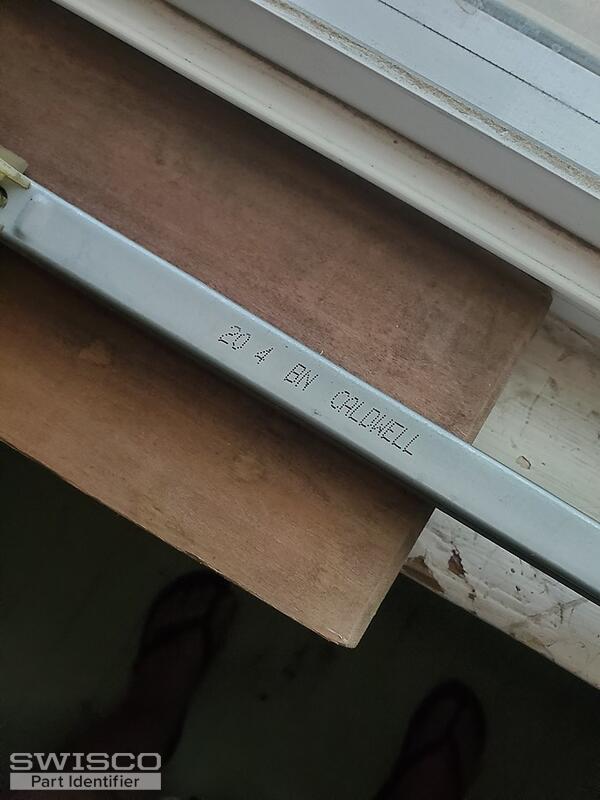

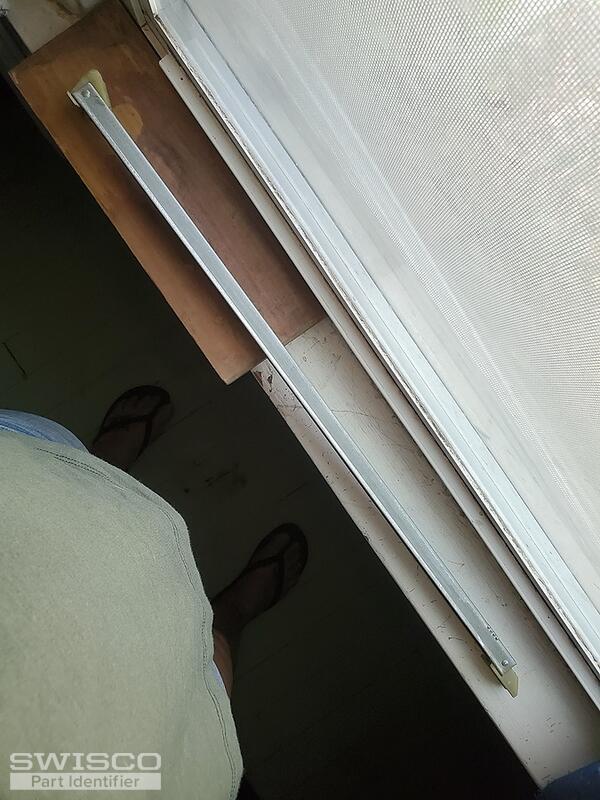

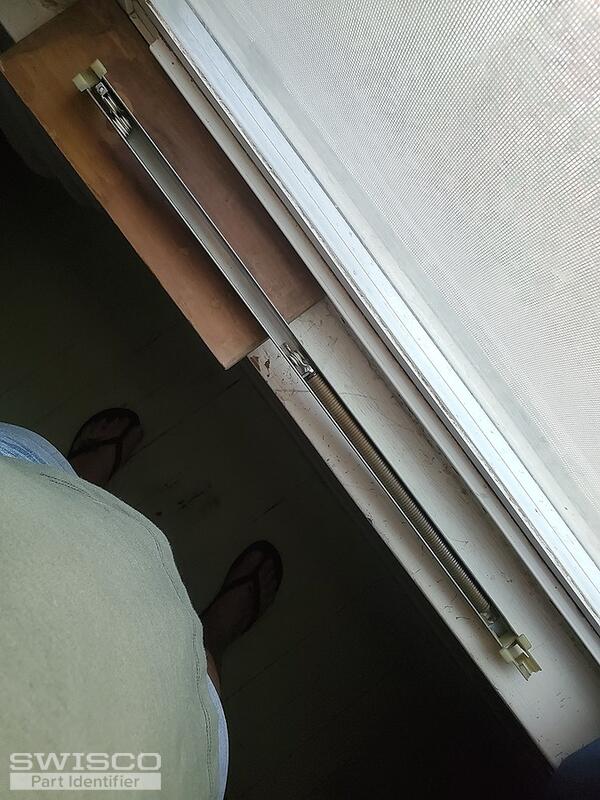

Please identify the parts order number. Stamp reads 20 4 BN CALDWELL
Thumbnail of the uploaded file named 16289670143393677390926929658304.jpg
Thumbnail of the uploaded file named 16289670791064586720421837807185.jpg
Thumbnail of the uploaded file named 16289671272825851305383185667040.jpg
Thumbnail of the uploaded file named 16289673390177083266832509959108.jpg
Thumbnail of the uploaded file named 16289679268795415375579916873481.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hey there!

With this combination of attachments, you could have either an S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2040.

If you have any further questions just let us know!
