Channel balance 26 inch 2530 BSI

A quick learner from Los Angeles, CA says:
July 8, 2020
Hello,
I need 4 of 26 inch 2530 BSI .
I do not know the with measure.
Please let me know how to order or what my model number is.
And is width facing the side facing the spring?
If so, my width is 1/2.
Thank you,
Reza

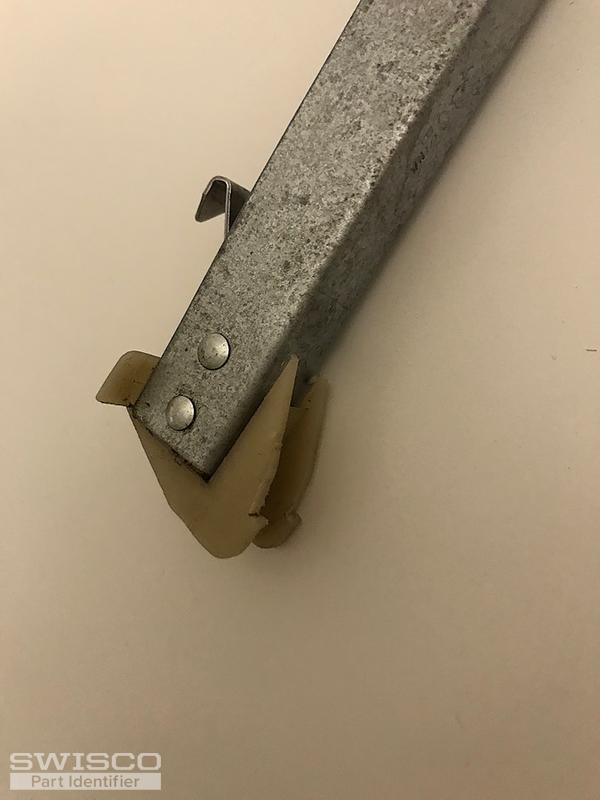

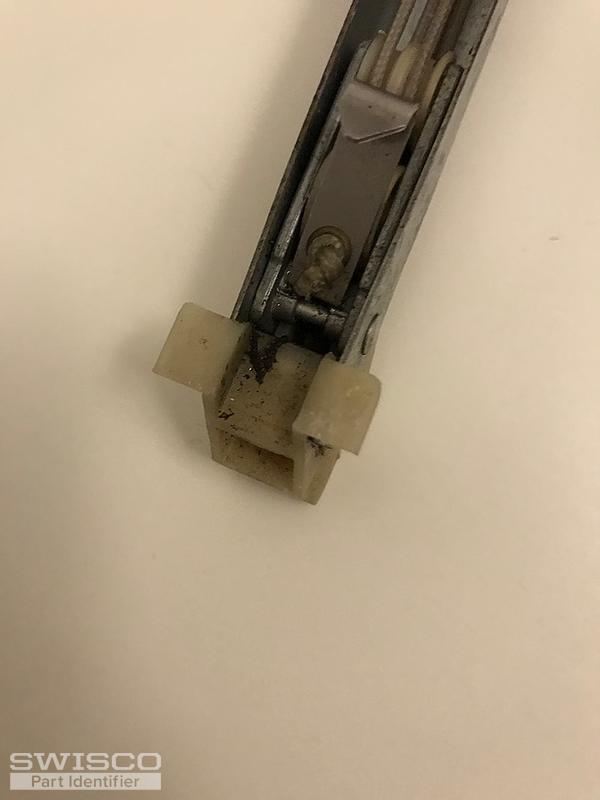

Thumbnail of the uploaded file named 8E07194D-B417-472B-83BC-229F35C39FEE.jpeg
Thumbnail of the uploaded file named 3C971495-0939-4A36-92AD-98BAA395D5DE.jpeg
Thumbnail of the uploaded file named 57D8EC94-AD17-4C3D-A159-6783156D66B7.jpeg
Thumbnail of the uploaded file named 65750D49-CC1C-4DEB-802B-58F2B3C8A03D.jpeg
Thumbnail of the uploaded file named 5E14B3FC-CC96-4871-A5FD-7A490708E5A7.jpeg
Profile picture of Casey
Casey from SWISCO responded:
July 10, 2020

Hi Reza,

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2530 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
26" Series 380 Channel Balance
26" Series 380 Channel Balance
S380-26
$10.55
26" Series 385 Channel Balance
26" Series 385 Channel Balance
S385-26
$10.55
