Channel balance

A quick learner from Martinsville, IN says:
T-lock balance shoe is 1 1/4" wide and 1/4" thick.
Thumbnail of the uploaded file named 1555951779299822594730.jpg
Thumbnail of the uploaded file named 1555951858526843378528.jpg
Thumbnail of the uploaded file named 26D B.S.I.
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I'm going to have my experts look at your pictures before we make a recommendations, but take a look at our video on removing a tilt-window channel balance in the meantime so that you can send us a picture of an undamaged balance and pivot shoe. Thank you!



A quick learner from Martinsville, IN says:
Correction:pivot shoe is 1/2" thick. The video shows a cutout and mine doesn't have one. By looking at it I can't see how to remove it. Any idra how to remove it?

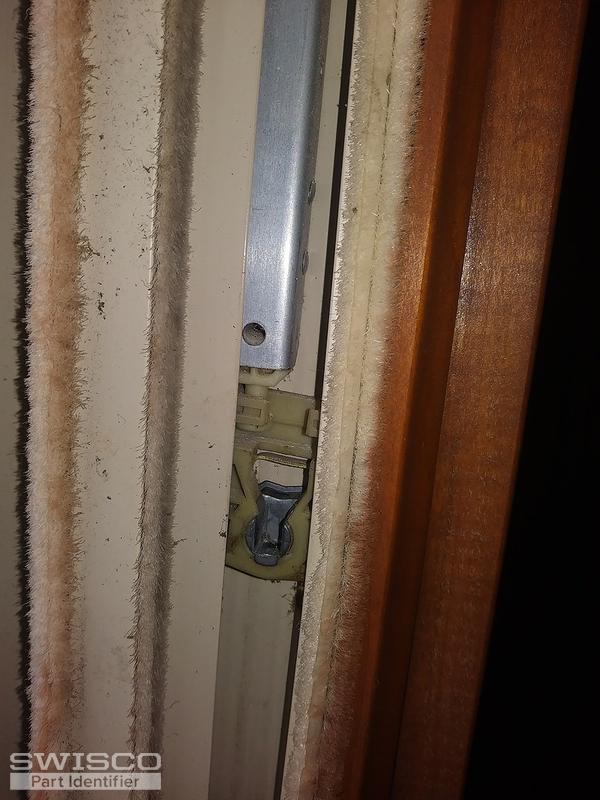

Thumbnail of the uploaded file named 1555967459478741855794.jpg

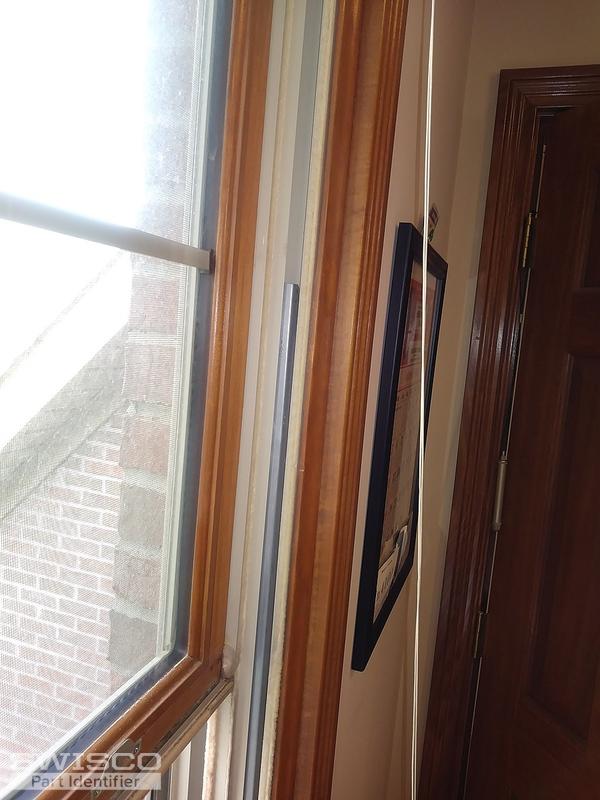

Thumbnail of the uploaded file named 1555967919738572144143.jpg
Profile picture of Bob
Bob from SWISCO responded:

If you have no cutout, you can create your own. See the video below.

A quick learner from Martinsville, IN says:

I need (4) 17-056 tilt pivots, or what ever you have that comes closer. These don't look the same but look like they will work.

I will call 5/3 to see what will work.

Thank you,

Gary

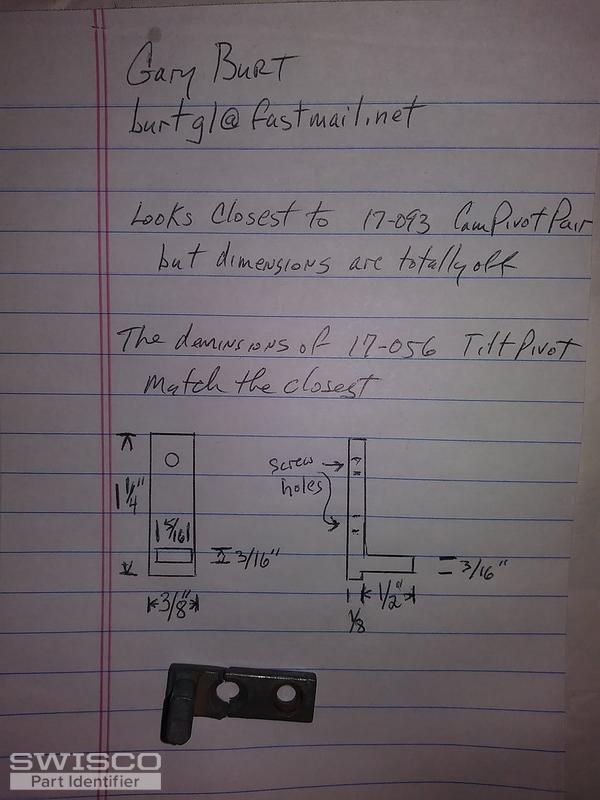

Thumbnail of the uploaded file named 20190502_172533.jpg

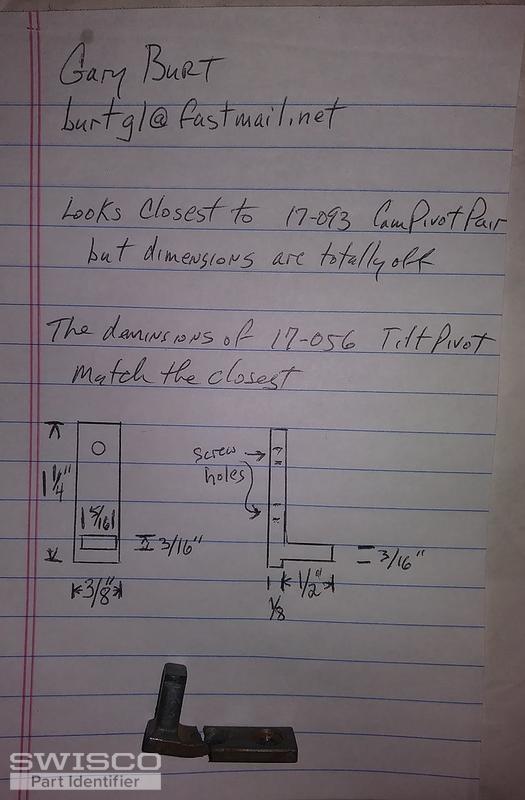

Thumbnail of the uploaded file named 20190502_172613.jpg

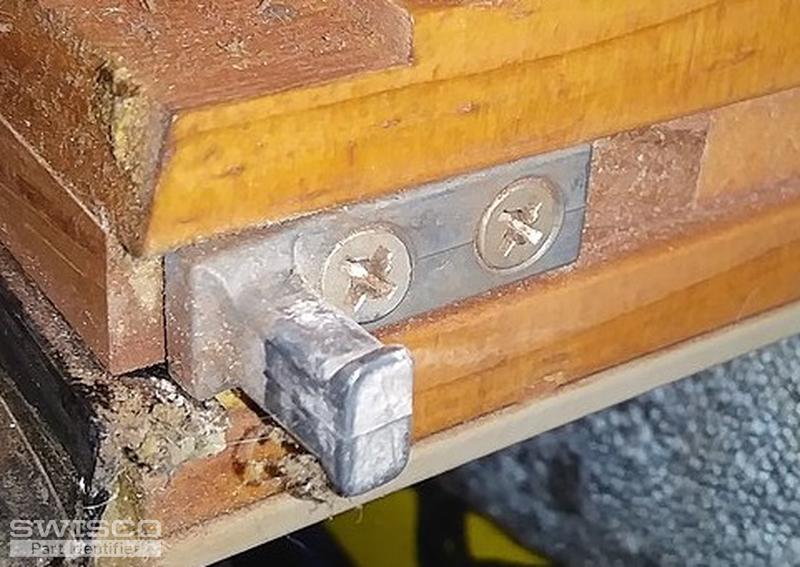

Thumbnail of the uploaded file named 20190502_172902.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your original pivot bar looks more like our 26-402. Look it over and let me know what you think.

I'm told by my colleague that you wanted a Series 770 channel balance custom made with a 15-044 attached, but it looks to me that your original was more like our Series 795 with a 15-224 inverted link. Is there any reason why that can't work for you? That wouldn't even  have to be custom made, you could just order the Series 795 and 15-224 link separately and then pop the link on when you get them.
