Hi,
I am in need of several channel balances as well as a take out clips.
The number on the balance is B.S.I mm.
The length is 28" Size of the wing is 15/16
Please help. Thank you.
Alex.
Channel balance
Home Owner from Denver
May 12, 2019 8:37 pm
5 Replies
Bob from SWISCO
May 14, 2019 8:57 am
Hi Alex. I'm pretty confident we can help you replace these balances, but I need more information to be able to help. First, can you show us pictures of the attachments at either end of the balance? Can you also show us a picture of this stamp code? Finally, can you confirm the length of the balance, not including the attachments at either end? From there, we'll try to narrow down what you might need.
For Take Out Clips, see our 16-002.
Home Owner from Denver
May 14, 2019 8:09 pm
Thank you Bob.

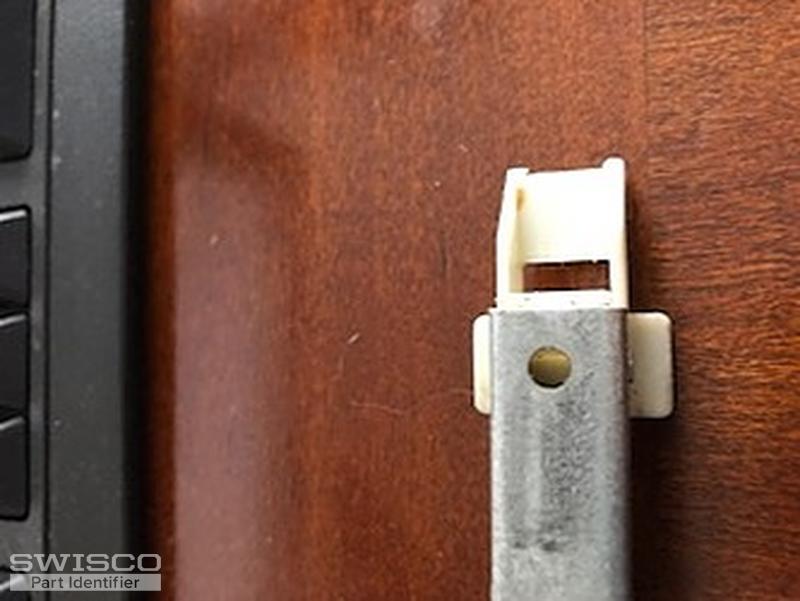

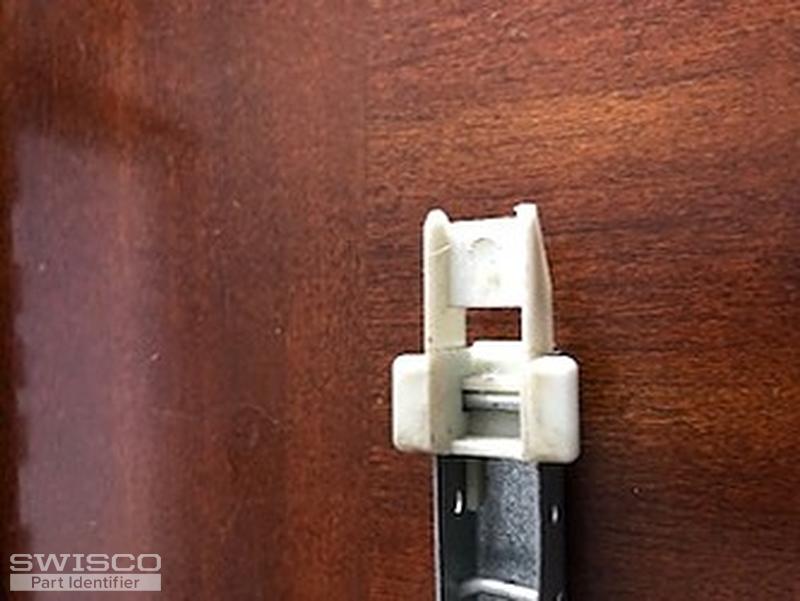

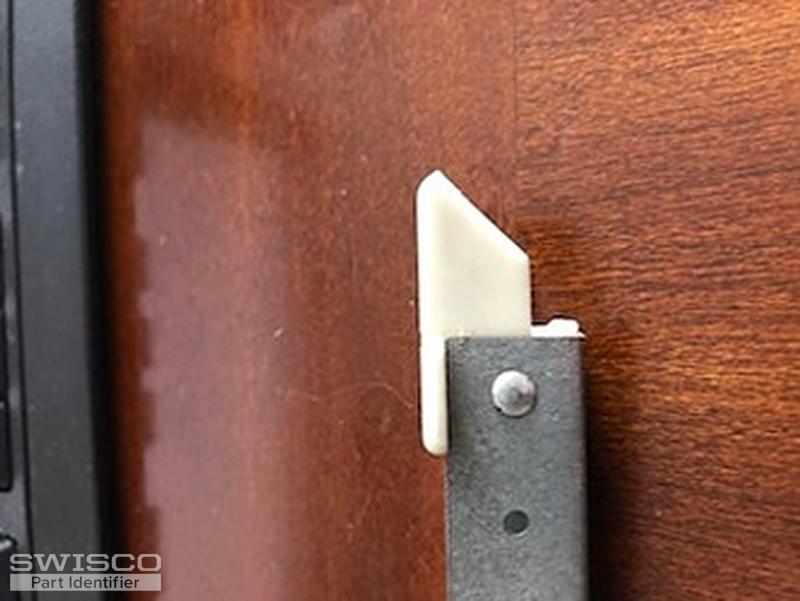

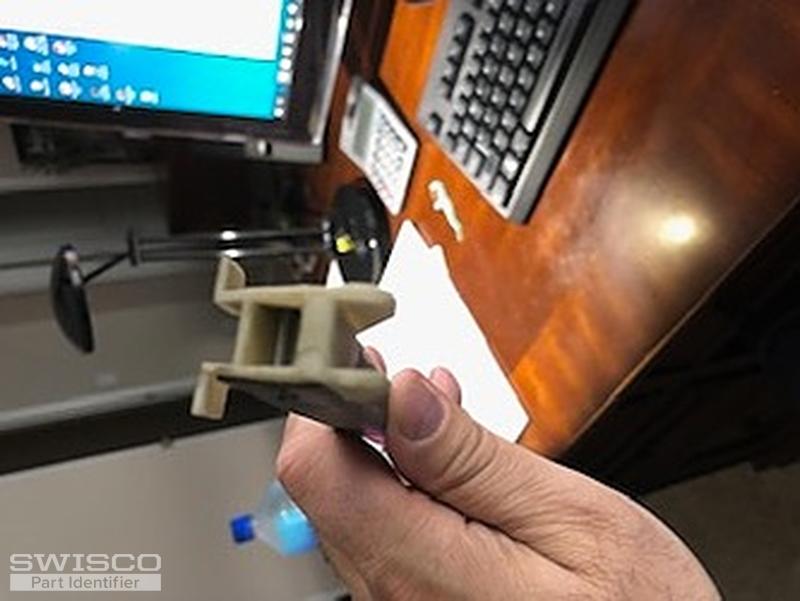

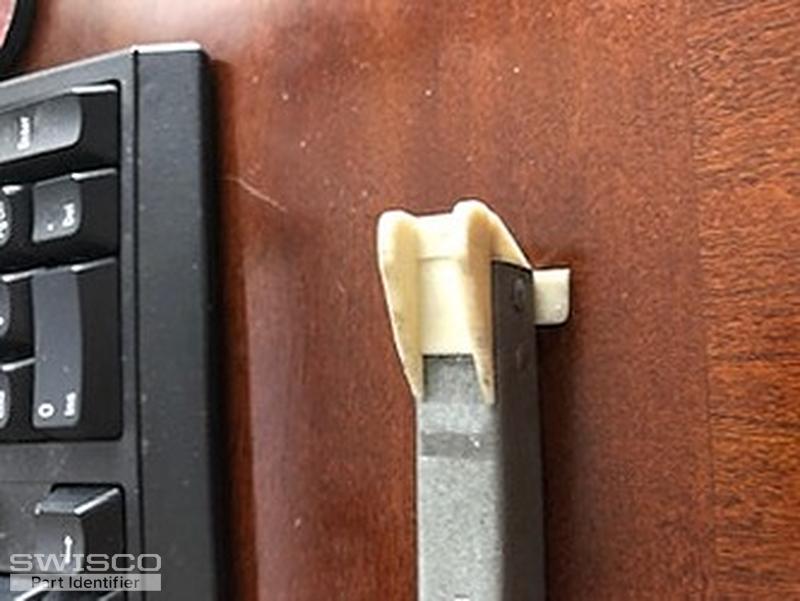

Attached are pictures you requested, and yes the length of the balance is exactly 28 inches.
Thank you very much for your help.
Alex Kuskin
Attached are pictures you requested, and yes the length of the balance is exactly 28 inches.
Thank you very much for your help.
Alex Kuskin
5 user uploaded images
Home Owner from Denver
May 14, 2019 8:12 pm
More pictures
3 user uploaded images
Bob from SWISCO
May 15, 2019 9:29 am
Thank you! This looks very much like our Series 385. This comes with a 19-005 top and 15-004 bottom nylon fitting. As long as those match up to yours then I think it's a great choice.
