Channel balance

Start a new Discussion

Quick Learner

Oct 22, 2020 4:40 pm

I am looking for unique 28-0-40 can you check product code please !

4 user uploaded images

3 Replies

Quick Learner

Oct 23, 2020 4:17 pm

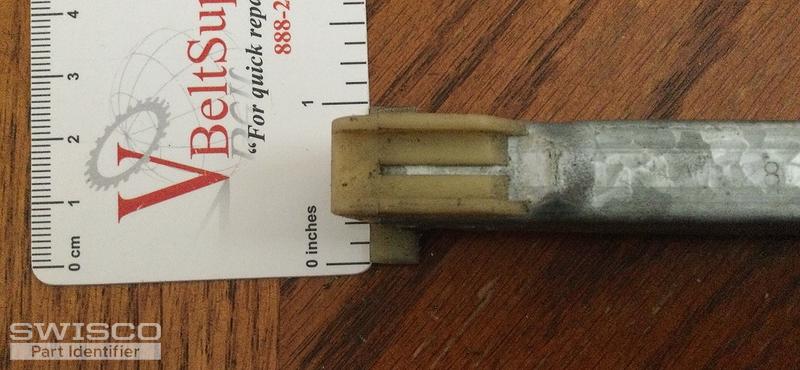

Can you identify my unique 28-D-40 stamp number balance replacement.
width of balance - 1/2"
Length of balance - 29"
Width of shoe - 0.875"

Casey from SWISCO

Oct 27, 2020 1:46 pm

Hello,

Your balance looks like it has wings on both top and bottom attachments. If so, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2840 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
