Channel balance

Quick Learner from California

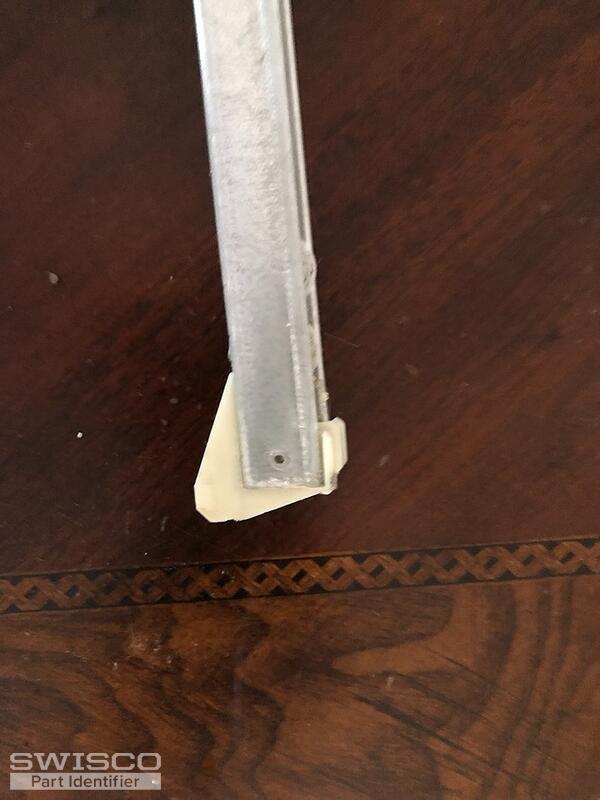

channel balance for non-tilt sliding windows. 26 inch.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. It looks like you have either the S380-26 or S385-26. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

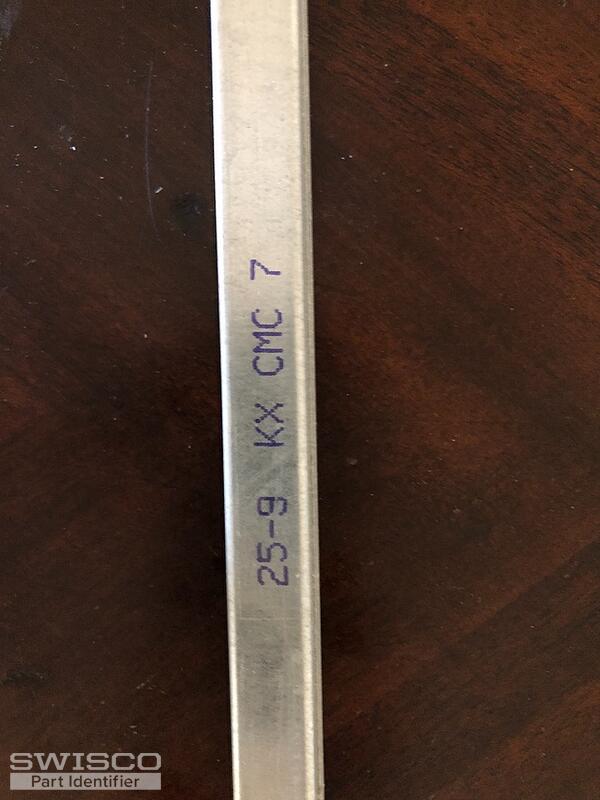

You'll then need to choose a stamp option, which indicates the strength of the balance. Your old stamp of 25-9 is from a rating system we do not use. To know which stamp to select, weigh the window sash that these balances support. You can then match that exact weight with one of the weight ranges listed alongside each stamp option under the product description of the balance shop page.
