Channel balance

Question

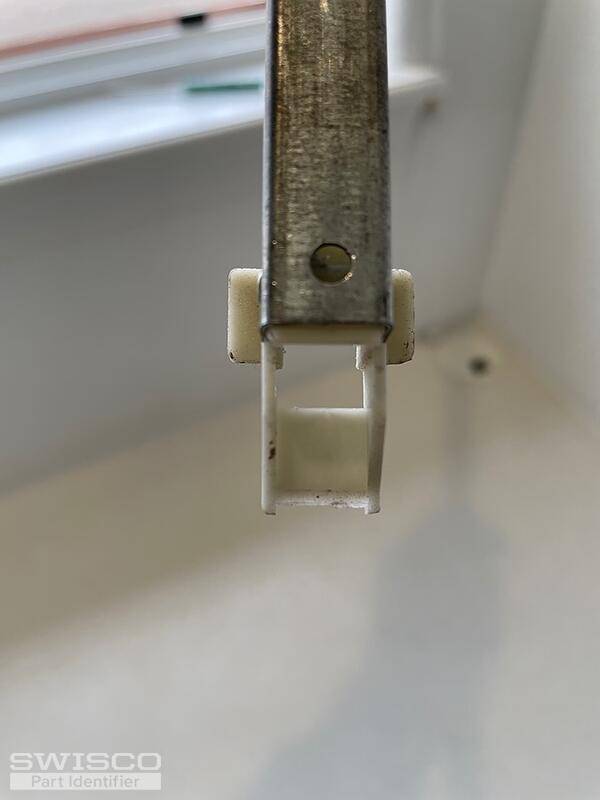

The metal balancer is stamped with "2020".
The length of the metal portion of the balancer is 21".
The u-shaped balancer dimensions are 5/8" in depth (height) and 1/2" in width.
No make or model name on the vinyl windows that were installed in the house 24 years ago (2000).
I would like to purchase two balancers that are compatible with my window.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2020 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
