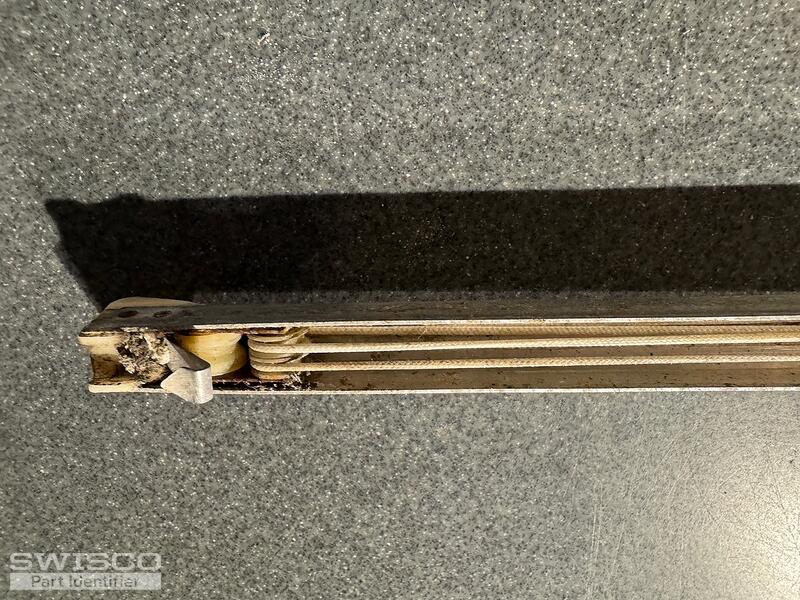

Channel balance

Quick Learner from Jupiter, Florida
27" x 5/8" x 5/8"
Weight 16.4 pounds

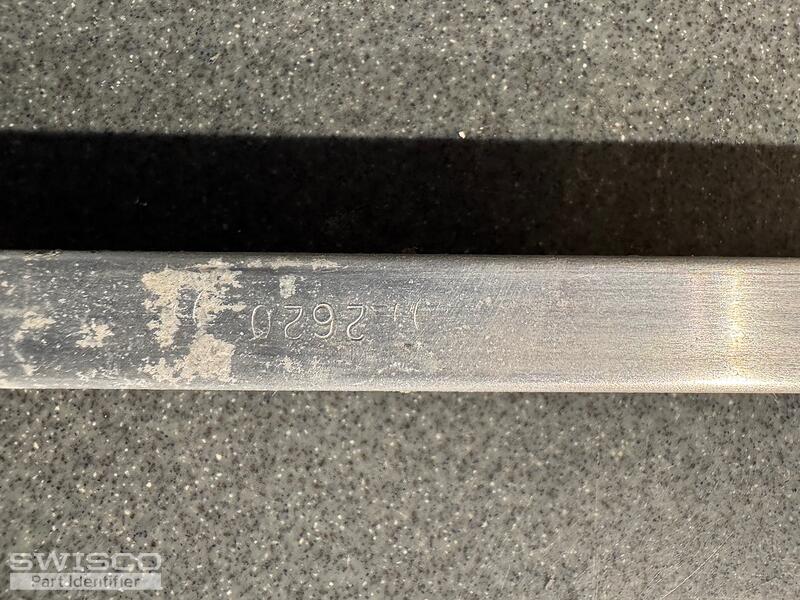

Stamp 2620
5 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks like either an S351-27 or S390-27. The only difference between these two channel balances is the bottom shoe depth. See the image below. Measure your old balance's shoe to see what matches best. For a stamp option choose 2620. Let me know if you have questions.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Quick Learner from Jupiter, Florida
Thank you for the comments and answers. It's 1 1/8.

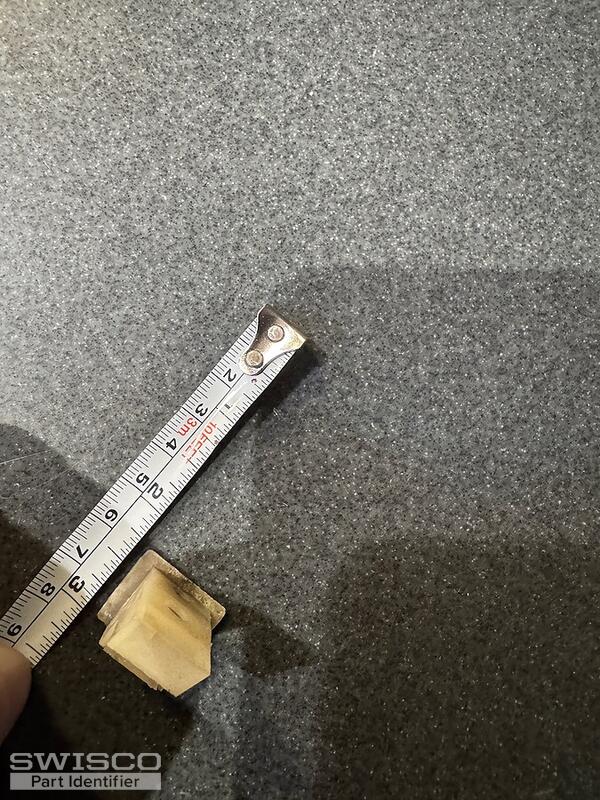

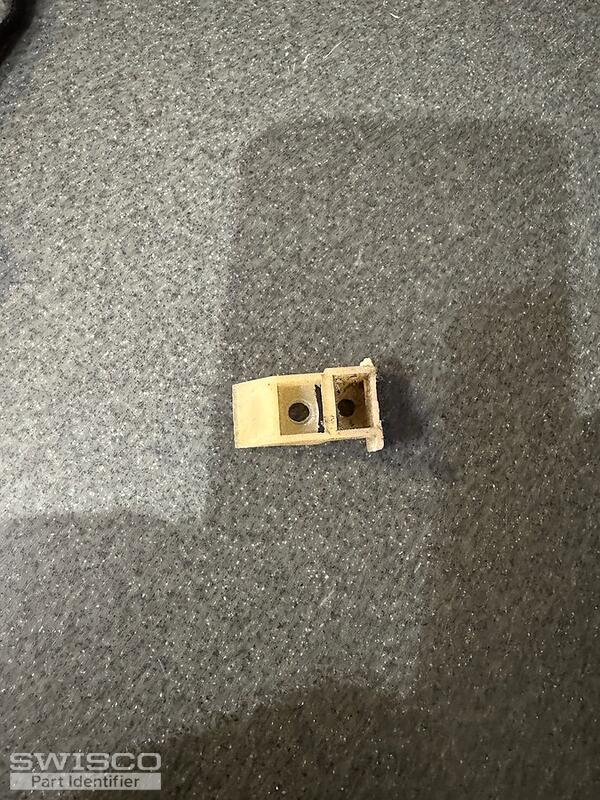

I have another question there's a piece of plastic that goes at the top of the movable window frame

It screws in with one Phillips head screw

Do you know what it's called?

Do you all sell it?

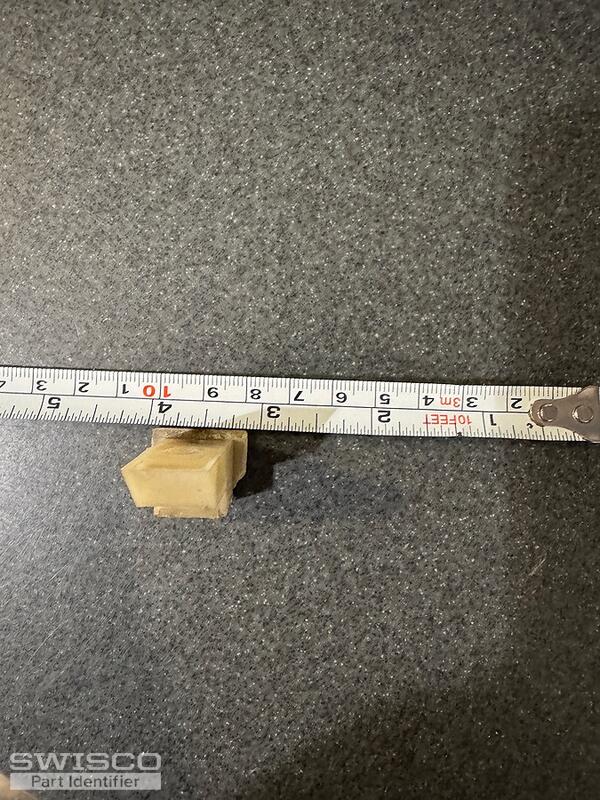

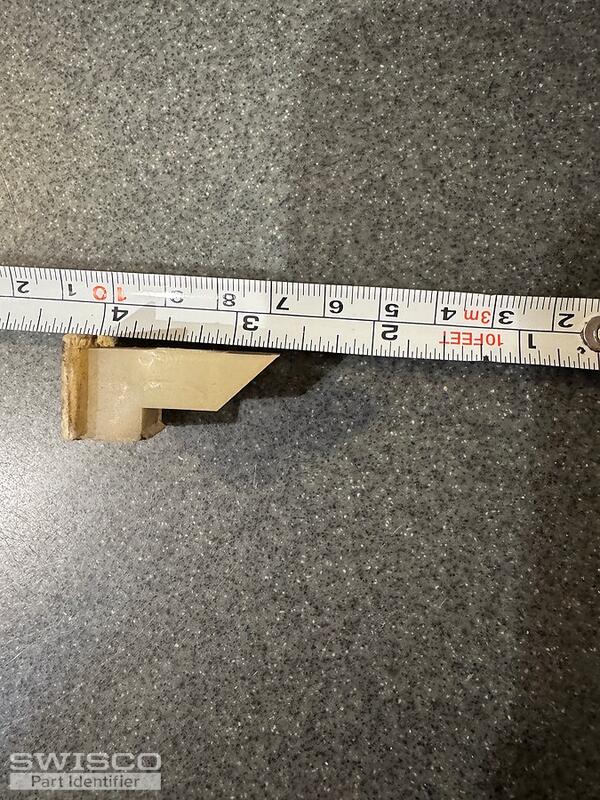

It's one and 3/8 tall. By 5/8 inch wide.

The top is 7/8 by approximately 3/4

4 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Yes. This is called a Top Sash Guide. I believe this is either the 18-009 or 18-166. Compare both with your old guide to see what matches best.

Side view of 18-009
Side view of 18-009
Detail of 18-009
Detail of 18-009
Profile view of 18-166
Profile view of 18-166
Detail of 18-166
Detail of 18-166

Quick Learner from Jupiter, Florida
Thank you I just placed. The order.
Bob
Bob from SWISCO
SWISCO
Expert

Great! Let us know if you need anything else.
