Channel balance

A quick learner from Cape Coral says:
December 3, 2016
I need to replace a 28D - 29" long and 1/2" channel. Can you help? Thank you.

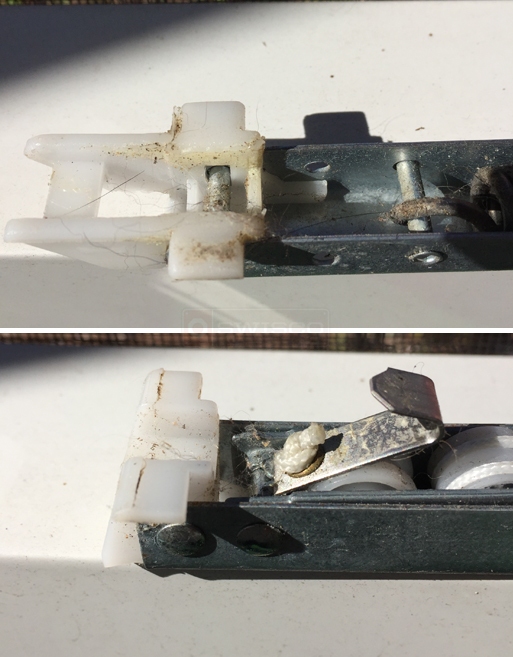

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 6, 2016
Sure, I'm pretty certain we can help. The best replacement balance will depend greatly on the nylon caps on either end. The top one in your first picture seems to match our 19-005, but I'm not so sure about the bottom one. It could be either our 15-004 or 15-005, depending on its depth. You'll need to measure yours and refer to our dimensions to confirm the better choice.

If it's the 15-004, then I recommend our S385-29. If it's our 15-005, then I would recommend our S380-29. I would also recommend the 2840 option in either case, though you may still want to weigh your sash just in case.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
Winged Channel Balance Shoe, 1" Depth
Winged Channel Balance Shoe, 1" Depth
15-005
$0.74
Winged Channel Balance Shoe, 1-3/32" Depth
Winged Channel Balance Shoe, 1-3/32" Depth
15-004
$0.74
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
