Jasmine from SWISCO responded:
December 12, 2023

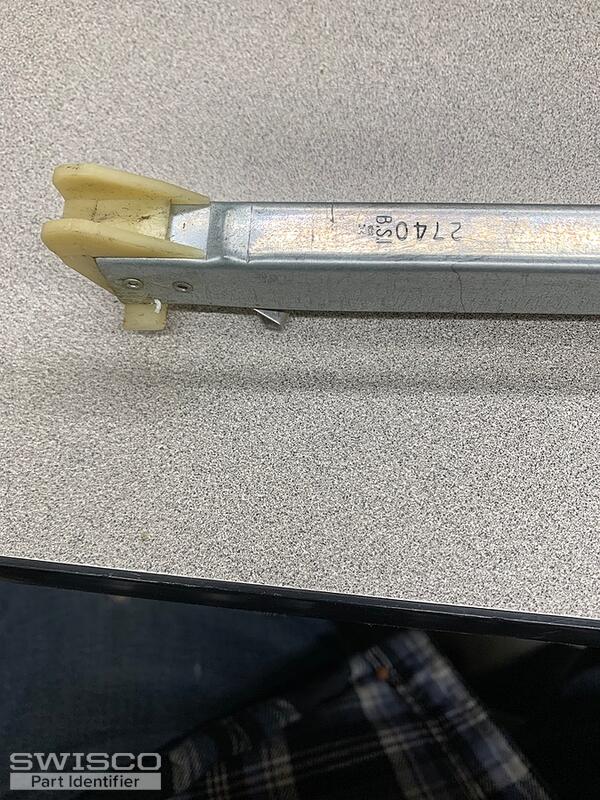

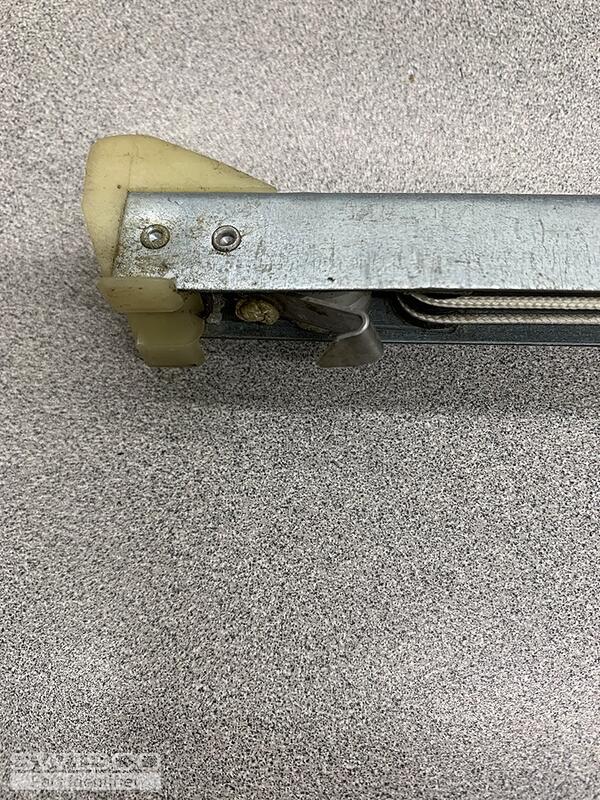

Thanks for writing in! Your channel balances are either the S380-28 with a 1" shoe or the S385-28 with a 1-3/32" shoe. You'll need to select the 2740 stamp option. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Keep in mind, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly. Comparison of the S380 and S385 balance shoes.
|
