29-C-30 Channel balances 19/06/01

Start a new Discussion

Quick Learner from USA

Sep 12, 2017 1:36 pm

For tilt windows

8 Replies

Paul from SWISCO

Sep 15, 2017 11:43 am

The company that made your balance is no longer in business. Without seeing the clip at the end of the balance cord or the length of the metal channel, I'm guessing you need our S770-30 balance for tilt windows with a 15-043 clip attached. The spring weight for 29-C-30 is 19 through 24 pounds, so use 30C. Let me know if that will work for you.

Contractor from Evansville, IN

Sep 15, 2017 12:25 pm

Thank you Paul.

I need a pair for 2 windows. Please let me know pricing and what next steps are.

Thank you,
Ryan

Paul from SWISCO

Sep 15, 2017 1:12 pm

You can see all pricing and information regarding this balance on the store page to which I linked you. We have detailed information and pictures that you can use to confirm that this is the right match. You can also use this page to place your order, if you want to go that route.

Quick Learner from Evansville, IN

Sep 18, 2017 1:18 pm

Good Morning!

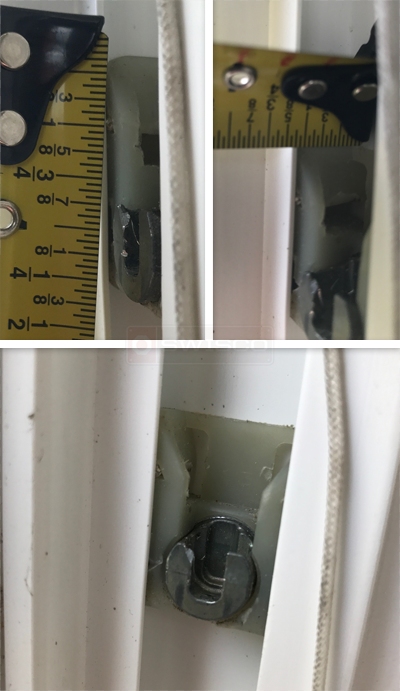

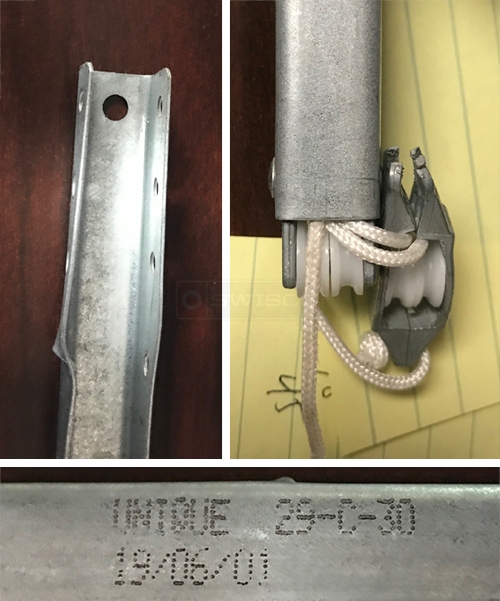

Attached are 3 pictures of, what I believe is the clip.

The length of the channel itself is 30 in.

Does this help?

Thank you,
Ryan

Paul from SWISCO

Sep 21, 2017 12:17 pm

Aha, I see. This shoe helps clear up a lot. This balance will have to be custom made, due to the design of your shoe. I was right in naming the S770-30, but the bottom clip needs to be swapped out for a 62-105 hook. Can you just tell me how many you need?

Quick Learner from Evansville, IN

Sep 21, 2017 4:09 pm

I have 2 windows that are not working and each window has 2 balances. So 4 total??

Could you give me an idea on price and approximate delivery date? Not in a huge rush, but needing to let our customer know.

Thank you Paul,
Ryan

Tom from SWISCO

Sep 26, 2017 12:24 pm

Sure thing, I'll email you a price quote and order link right now.
