Channel balnce,, pIvoy shoe and pivot bar

Quick Learner from New Jersey

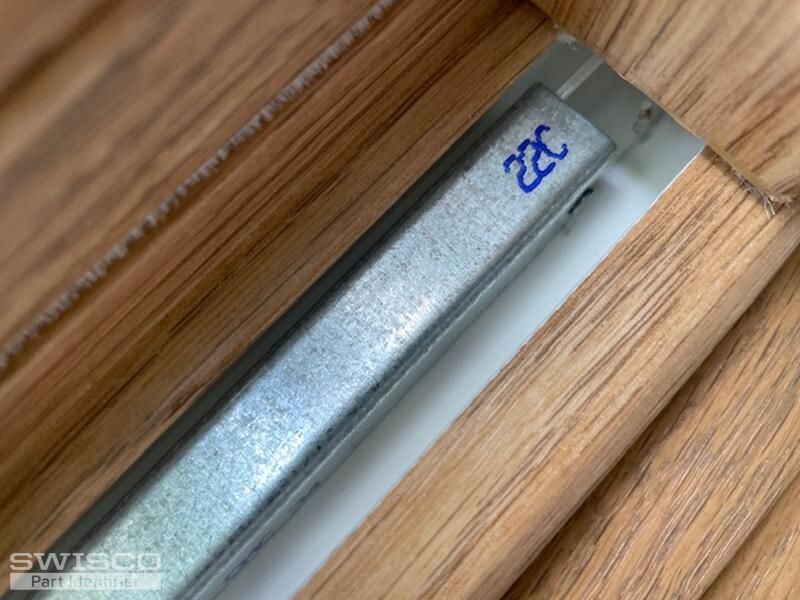

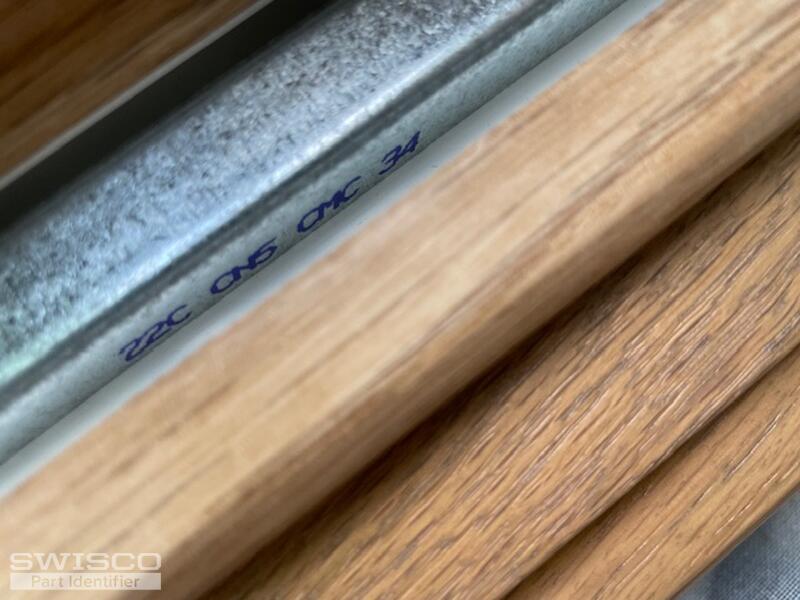

I'm tryong to get part numbers for the following for an Sunrise/MI restoration window. Also are the pivot bars/pins supposed to be angled as in the picture? The Balance say 22C Thanks Ron
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Ron,

Thanks for posting! Your channel balance can be replaced with the S770-22 Channel Balance with a 22C stamp option. This balance is compatible with the 15-129 Pivot Shoe. I am confident this is the shoe you need but you'll want to remove the shoe and double check the dimensions to confirm.

Detail of 15-129
Detail of 15-129

It is not very likely that your pivot bar should be bent in this fashion. It appears to be damaged and would probably need to be replaced. The pivot bar we typically recommend with this shoe is the 26-021 but you'll need to be sure to compare the dimensions to determine if this is the right replacement.

If you are unsure, I'm happy to take a look at the pivot bar. I'll just need to see a photo of it removed from the bottom of the sash.

Alternate image for 26-021
Alternate image for 26-021
