Channel replacement

Home Owner from Davenport florida

Feb 3, 2024 12:10 pm

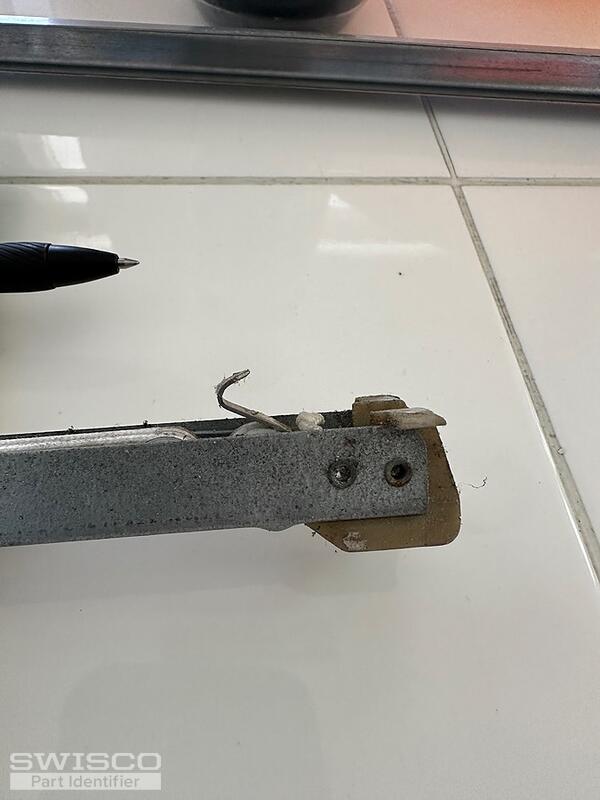

On one side there is the number 28C USB but the spring is connected to a pin hole shorter than on the other track that as no number in it ( see photo attached with side by side pics ) . The metal Channel is 29 ? long and it's for 51 inch windows , I have 7 windows that I need to fix .

4 user uploaded images

6 Replies

Jasmine from SWISCO

Feb 5, 2024 12:57 pm

Thanks for reaching out! Your balances look a like our S380-29 with a 1" shoe. Although, there is a chance that it could measure 7/8". If so, please let me know as these will need to be a custom assembly.

You should be able to use the 2830 stamp option for your 28C stamp, but you may want to double check that your sash weighs between 16 to 23lbs.

Close up view of the S380 balance shoe.

Home Owner from Davenport florida

Feb 5, 2024 1:50 pm

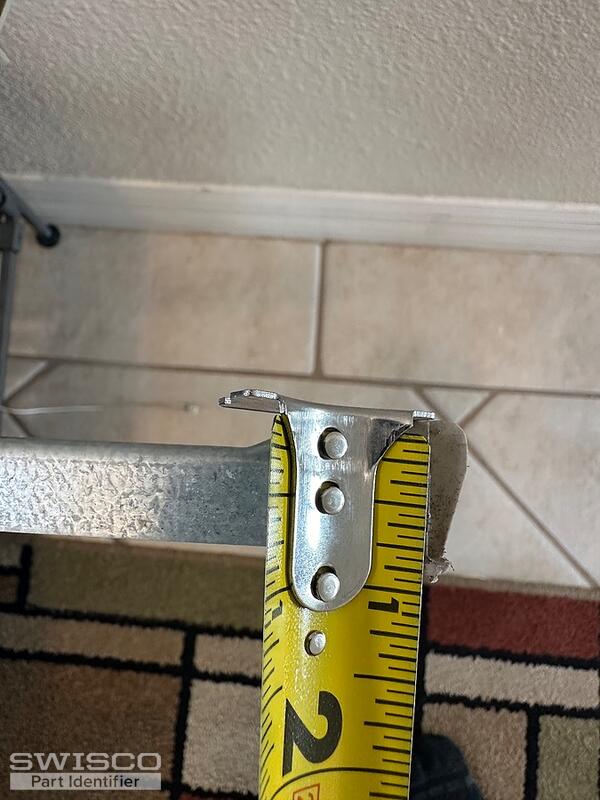

Hello , tank you for your response, the shoe measures 7/8 to 15/16 .
Tank you

1 user uploaded image

Jasmine from SWISCO

Feb 5, 2024 2:55 pm

I'm happy to help! Thanks for confirming this information. I have the order link made up for you but before sending it over, I just wanted to confirm, are you looking for 14 balances, all the same stamp and size? If not, I'll need to know the size and stamp (or sash weight) for each different balance.

Please let me know if you have any questions.

Home Owner from Davenport florida

Feb 5, 2024 5:06 pm

Correct, I am looking for 14 balances for the same stamp and size

Tank you

Jasmine from SWISCO

Feb 6, 2024 8:56 am

Thanks for confirming! I've forwarded the link with the quote for the requested balances. You'll be able to use this link to review the quote and place the order from your online cart.

Please let me know if you have any questions.
