Channel slide for Milgard window : SWISCO.com

Home Owner from Maui

Sep 27, 2025 7:36 pm

Window is 20h x 24w
glides are 20" not including plastic catches on top and bottom. Glides are ½ inch wide and deep. Need four glides.

1 user uploaded image

5 Replies

Bob from SWISCO

Sep 28, 2025 11:25 pm

Hello there. We likely can replace these channel balances, but that stamp is not an identifier. It just tells us the strength of the balance. We'll need you to remove these and show us clear photos of the nylon attachments on both ends. We will also need to see the 'guts', or other side of the metal channel. We should be able to narrow this down from there.

Home Owner from Maui

Sep 30, 2025 10:20 pm

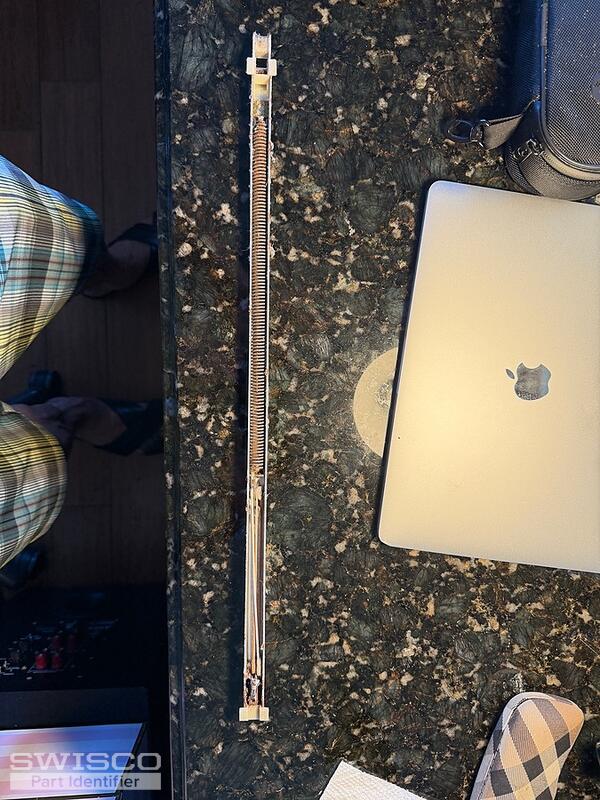

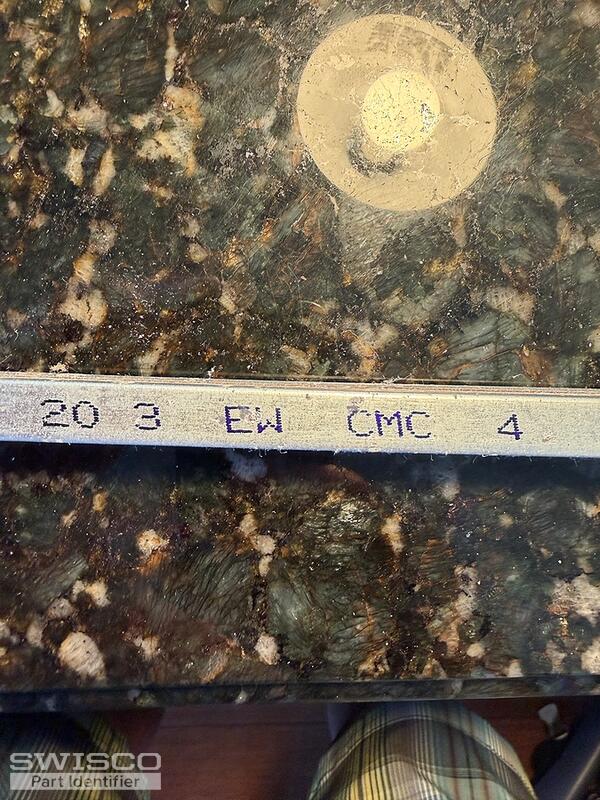

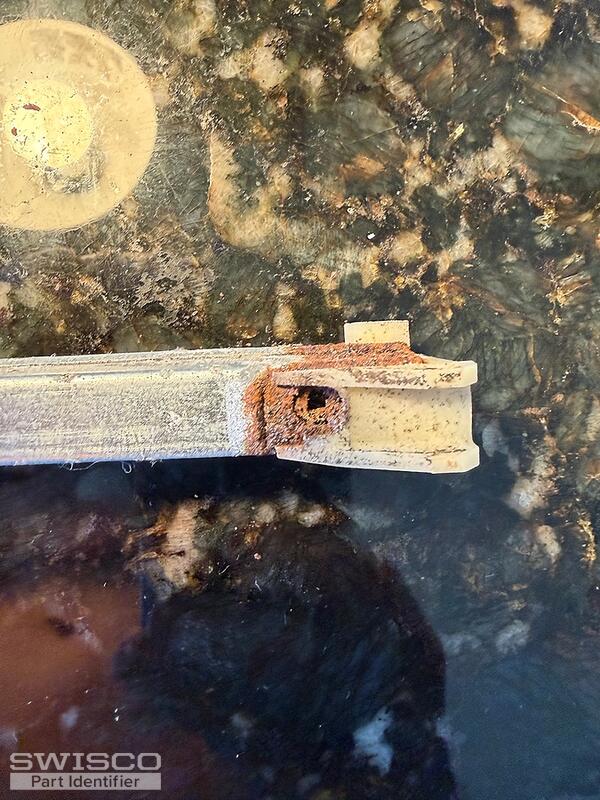

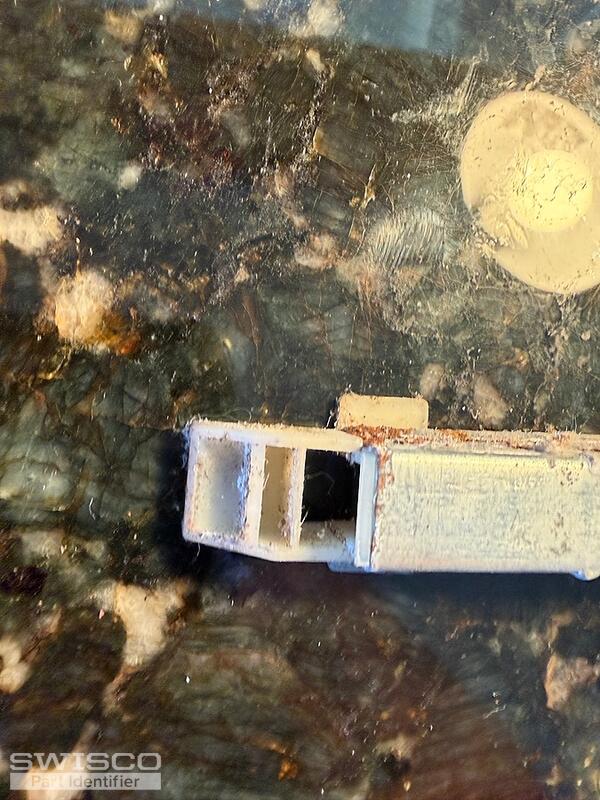

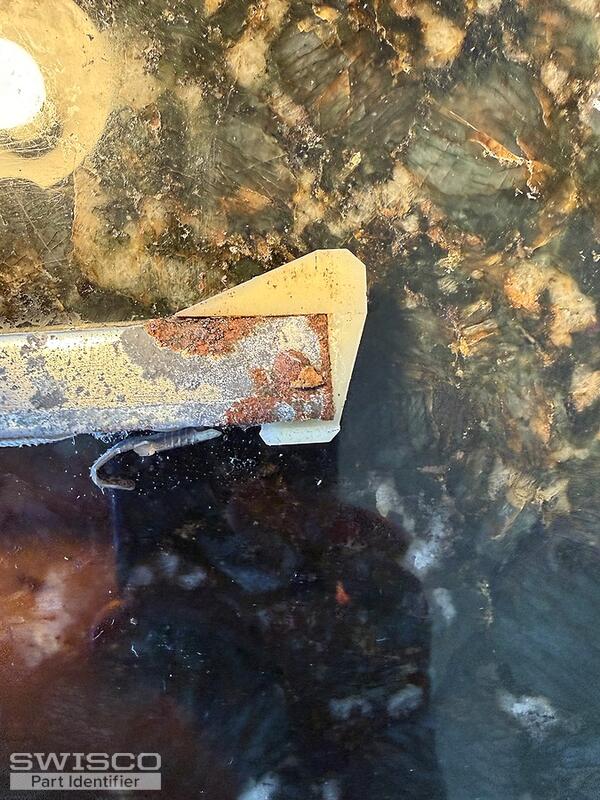

Here are some photos as requested.

5 user uploaded images

Home Owner from Maui

Sep 30, 2025 10:21 pm

one more photo- guts of the channel balance, see attached.

2 user uploaded images

Bob from SWISCO

Oct 1, 2025 3:42 pm

Thanks for getting back. This looks like either a S380-21 or S385-21. The only difference between these two balances is the 'depth' of the bottom nylon shoe. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2030.

Comparison of the S378, S380 and S385 balance shoes.
