A home owner from Florida says:

Please help in choosing the right one. I need 6

Thanks

Georgi

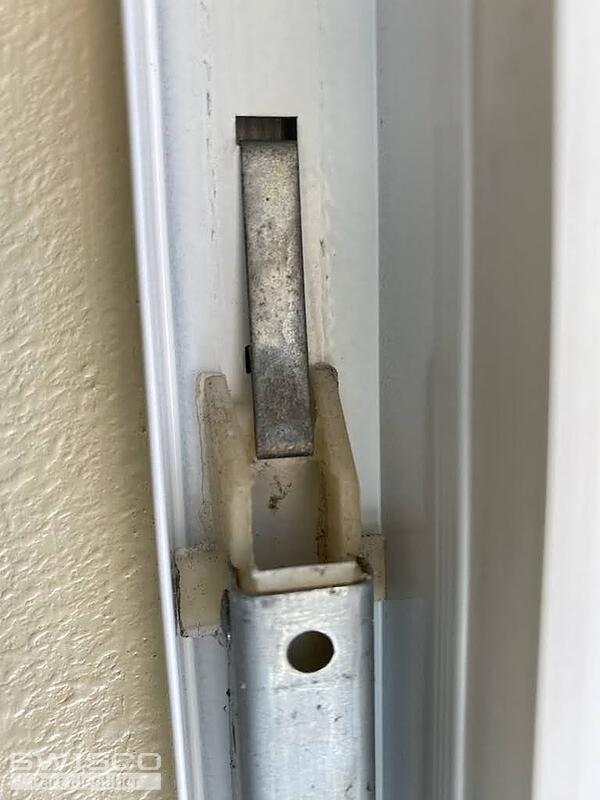

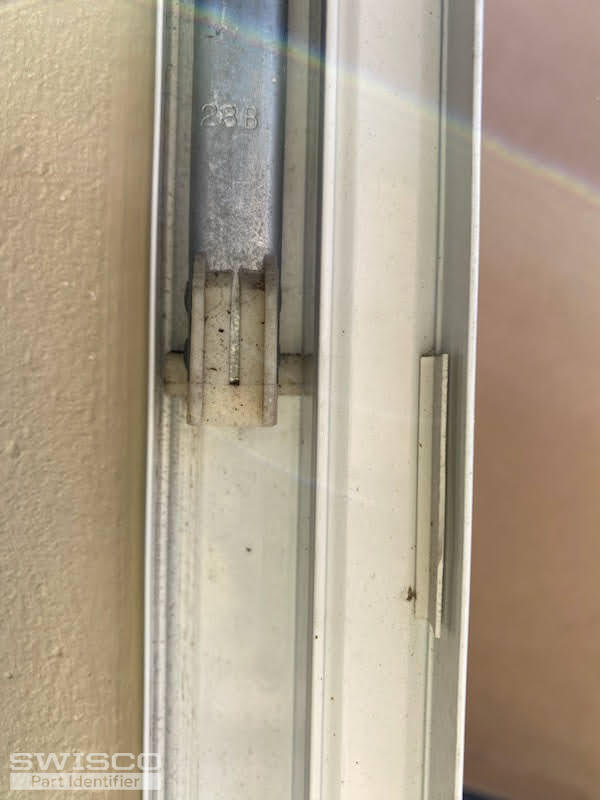

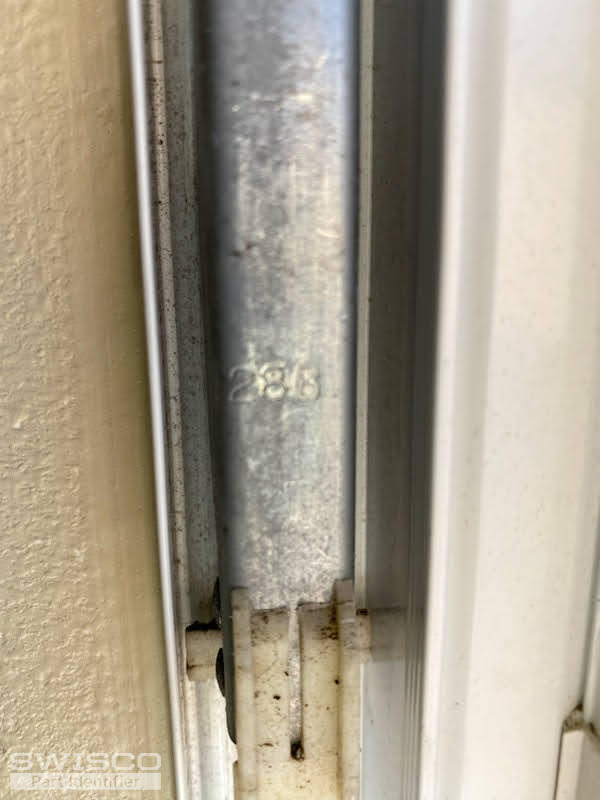

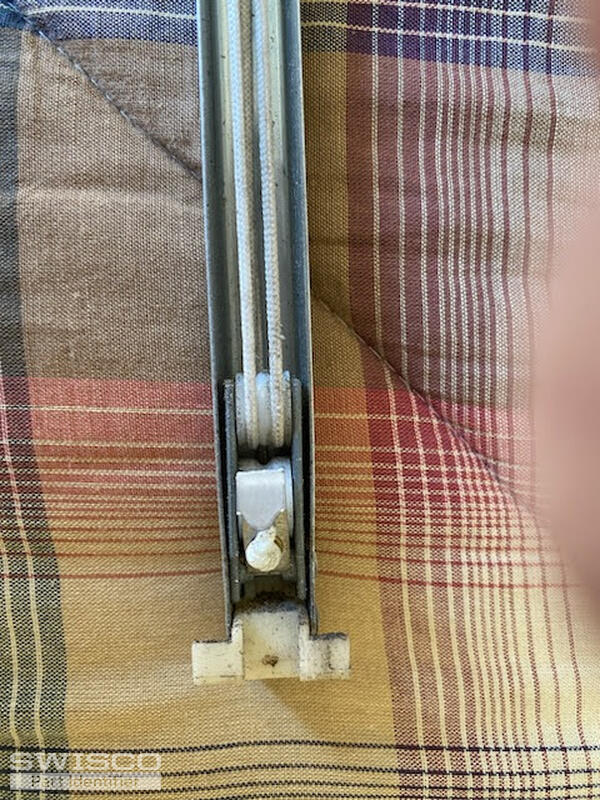

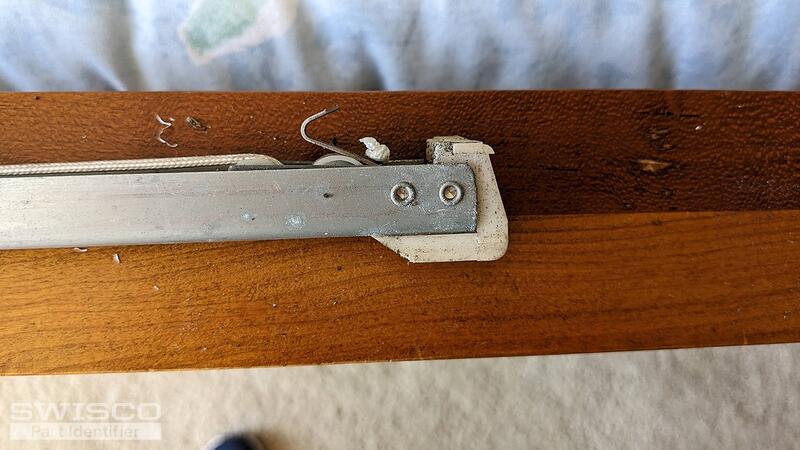

Thumbnail of the uploaded file named win1.jpg
Thumbnail of the uploaded file named win2.jpg
Thumbnail of the uploaded file named win3.jpg
Thumbnail of the uploaded file named win4.jpg
Thumbnail of the uploaded file named win5.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S380-29 or S385-29, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

A home owner from Florida says:

received these but they do not fit. I cannot get the sash back in mainly in the bottom...I think it should be the 7/8 (15-029) Shoe....not the 1 inch

you gave me a choice of 1" or 1 3/32 "

Please advise
Thumbnail of the uploaded file named win6.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm sorry to hear about the inconvenience. When you measured your shoe to begin with, what size did you get? Right now your next step should be to verify its precise depth. Your photo unfortunately doesn't show me the difference between sizes, since you're showing just the underside of each shoe.

We can make a balance for you with the 15-029 bottom fitting but it will have to be a custom order.  But you have to measure your shoe to be 100% sure. If your shoe size is different than our suggestions then you need to let us know so that we can pursue other options. We only know the information you tell us.
