Coil Balance

A home owner from Alexandria VA says:
October 23, 2022
I need a window coil balance complete set right and left and two pivot bars see attached photos
can you help me in picking up the right parts? thanks
Thumbnail of the uploaded file named IMG_5247.JPG
Thumbnail of the uploaded file named IMG_5279.JPG
Thumbnail of the uploaded file named IMG_5309.JPG

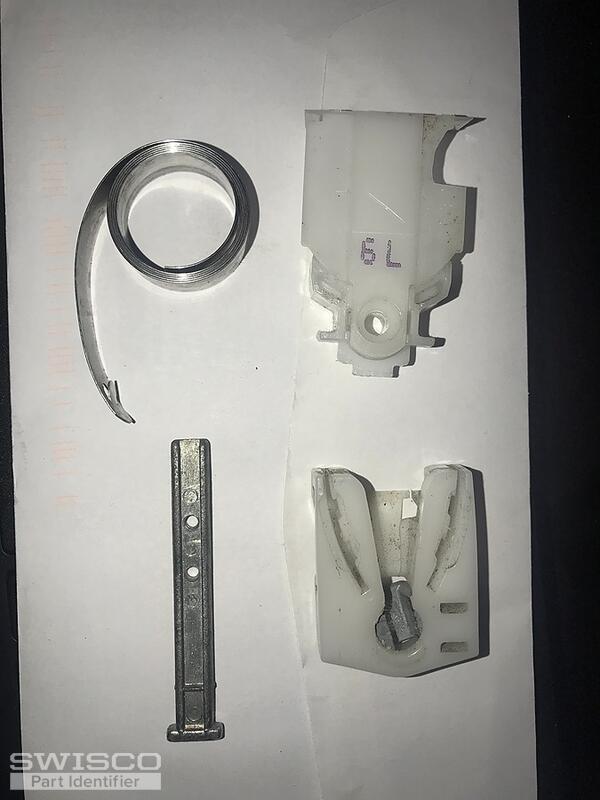

Thumbnail of the uploaded file named IMG_5310.JPG

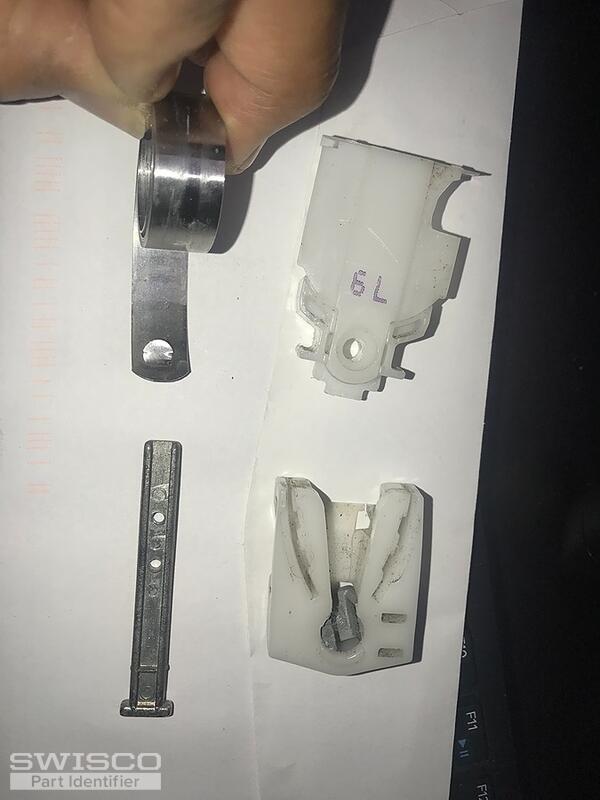

Thumbnail of the uploaded file named IMG_5311.JPG
Profile picture of Tom
Tom from SWISCO responded:
October 27, 2022

Your balance appears to be a match for our Series 140. Look it over and let me know if you agree!

Alternate image for S140-6
Alternate image for S140-6

As for the pivot bar, our balance is meant to go with two designs: either the 26-398 or 26-405. These are a little different from yours but as long as at least one of the screw hole positions lines up then one of them should work fine.

Detail of 26-398
Detail of 26-398

Alternate image for 26-405
Alternate image for 26-405
6 lb Series 140 Quick-Tilt, Single
6 lb Series 140 Quick-Tilt, Single
S140-06
$7.59
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
