Quick Learner from Westchester County NY

Oct 18, 2023 6:02 pm

Please let me know if you have these parts for both sides and any other parts I might be missing.
Thanks

3 user uploaded images

4 Replies

Casey from SWISCO

Oct 19, 2023 1:11 pm

Hello,

Your balance assembly resembles the S140 shown below depending on how the dimensions compare to yours. The 5R on the cover indicates that you would need the S140-5 to support a sash between 9-10.99 lbs. Take a look and compare the dimensions below to your assembly. Thank you!

Alternate image for S140-5

Quick Learner from Westchester County NY

Oct 19, 2023 2:47 pm

Hi Casey,

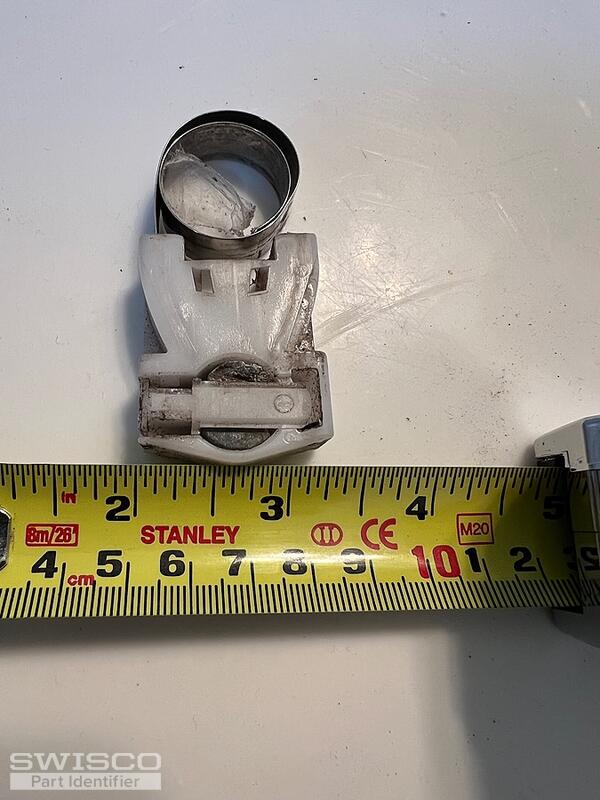

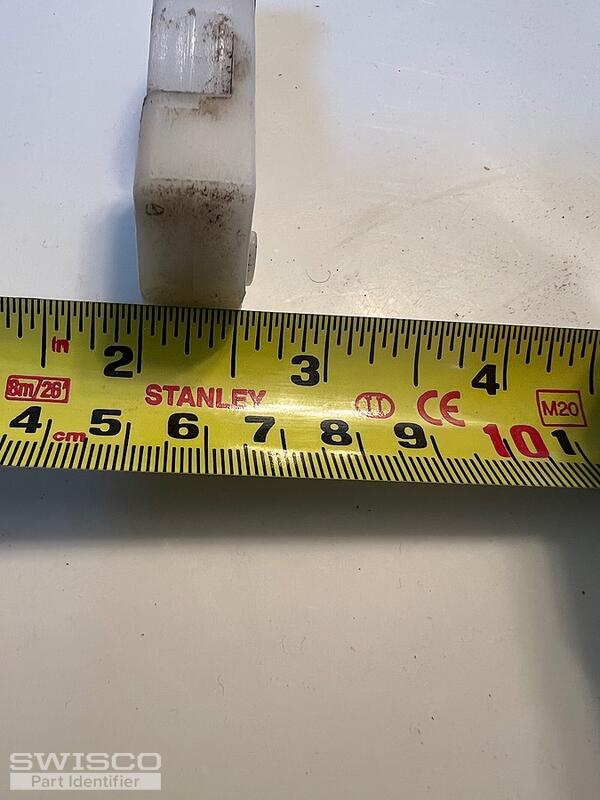

The 1-1/4" is correct however the depth looks like 1/2"
Please see photos
Thanks

2 user uploaded images

Casey from SWISCO

Oct 20, 2023 9:39 am

It's tough to make out exact dimensions from photos but it does look like your shoe may be a hair over 1/2" thick. I'd recommend double-checking your measurement since we do not carry a version of this part that measures exactly 1/2" thick.
