Coil Balance Shoe and Coil

A home owner from New Jersey says:
November 6, 2017
Hi,
Looking to find out what replacement shoe I need as well as the coil. Coil is stamped "644" I believe. Sort of hard to tell but I provided the best picture I could muster of it.

Thanks!
- Brian

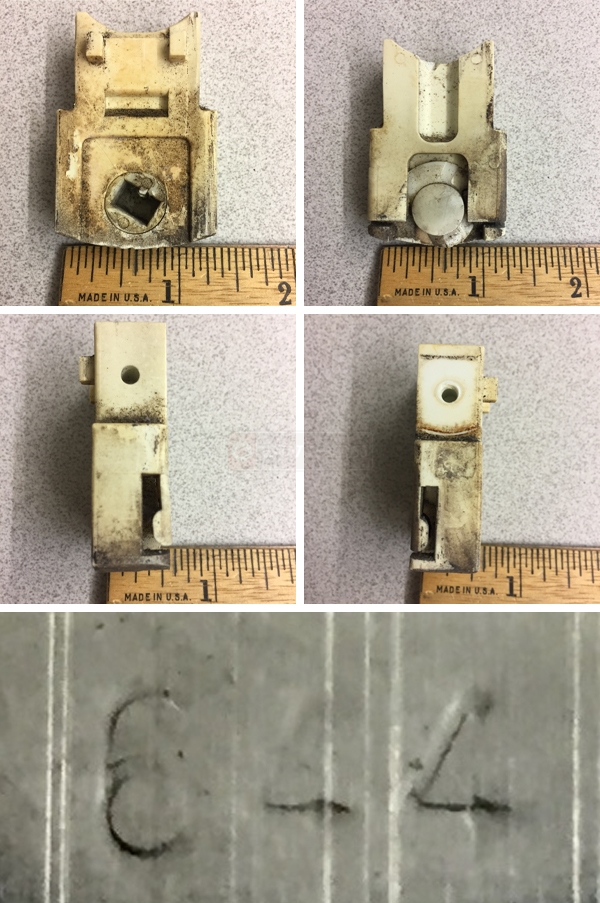

User submitted photos of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
November 10, 2017
Hey, Brian. Your old pivot shoe has been discontinued, but I believe our 15-180 will replace it. From your photo, I recommend our S190-840. Each of these can carry 8 pounds, so having one on each side of the window will carry a 16 pound sash.
Profile picture of Paul
Paul from SWISCO responded:
April 18, 2019

Hi Brian. Always happy to hear such great feedback, even if it's a year later! Thanks very much for considering our business, it means quite a lot. If you have any other inquiries, do not hesitate to ask.
A home owner from New Jersey says:
April 18, 2019
I know it's been about a year and a half since I asked this question and Paul answered it but I just recently got around to ordering the parts Paul suggested and wanted to say they worked out great. I have a working window again! The only thing I changed is the coil. Since my sash only weighed 10lbs I went with two S190-640 coils instead of the S190-840.

Thanks for the help!
