Coil Balance Shoes and Pivot Bar

A quick learner from Collegeville, PA says:
August 24, 2022
Old windows. No identifier anywhere.
I need to pull the existing corroded Pivot Bar to see what size, etc. However, looking to replace the coil and 2 other pieces needed in the pictures. Lack of knowledge to name each part. Sorry.

Thank you

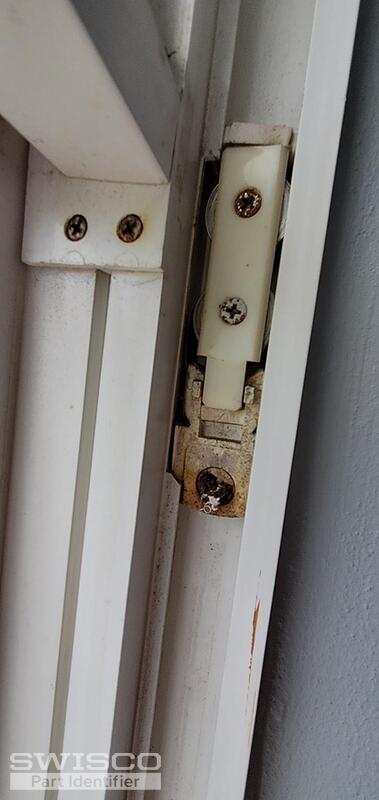

Thumbnail of the uploaded file named 20220821_103741.jpg

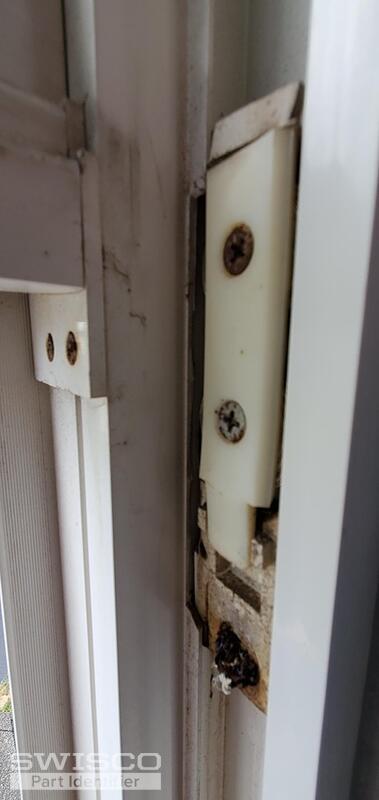

Thumbnail of the uploaded file named 20220821_103730.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 25, 2022

Hello! We can help you replace all of these parts, yes. Starting with the coil balance assembly, you have an older style pivot shoe that can be replaced with our more modern 15-180. We also sell the 15-181 clip, 15-182 bushing, and Series 190 coil spring.

The pivot bar is too damaged to make out but I would wager it's a match for our 26-040.
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
