Coil Balance flange & bushing

A quick learner from Colorado says:
March 3, 2023
Need new coil spring flange. And bushing W/roller.

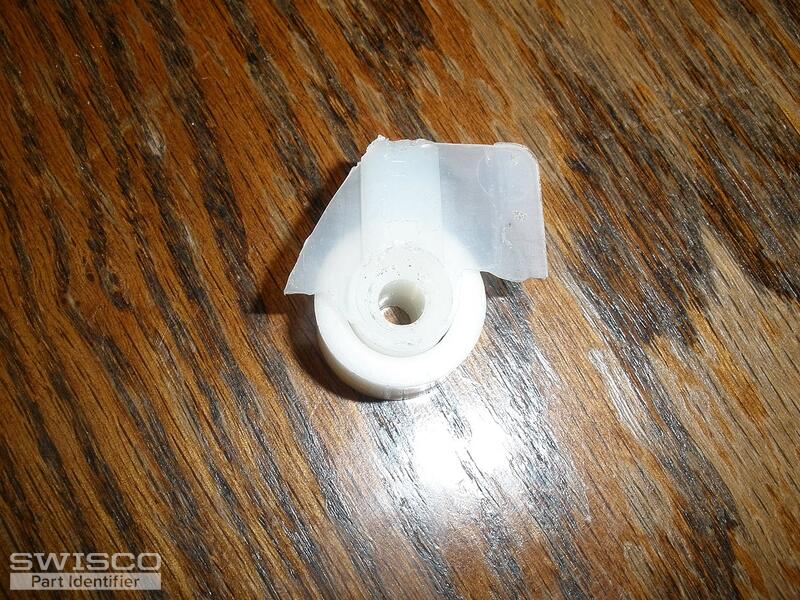

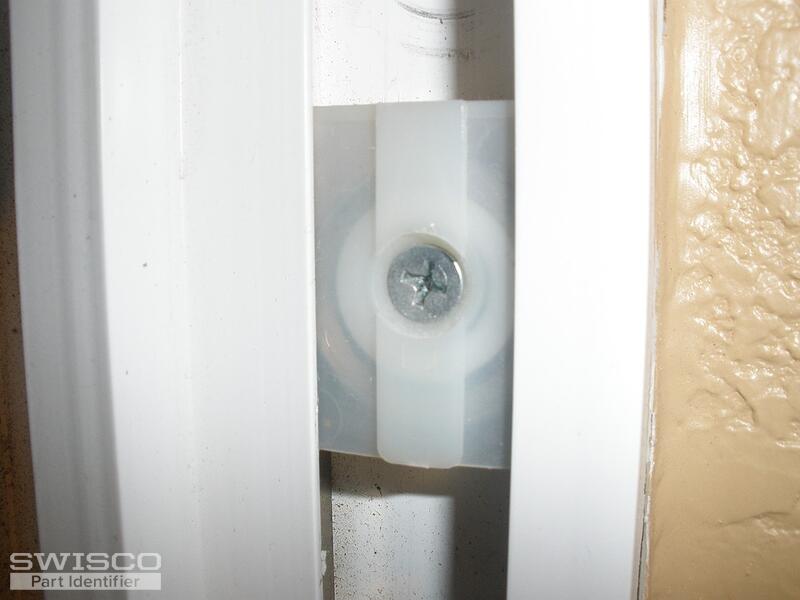

Photo 0069 is old broken flange W/roller - Photo 0070 is how it should look. There is a "B" stamped on the out facing side of the flange if that is off assistance.

THX U
Thumbnail of the uploaded file named P1010069.JPG
Thumbnail of the uploaded file named P1010070.JPG
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 6, 2023

Thanks for reaching out. Your cover and balance drum look familiar, however, to confirm the exact replacements, I'd like to see a photo of the coil balance shoe. It is best to see the shoe removed from the window.

You'll also need to confirm if there are any stamps/markings on the metal coil.
A quick learner from Colorado says:
March 6, 2023

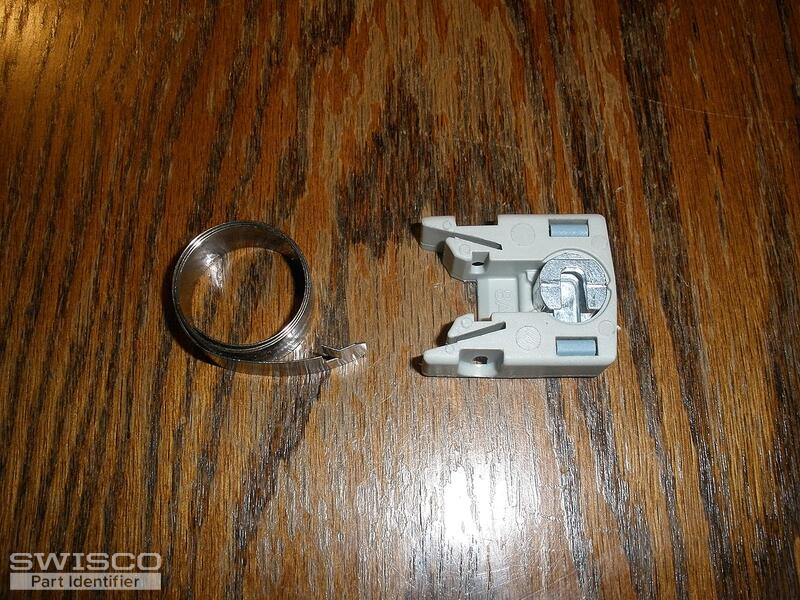

Coil spring has a stamp. "8". The shoe is one of yours a 15-177. I have extra 15-177 - need the roller assembly with flange. - the roller is keyed into the flange plate - I cannot remove it. The coil spring is easily removable. But the flange, & roller barrel are one integrated piece. If that helps.

THX U
Thumbnail of the uploaded file named coil balance spring with shoe.JPG
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 7, 2023

Thanks for the photos. We do not have an exact replacement for the cover and bushing you have pictured. Although, I am sure the hardware we do have will work well as a replacement.

Take a look at our coil bushing, part 15-143; the coil bushing cap, part 15-144, as well as the coil support barrel 15-145. I've include the dimensions below for the coil bushing and the coil bushing cap. Take a look and see what you think.

(Dimensions for coil bushing 15-143)

Detail of 15-143
Detail of 15-143

Profile view of 15-143
Profile view of 15-143

(Dimensions for coil bushing cap 15-144)

Profile view of 15-144
Profile view of 15-144

Detail of 55-144
Detail of 55-144
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
