Coil BalanceS

The channel opening 3/4"
Please see pictures



Thanks for posting! The attachment connected to your balance spring appears to be a hook like the 62-105 Heavy Duty Point Hooked. That said, the replacement for this would need to be a custom assembly. If you are looking to replace them in addition to the shoes, I'll need to see a photo of the balance channel, the stamp from the channel, and any attachments on the top of the balance. I'll also need to know the length of the metal channel.
Your pivot shoe can likely be replaced with the 15-208 Pivot Lock Shoe but you'll need to remove your existing hardware to get an accurate measurement. There are a few video tutorials tagged below to use as references for removing the shoe.

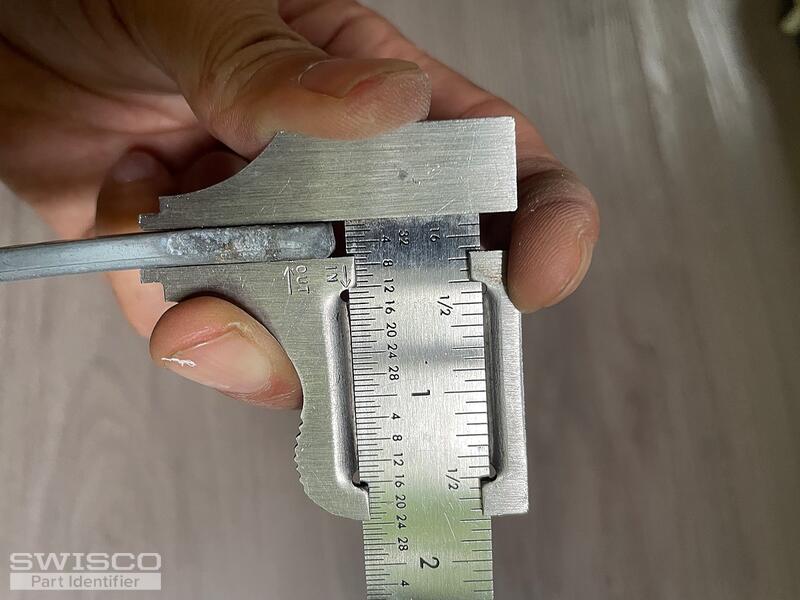

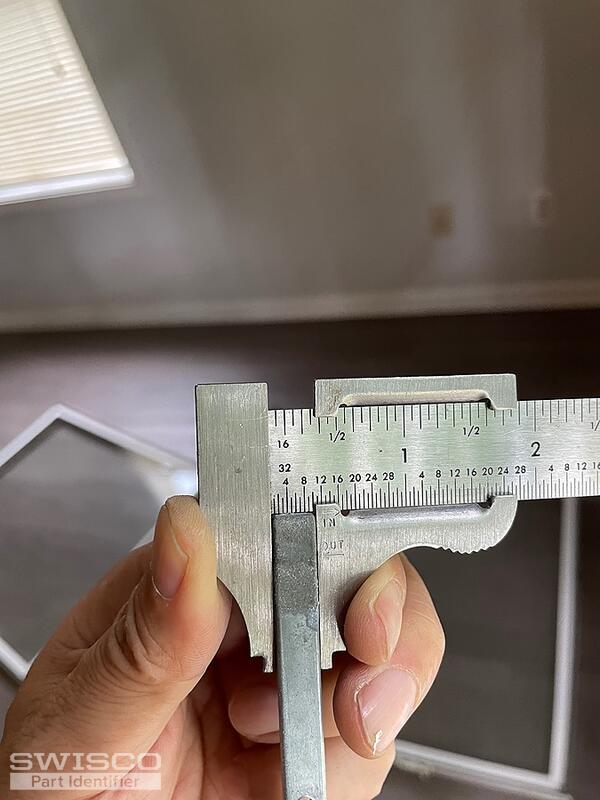

Thank you so much for your information. What if I need only replace the shoes? Do I need to use different point hook than the original ones? Also, I attached a few pictures of the pivot bar. Could you please help me to find it? I guess the the pivot bars will have to match the shoe opening as well.thanks
Best regards!



No, you would not be required to replace them. I only suggested that you would need to provide the information regarding the balances if you were considering replacing them.

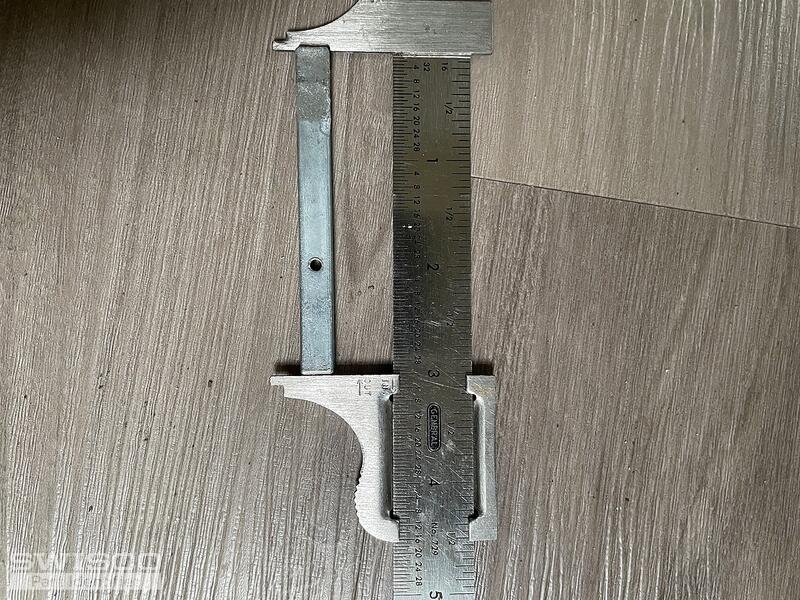

Regarding the pivot bar, can you please confirm the dimension for the distance to the installation hole? This should be measured from the end that sticks into the shoe to the center of the installation hole. It would be best to see the measurement written out as it is hard to read them from the photos of the caliper.




Thanks for confirming this information! I believe the best replacement to use would be the 26-226 Pivot Bar. This is the pivot bar compatible with the 15-208 shoe. Keep in mind, you'll likely need to drill a new installation hole in the sash to install it.
Please let me know if you have any questions.
