Coil Balancers

Handy Person from Branchburg, NJ

Jun 12, 2025 4:55 pm

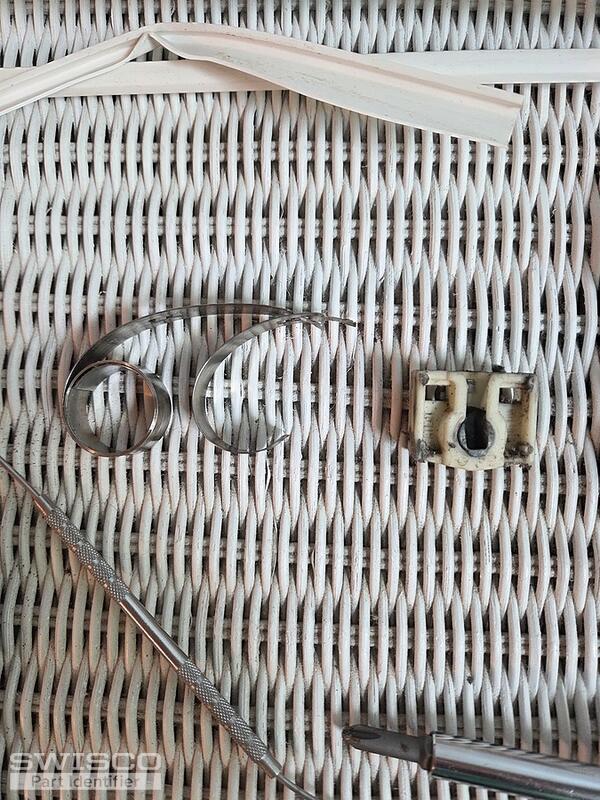

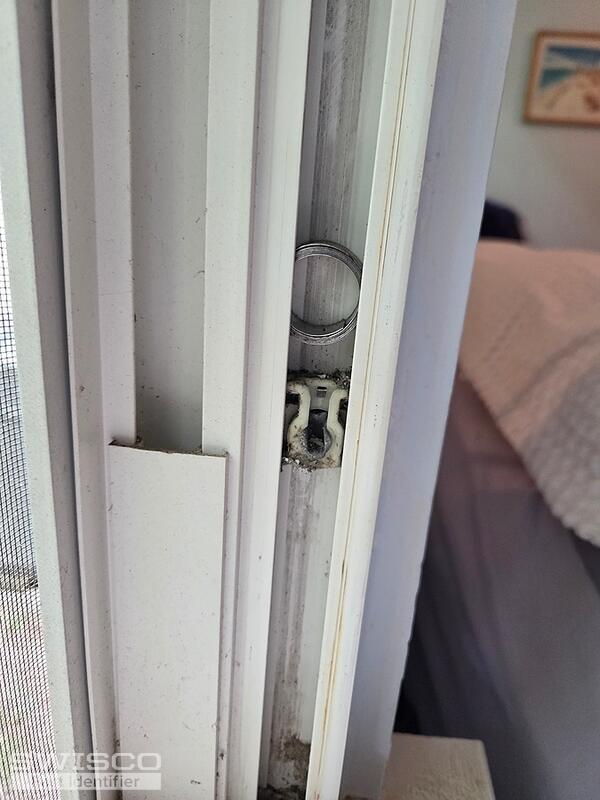

Balancers on both sides are broken. Removed parts, there are no markings or part numbers. Sash weighs 22 lbs and is 28 inches high.

5 user uploaded images

2 Replies

Emily from SWISCO

Jun 17, 2025 10:56 am

Hi there!

Thank you for reaching out to us. Your pivot shoe is a match for the 15-111, which uses the 1/2" S160 coil balances. Since the sash is 22 pounds, you can use two S160-05 5.5-pound springs on each side of the window. If you need a new double coil support, see the 15-150D.

Please let us know if you have any questions!
