Coil Blance replacement

Start a new Discussion

Quick Learner from USA

Dec 2, 2015 11:54 am

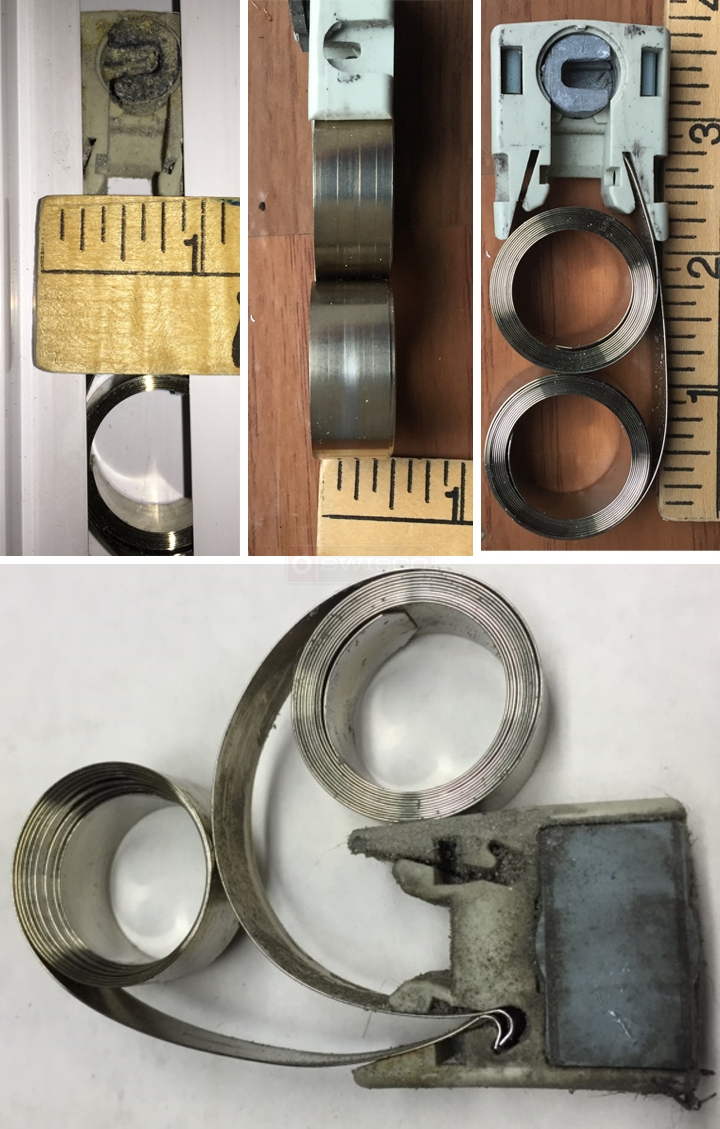

Attached please find pictures of a replacement window part I am looking to purchase. The measurements of the sash is 28

User submitted photos of a window balance.

7 Replies

Paul from SWISCO

Dec 3, 2015 2:17 pm

I believe our 15-177 with a 33-071 screw and Series 152 coil spring could work for your window. You will need to match the numbers printed on your old springs to our Series 152 option to determine the correct one. What do you think?

Quick Learner from Nesconset, NY

Dec 3, 2015 3:19 pm

Thanks for this info Paul! I will be heading into Queens and getting the weight of this window early next week, so I'll be back to determine the correct coil springs to place my order! Thanks again!

Quick Learner from Nesconset, NY

Dec 10, 2015 10:39 am

There are no numbers visible on the coil springs, but the sash weighs 19.5 pounds. Could you help me determine which coil springs would work with that information?

Thank you...Rich

Paul from SWISCO

Dec 10, 2015 1:15 pm

Perfect, thanks. I recommend four S152-5 coil springs; two on each side of sash. That should be enough to support your window weight.

Quick Learner from Nesconset, NY

Dec 10, 2015 3:47 pm

Thanks Paul, just placed my order.

Paul from SWISCO

Dec 11, 2015 9:24 am

Great! Thank you for your order. If you ever need anything else, we're always here to help.
