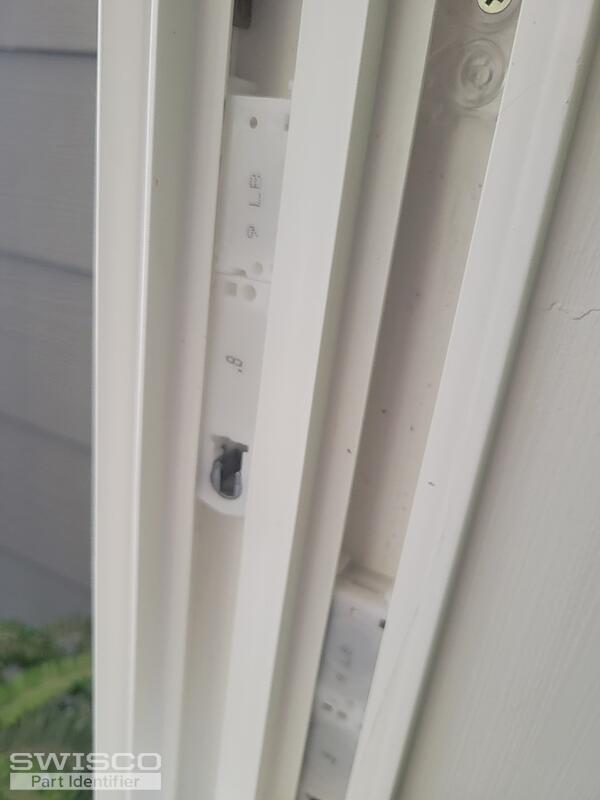

9lbs .8
9/16. 1" 1/4
Came out of a jeld wen window just wanna make sure I get the right part top operational window 38" tall
I guess it's the 140 series it says it goes out to 32 "
Just want to make sure it's the right one
Coil balance
Professional from Camden south Carolina
Apr 7, 2024 1:48 pm
4 user uploaded images
2 Replies
Bob from SWISCO
Apr 7, 2024 2:21 pm
Hello there. The coil shoe appears to be either an S161-08 or S210-08. The difference between these two assemblies is their width, as shown below, so compare both with your old hardware to determine what you need. For the tandem coil and housing, use the 15-086 and S180-9 spring. Let me know if you have further questions.
Alternate image for S210-08
Alternate image for S161-08
