Coil balance

Question

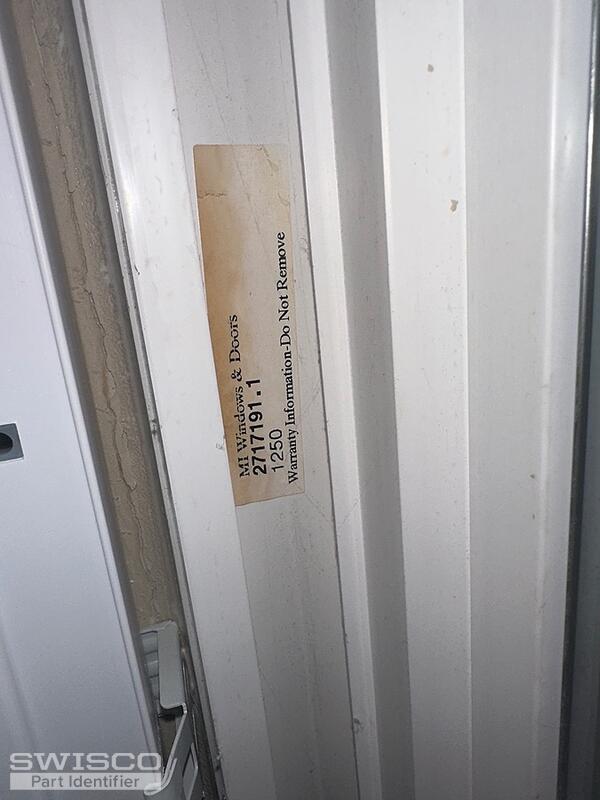

Hi there, my windows do not stay open. I believe this is the part that has failed. If you could identify this that would be great thanks.

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! Your window balance assembly can be replaced with the 15-180 Coil Balance Shoe, which use the Series 190 Coil Spring. You'll need the 33-073 screw to attach the coils to the shoe.

Alternate image for 15-180

I am unable to tell what the stamps on your coils are, so you'll need to examine them both to determine what you need to complete the assembly. Take a look at our video tutorial tagged below for reference.

The 15-181 Double Support Detent Clip used along with the 15-182 Balance Bushing are used to anchor the coils in the window track. You can use the 26-040 to replace the pivot bar.
