Coil balance

A contractor from California says:
November 1, 2017
Hi guys, just needed your help with this coil balance. It seems to me that I would need to replace the housing and the pivot shoe. Can you help with this, thank you.

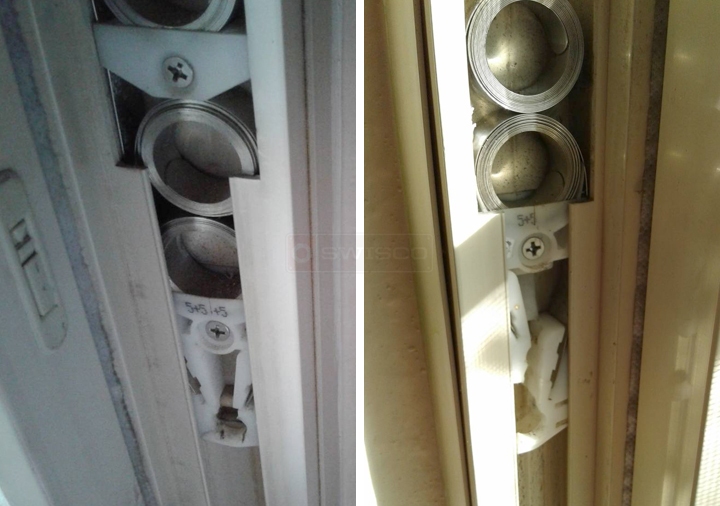

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
November 7, 2017
You have an old, discontinued coil spring balance system. You will need the new style Series 140 with new pivot bars. The bars will be 26-405 or 26-398, whichever one matches your screw holes. For the 5+5+5 coils, it will be S140-15, and 5+5 will be S140-10.
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
15 lb Series 140 Quick-Tilt, Dual
15 lb Series 140 Quick-Tilt, Dual
S140-15
$12.70
10 lb Series 140 Quick-Tilt, Single
10 lb Series 140 Quick-Tilt, Single
S140-10
$9.85
