Coil balance in this window has gone bad

Start a new Discussion

Contractor from philadelphia

Mar 4, 2020 1:08 pm

One of the balances on this window went bad. Can you determine what the replacement would be?

2 user uploaded images

13 Replies

Tom from SWISCO

Mar 5, 2020 1:58 pm

I'm pretty sure we can supply this, but I can't quite make out what you have from these photos. Would it be possible to see a clear photo of the pivot shoe? I'd like to see it removed from the window and without obstruction. I'd also like to know its width and thickness.

Once I can ID the pivot shoe, I can use that to pretty much figure out everything else that connects to it.

Contractor from philadelphia

Mar 6, 2020 12:20 pm

Unfortunately, the existing part can't be removed. We will need to cut out a section of the channel flange to get it out. We will do that next week and then I can send you a photo and dimensions.
Thanks.

Casey from SWISCO

Mar 6, 2020 12:34 pm

That sounds great. Thank you.

Contractor from philadelphia

Mar 11, 2020 11:32 am

Attached is a photo of what we need to replace.

1 user uploaded image

Paul from SWISCO

Mar 13, 2020 7:14 am

Thank you for the photo. We offer a Series 140 quick tilt coil spring system. Take a look and see what you think. Your coils should have some sort of stamping or marking on it. If so, please provide that information to us. If not, we will need to know the exact weight of your sash. Thank you.

Contractor from philadelphia

Mar 13, 2020 8:56 am

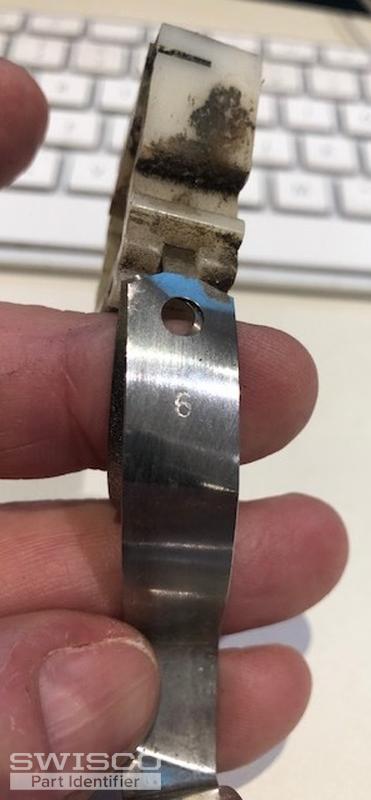

Thanks. Attached is a photo of the coil. The number is either a "6" or a "9" depending upon how you read it. Hope this helps.

1 user uploaded image

Paul from SWISCO

Mar 13, 2020 9:23 am

The spring weight number on your coil spring is 6 lbs. So if both coil springs on each side of the window are all 6 lbs., you can use S140-12 for a sash weight of 23-25 lbs. Have a look and see what you think.

Paul from SWISCO

Mar 13, 2020 9:57 am

You're very welcome. Be sure and get back in touch with us and let us know how everything works out.

Paul from SWISCO

Mar 13, 2020 10:24 am

Two of the S140-12 should do it. You will install one on each side that gives you the 23-25 sash weight support.

Contractor from philadelphia

Mar 13, 2020 10:50 am

Looks good to me. I will order them now.

Thanks.

Contractor from philadelphia

Mar 13, 2020 11:02 am

Will do.

Thanks, again.

Contractor from philadelphia

Mar 13, 2020 11:05 am

Sorry, one more question...
Should I be ordering (2) 140-12 or (2) 140-6?
