Coil balance

Start a new Discussion

Quick Learner from Baltimore

Dec 5, 2016 9:33 am

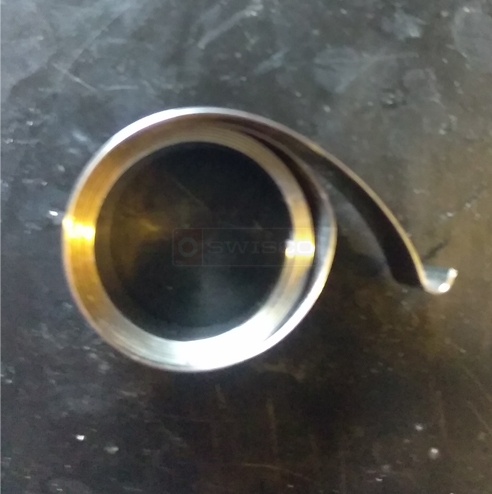

It is 1/2 inch

User submitted image of their window hardware.

4 Replies

Tom from SWISCO

Dec 6, 2016 12:06 pm

I think we should be able to help. Before we recommend anything, could you show me a picture of the pivot shoe to which this spring attaches? Thank you!

Quick Learner from Baltimore

Dec 7, 2016 10:35 am

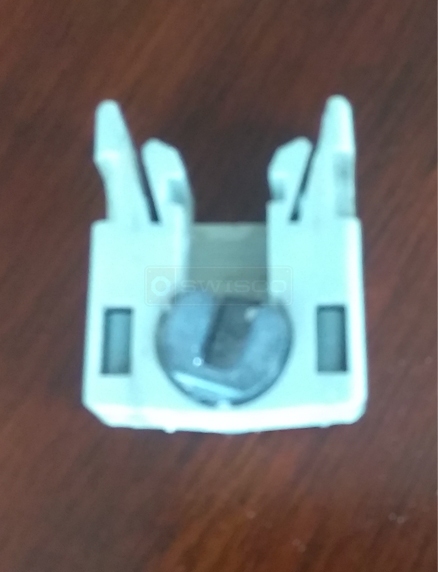

Here is the swivel for the coil balance

Tom from SWISCO

Dec 8, 2016 11:21 am

Thank you! That looks like our 15-177 shoe, which most commonly works with our 1/2" Series 152 coil spring. Check it out and see what you think. You'll need the stamp on your old spring to determine the best match.
