Coil balance. Wellington windows

A handy person from Milwaukee Wi says:

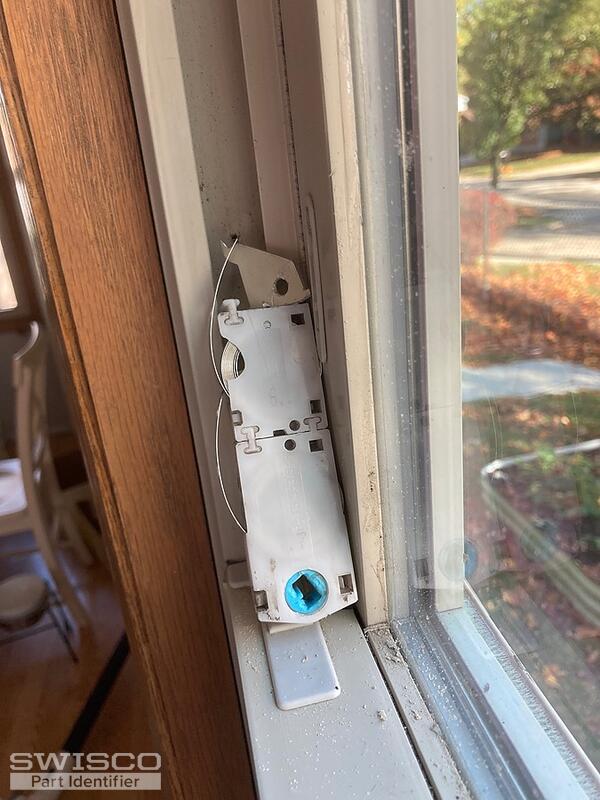

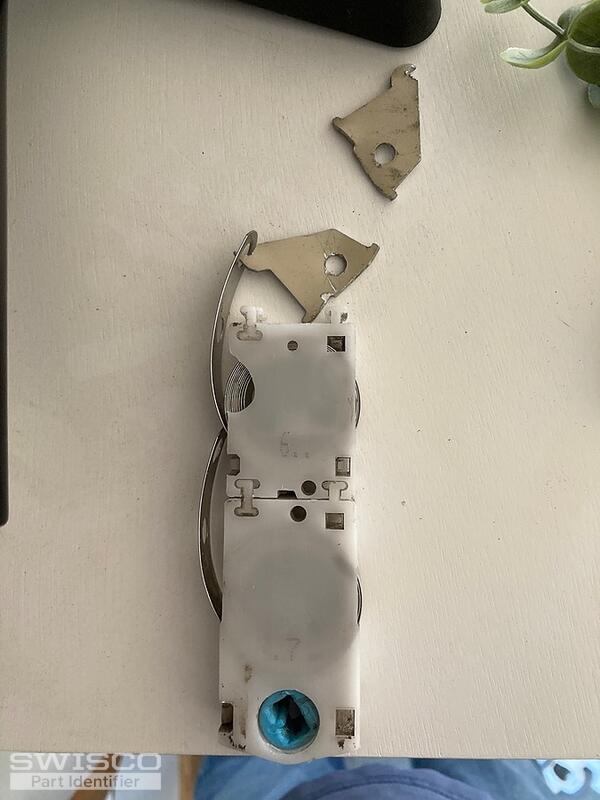

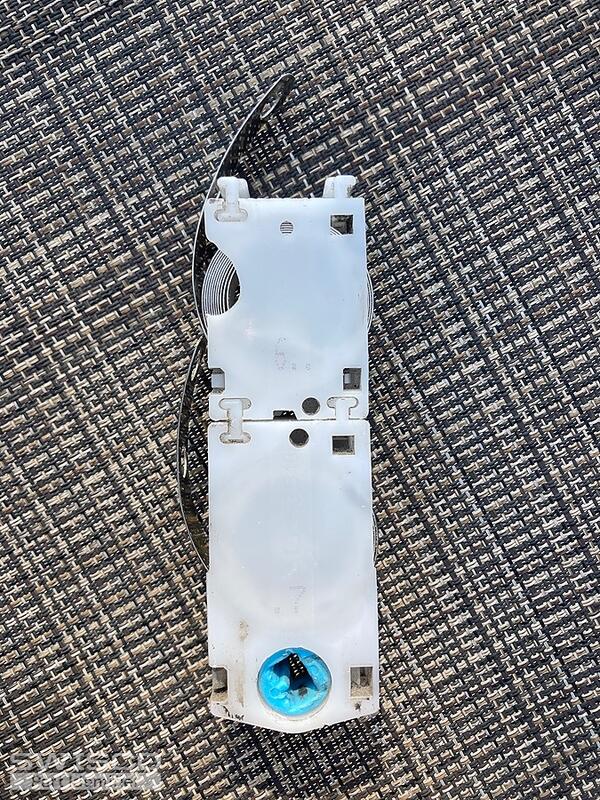

Top coil is a 6lb, bottom is a 7. Patent # is 5353548
Thumbnail of the uploaded file named EE9AD3C8-B346-4CA5-8286-56C76F9D08E4.jpeg
Thumbnail of the uploaded file named 20A47271-9502-4C22-A7AD-184A1B1065B4.jpeg
Thumbnail of the uploaded file named 6FEF3D4E-FCB0-4A41-A048-A48D69E54D21.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

Your hardware appears to be a match for our 15-087 pivot shoe, which uses the Series 180 coil springs, 15-086 housing and 16-024 bracket. Take a look at the specifications and see what you think.

A quick learner from seattle says:
Hello, pretty sure this is the set up that I have. Just curious if there is a a video of other instructions on how to put all this together properly. thanks.
Profile picture of Emily
Emily from SWISCO responded:

We don't have a video on the replacement process for these parts but the diagram below may be of help. Take a look and see what you think.

Series 180 coil balance diagram
Series 180 coil balance diagram
