Coil balance part #

A quick learner from Virginia says:

May 6, 2023

What is the correct part # to order? This is a two coil balance. Size is 1 1/4 x 9/16.

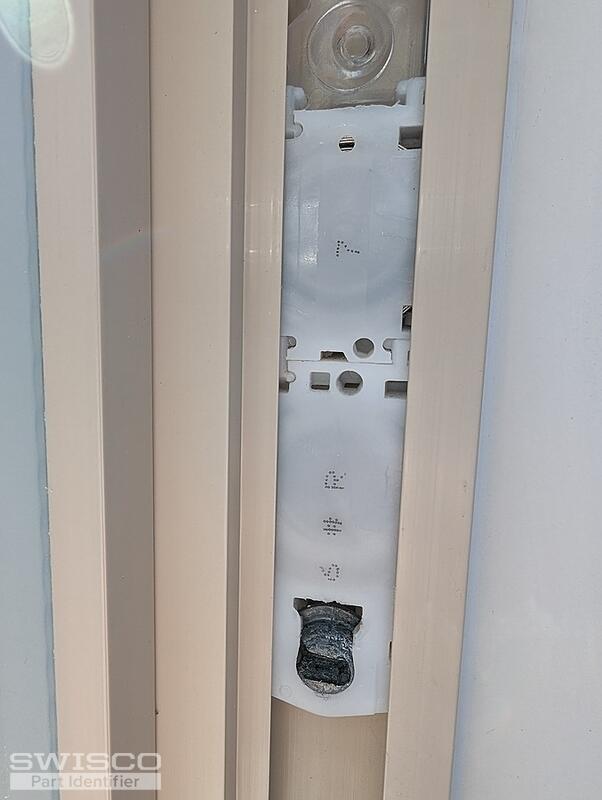

Thumbnail of the uploaded file named Window_Balance.jpg

Casey from SWISCO responded:

May 8, 2023

Hello,

I would recommend starting by removing your coil housing from the window to compare to the specifications of the S161-06 shown below. If it's a match, you'll also need the S180-7 coil and 15-086 housing to stack on top as shown in your photo. We also offer the 16-031 mounting bracket used with that assembly. Take a look and thanks for posting!

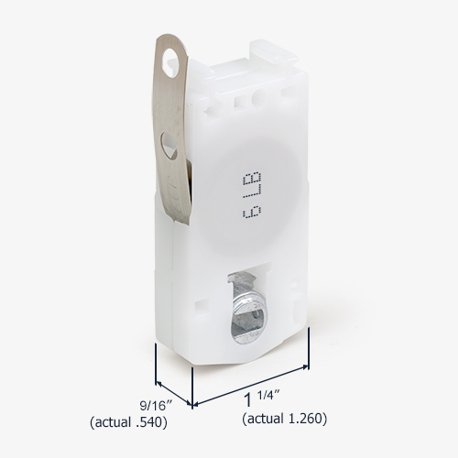

Alternate image for S161-06

A quick learner from Virginia says:

May 9, 2023

Looks like those are the correct parts, except for the mounting bracket. It should be a 16-030. I do not need the mounting brackets as mine are still good.

1. Is there a left & right? Or do you just flip one over?
2. Is there a video or some type of installation instructions for the S161-06 & S180-7 and the 15-086?

Thanks!

Casey from SWISCO responded:

May 9, 2023

The S161-06 and its related hardware are not handed and can be used to replace coil balances on the left or right side of the window. We also do not have an installation video showing these particular parts but we do show the diagram below.

Series 180 coil balance diagram

6 lbs Series 161 Roller-Tilt

S161-06

$6.15

7 lbs Series 180 Coil Balance
