Coil balance replacement

A quick learner from North carolina says:

I need four sets of coil balances for tilt out aluminum windows pictures are attached. The writing on the inside of the white plastic says oh and 137 Patton pending.

Thumbnail of the uploaded file named 7F6880DB-A71D-43BC-BA43-62B44EC89E24.jpeg
Thumbnail of the uploaded file named 325CE680-DC79-47CC-B76F-EC5C49698649.jpeg
Thumbnail of the uploaded file named E99D76B0-D3B5-440D-9AF5-9941C2E5B506.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thanks for contacting us. I think we can replace this hardware for you, but it's hard to tell what you can use without seeing the pivot shoe. Is there a way you can get us a photo of that part? Seeing it removed from the window entirely would be a huge help. I would also like to know the thickness of your springs and the numbers printed on them. Thank you!

A quick learner from Nc says:

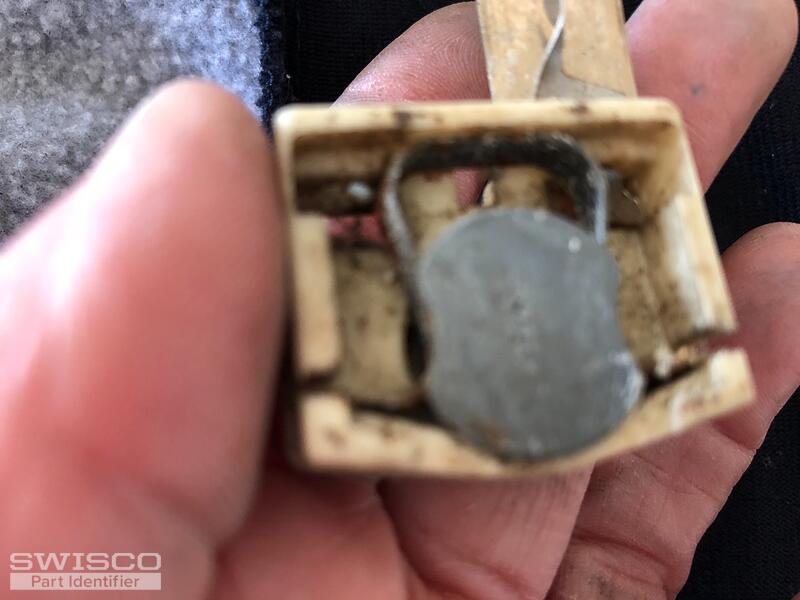

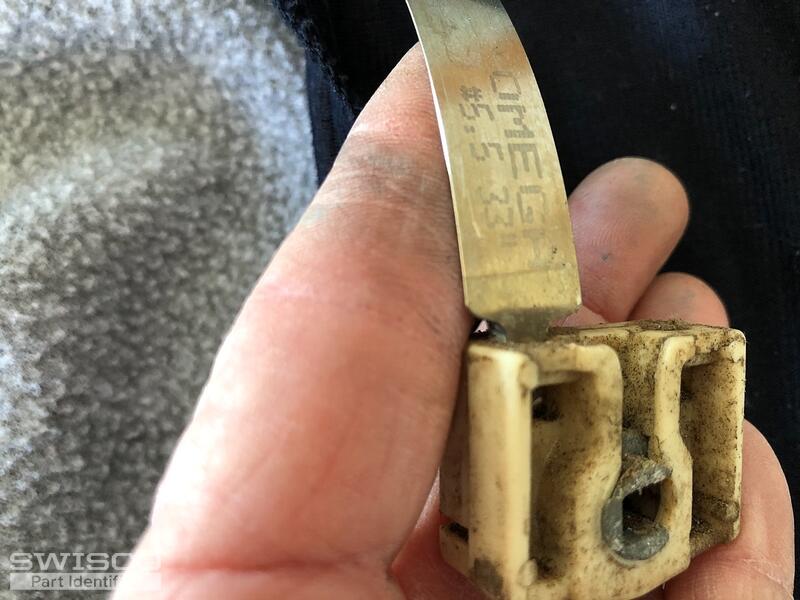

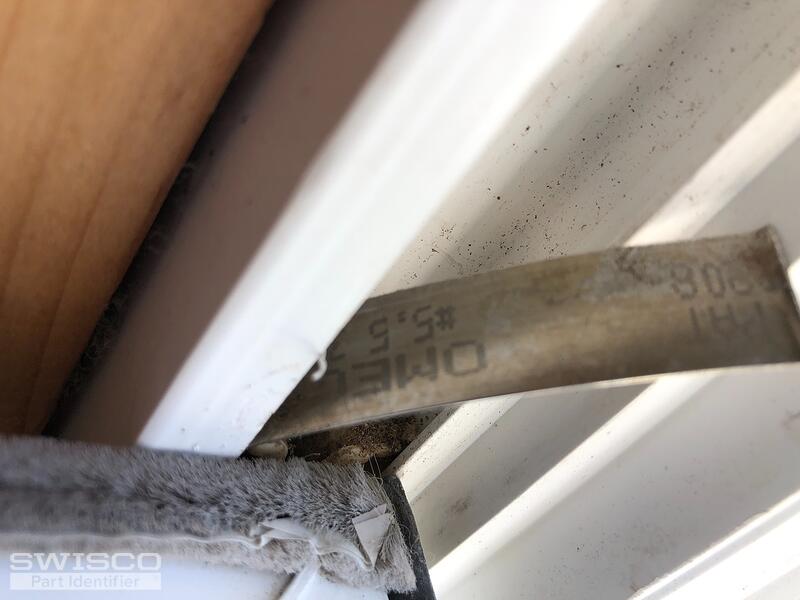

Paul here are the pictures of the pivot foot and the stamped information on the coil. I hope this is what you're looking for

Thumbnail of the uploaded file named 63E47AA6-9AA3-400C-8D13-D6EB1AADCB18.jpeg
Thumbnail of the uploaded file named E5613142-C743-435B-B8E0-27F2BD63E848.jpeg
Thumbnail of the uploaded file named 08D37660-7D59-4DBC-B306-31206F5A0363.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for your patience in this matter. Your pivot shoe looks like our 15-111, which is compatible with the Series 160 spring. I believe this hardware will work for you.

A quick learner from Nc says:
Which Coil support do I need. I sent the pictures front and back with my first email. It looks like two single supports but I didn?t see any that was smooth on the back.
Profile picture of Paul
Paul from SWISCO responded:

Sure! If you only use two springs on each side, see our 15-150D. We also sell the 15-148 bumper if you need it.

A quick learner from Nc says:

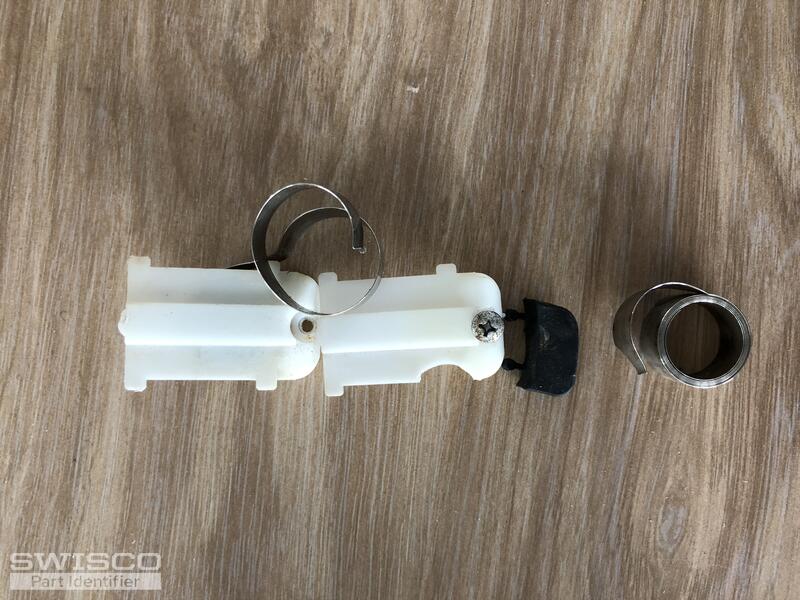

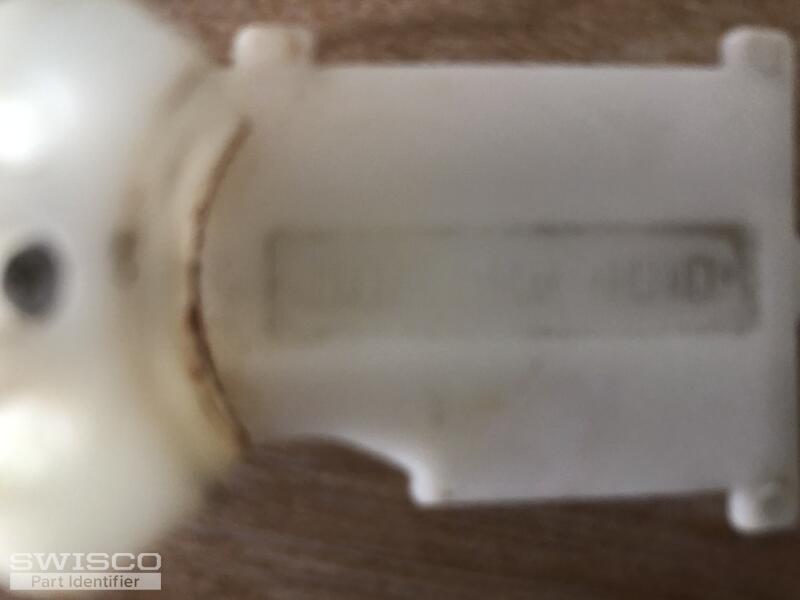

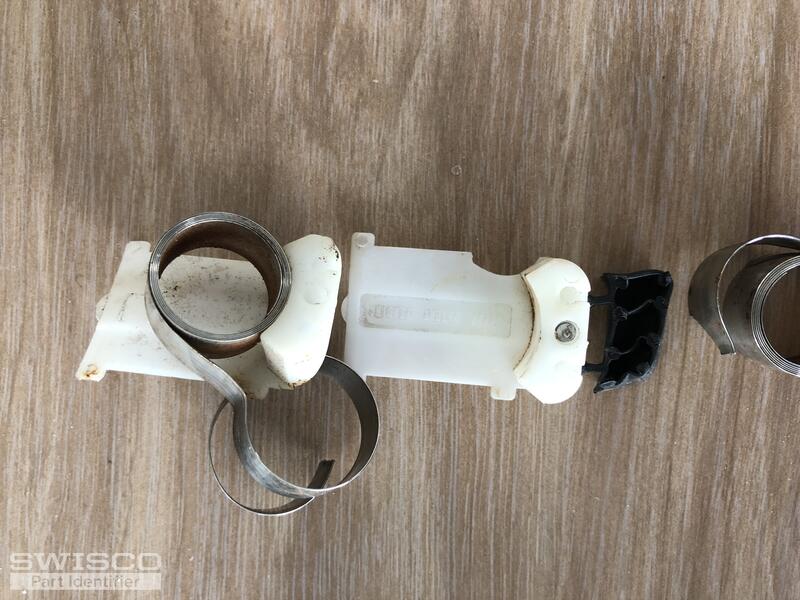

Paul which coil support well I need. Currently there are two single supports on each side of the window which is 4 per window you recommended one double support per side or two per window. Will that work. Please view the pictures and get back to me thank you
Thumbnail of the uploaded file named 012924E3-0011-4C65-AE9A-0FB47600D41B.jpeg
Thumbnail of the uploaded file named 8A2A39BA-3E82-4992-916F-50D3018D369C.jpeg
Thumbnail of the uploaded file named 05834394-9C22-40B3-BC25-C2E0CDE3A655.jpeg
Profile picture of Paul
Paul from SWISCO responded:

I'm not sure I understand your question. I recommended our 15-150D, which is made to support two springs just like yours. Did you have a specific concern over the 15-150D? Is there a detail that makes you think this won't work?

A quick learner from Nc says:
If you look at my pictures I have two on each side of window and they are flat and the coil rest in it they have no pegs on the inside please look at pic from previous e mails
Profile picture of Paul
Paul from SWISCO responded:

I've looked over your photos, but I don't see anything that would prevent the 15-150D from working. These are designed specifically to work with the Series 160 spring. As long as you have the Series 160 spring, the 15-150D will work.
