Coil balance replacement

A contractor from Louisville, KY says:
October 17, 2022
Hello, the sash weighed 18.6 ibs. Im needing the coil balance and accessories for one sash.

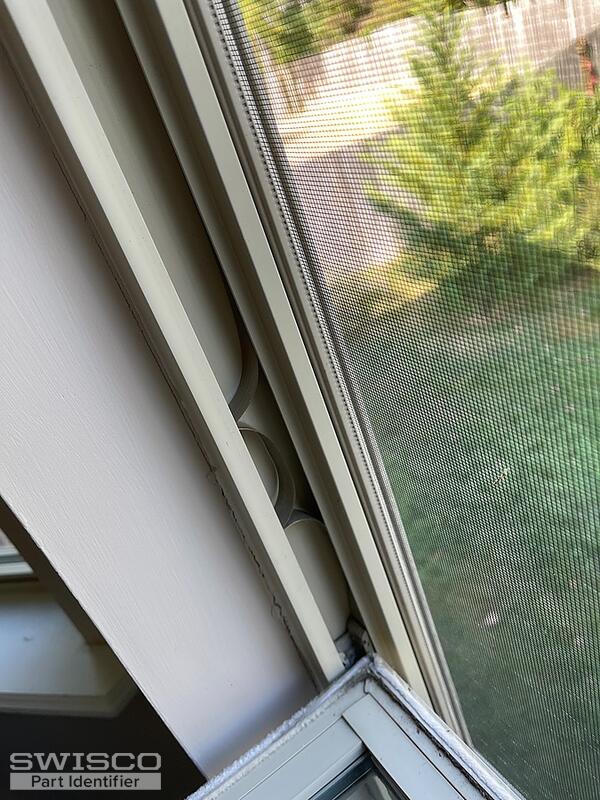

Thumbnail of the uploaded file named IMG_3956.jpg

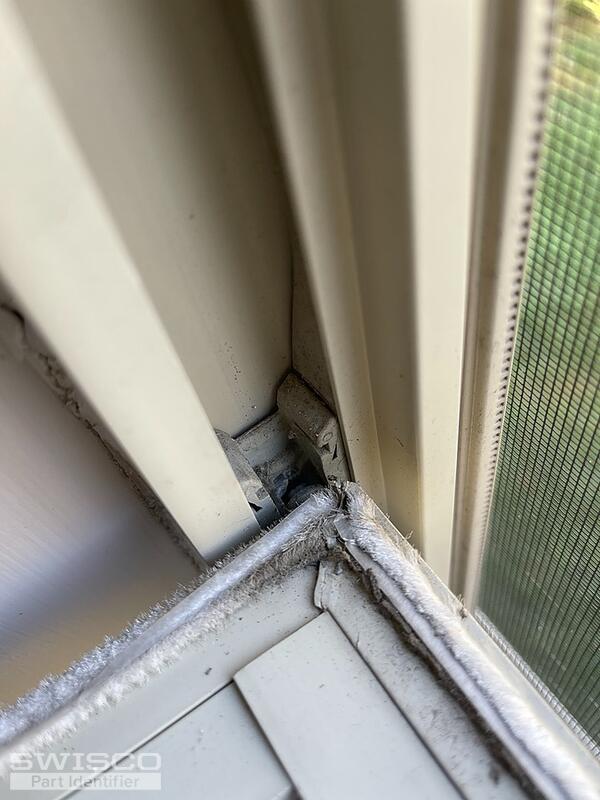

Thumbnail of the uploaded file named IMG_3957.jpg

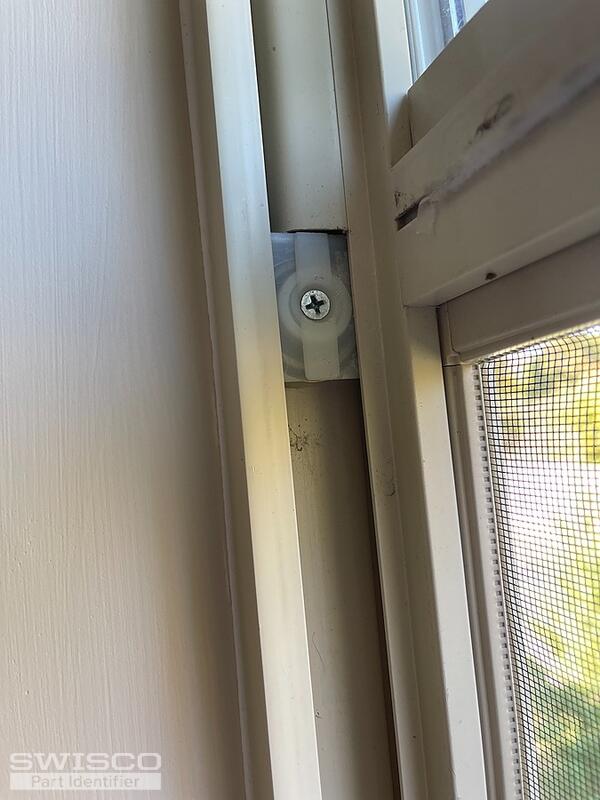

Thumbnail of the uploaded file named IMG_3958.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 20, 2022

Hello,

I can't be positive with your hardware still installed but I would recommend removing your balance assembly to compare to the 15-177 pivot shoe, which uses the S152 coil springs. I would recommend using one S152-9 coil on each side to support an 18.6-pound sash. Thank you!
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
9 lb Series 152 Coil Balance
9 lb Series 152 Coil Balance
S152-9
$5.15
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
