Coil balance shoe

A handy person from Canton, MA says:

July 3, 2020

There are no identifying numbers on parts. Brake pad is light green/blue. Cam is metal. Coil is screwed in thru side wall.

Thumbnail of the uploaded file named 8DD5D89F-2F73-40AE-B94C-85EB3C9AD5DE.jpeg

Thumbnail of the uploaded file named ECCD42D1-E497-4973-9853-09EAE0E43211.jpeg

Thumbnail of the uploaded file named 543A740F-B172-48CC-8CFC-11F2BC18BE0C.jpeg

A handy person from Canton, MA says:

July 3, 2020

Also, width is 1 3/16" or 1 1/4". Width, not including cam, is 9/16". Height is 1 1/2".

A handy person from Canton, MA says:

July 3, 2020

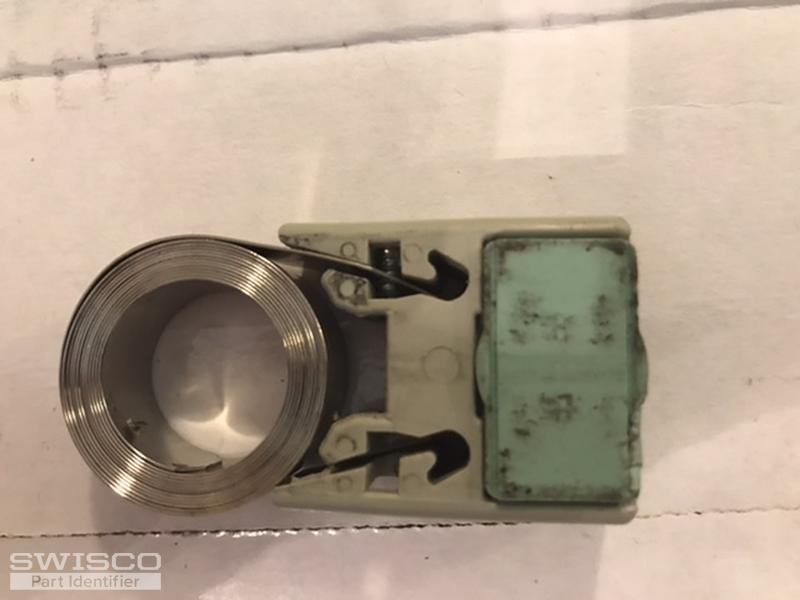

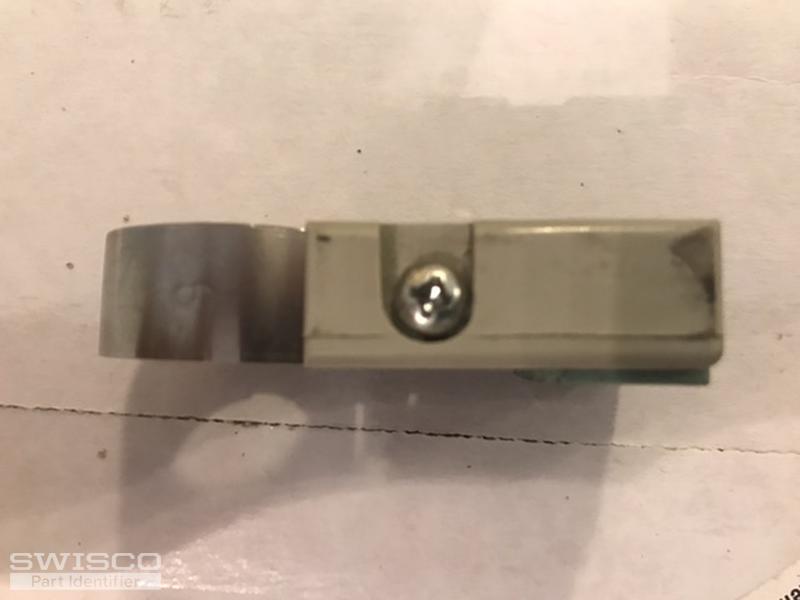

Side view and back view

Thumbnail of the uploaded file named CA2FDED5-5D6B-4D0B-ADB8-6D56FF6F4740.jpeg

Thumbnail of the uploaded file named E607BDA5-4CB8-47EB-9A0E-990BED057BA2.jpeg

A handy person from Canton, MA says:

July 3, 2020

Is 15-177 the correct part?

Casey from SWISCO responded:

July 7, 2020

Hello,

It looks like you've done my job for me. I agree that the 15-177 used with Series 152 coil springs would be the correct replacement for your pivot shoe. Please let us know if you have any other questions. Thank you!

A handy person from Canton, MA says:

July 11, 2020

Thanks. I ordered the parts and they were a perfect fit.

Casey from SWISCO responded:

July 13, 2020

Fantastic. Please let us know if you have any other questions. Thank you!
