Coil balance shoes,coil balances and round wheel on top.

A quick learner from USA says:

Hello

Window weighs 15.6 lbs.

I was looking at 15 -177

+ S152-8.

I wanted to make sure.

What do i need to do to replace the white wheels on top that the coil goes around?

Also

Need directions how to attach the other end of coil after you attatch one side.

Do you sell the coil already attatched to the balance shoe.

Or would that make it harder to install.

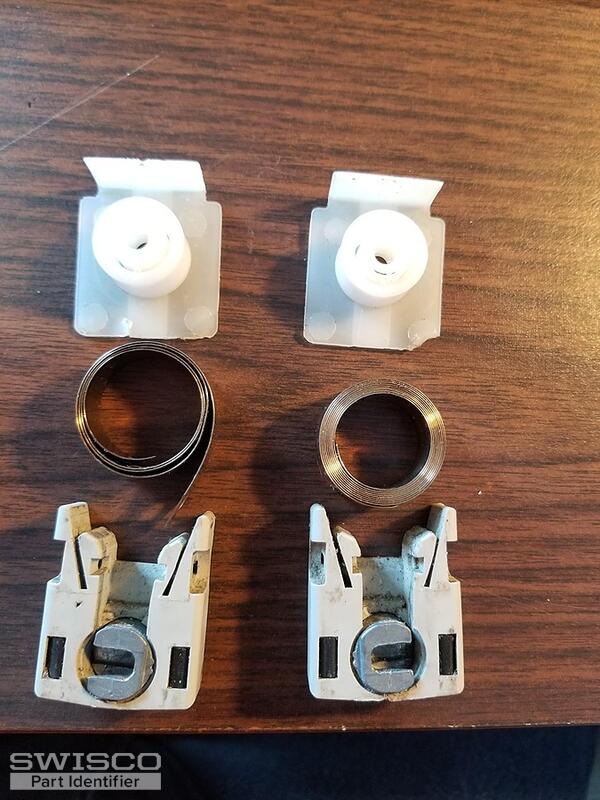

Thumbnail of the uploaded file named 20220316_121324.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. I agree, our 15-177 shoe and S152-8 spring should work perfectly fine for your window. We don't sell the old style cover you have now, but you can use our 15-143 bushing, 15-144 bushing cap, and 15-145 barrel.

We do not sell coil balances pre-assembled, unfortunately, but the spring just screws to the pivot shoe. There isn't much to it.
