Coil balance and shoe replacement

A handy person from Staten Island says:
June 22, 2018
Do you have a replacement for this coil balance set up?
Profile picture of Tom
Tom from SWISCO responded:
June 25, 2018

Which coil set-up? It looks like you may have meant to send photos, but I didn't receive anything.
A quick learner from Staten Island says:
June 26, 2018

Sent pics to Jodie. She said she would forward them to you

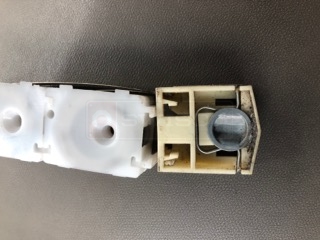

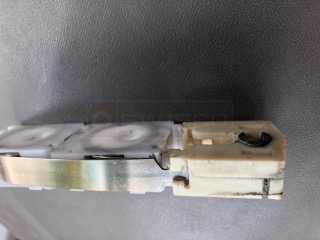

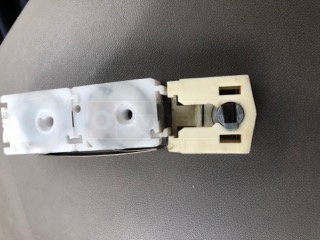

Coil balance
shoe
support
Profile picture of Paul
Paul from SWISCO responded:
July 3, 2018

Thanks! We believe you will be able to use our 15-228 pivot shoe along with a 15-150D, 1/2" coil spring housing. The coil springs will be our Series 160. You will need the number stamped on your old springs to determine the best Series 160 option.

The only thing I'm not sure about is whether your old pivot bar will fit in the new shoe. If you want, show me a picture of the old pivot bar and I can confirm.
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-228
$2.57
