Coil balance and shoe replacements

A quick learner from USA says:
October 24, 2017

These are the parts I need.

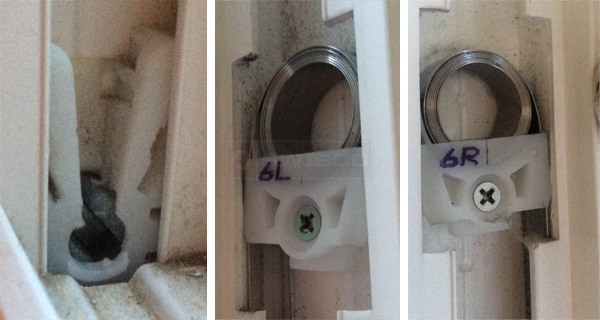

Coil assembly
Profile picture of Paul
Paul from SWISCO responded:
October 30, 2017
We believe you have the old style Quick-Tilt balance, which has been replaced with our S140-6.

You will need to replace the pivot bar with either 26-398 or 26-405. Please compare the holes of the pivot bar to see which one will fit your window.
A quick learner from Bathroom says:
October 30, 2017
How do I install S140-6?
A quick learner from Bathroom says:
October 30, 2017
Show me how to replace the old with the new S140-6. Do I need to order clamps to install the parts?
Profile picture of Paul
Paul from SWISCO responded:
October 31, 2017
Sure, see the video below. This video doesn't feature the Series 140 specifically, but the principle is the same.
6 lb Series 140 Quick-Tilt, Single
6 lb Series 140 Quick-Tilt, Single
S140-06
$7.59
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
