Coil balances for vinyl dbl hung sashes

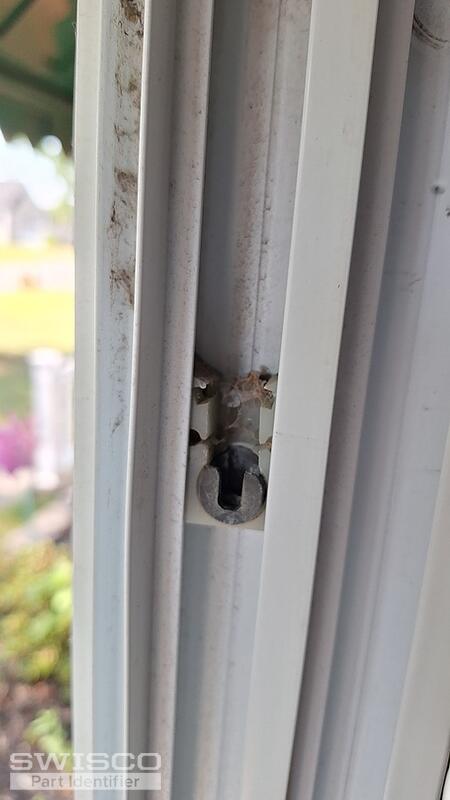

This exact shoe is no longer made but the 15-177 will work to replace it. You'll need to carefully review and compare the dimensions to confirm it will be a fit in the track.

Alternate image for 15-177

The Series 152 Coil Balance is the spring used for this assembly. They are attached to the shoe using the 33-072 screw. Since the existing coils do not have stamps/markings, you'll need to confirm exact weight of the window sash. Review the video tutorial below for a detailed explanation on how to choose the coils you need.

The covers can be replaced with the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel.
