Coil balances with notched ends

Start a new Discussion

Quick Learner from New Jersey

May 25, 2021 12:20 pm

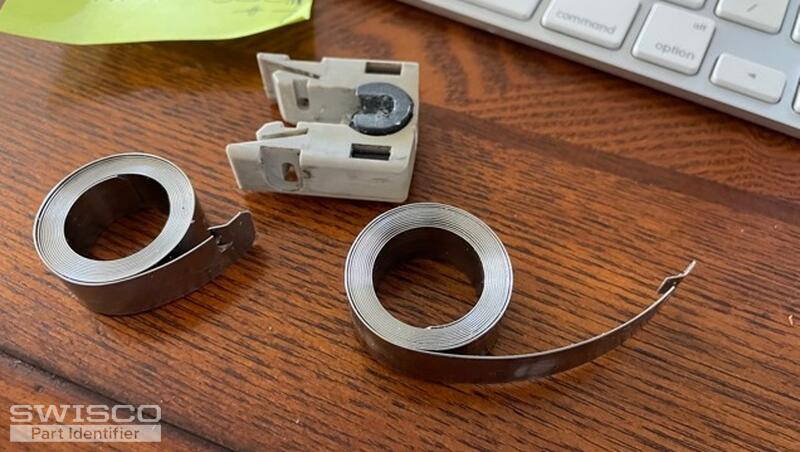

I need four of these coils. They have 7s on them.

4 user uploaded images

4 Replies

Emily from SWISCO

May 27, 2021 1:37 pm

Hi there!

Your pivot shoe looks like our 15-177 which is used with the Series 152 coil springs.

For your tilt latch, we'll need to see an undamaged latch removed from your window, along with dimensions, to compare to our inventory.

Thank you!

Quick Learner from New Jersey

May 27, 2021 3:57 pm

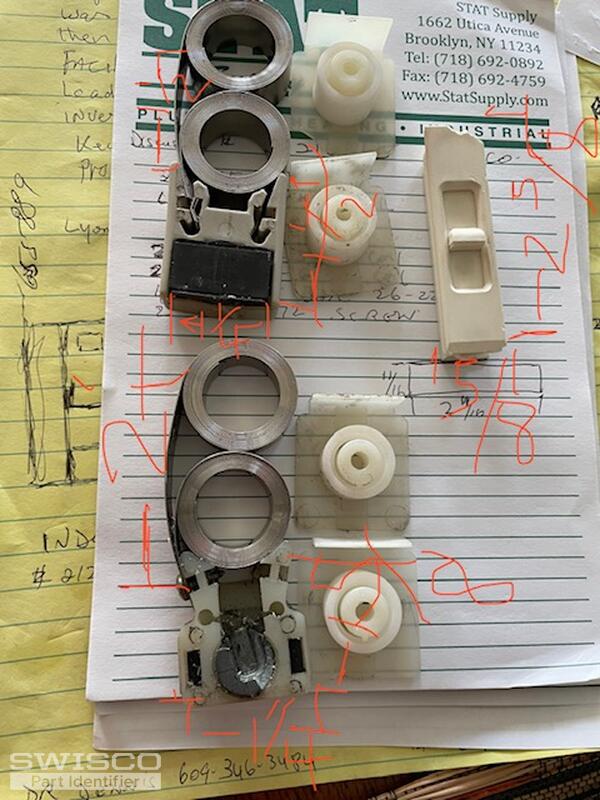

Need 2 =15-177 Shoe
Need 4 =152 #7 Coil this is a double coil 2 of them should have about a 2" longer tongue
Need 2 S152 #5 coil
Need 2 S152 #6 coil
need 4 #26-226 Pivot Bar
Need 2 # 33-072 Screw
Need Right And Left Tilt Latch 11/16BY 2 11/16

1 user uploaded image

Emily from SWISCO

May 28, 2021 8:41 am

For the items listed, you can place an order on our website at your convenience.

As for your latch, please see our 26-243 and 26-244. Carefully review our dimensions and compare them to an undamaged latch to see if this matches up for what you need.

Alternate view of 26-243
