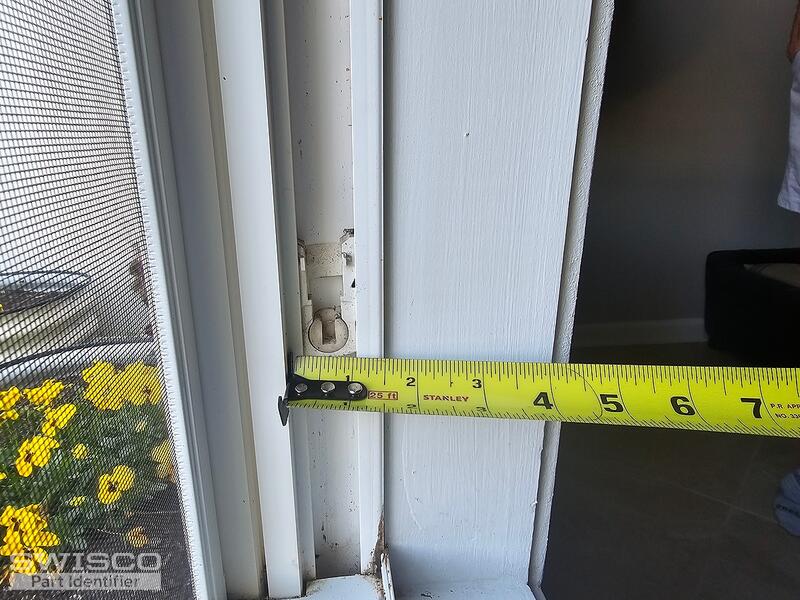

Looking for a replace part for the balance, pivot bar and other related part
The sash size approximately 30 x 30
Coil ballance
Professional from Youngsville NC
Mar 12, 2025 7:07 pm
4 user uploaded images
2 Replies
Jasmine from SWISCO
Mar 13, 2025 11:25 am
Your balance assembly is made using the 15-180 Coil Balance Shoe. The compatible pivot bar is the 26-040 3" Pivot Bar.
Alternate image for 15-180
Dimensions for 26-040
This shoe uses the Series 190 Coil Balance, which is attached to it using the 33-073 screw. The coils is anchored to the window track using the 15-186 Coil Balance Clip.
Take a look at the video tutorial below for instructions on how to select the correct coils for your assembly.
