Coil for shoe pivots, Coil Part # 15-111

Question

15-111 is the parts I ordered, but my coils don't fit them. I'll need 6) coils all together. What part numbers do I need to replace the existing coils to work with Part# 15-111?

I have four brand new 15-111 pivot shoes.

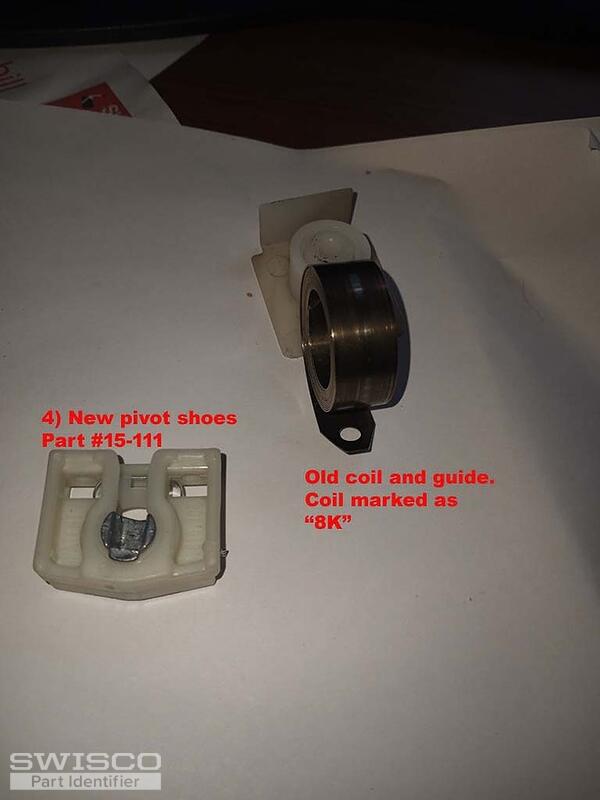

I need 6 coils to match them. This is all the info I have on this (see photos).

I don't know if I need anything else, I'm open to your expertise.

I live 15 minutes from your distribution center in Pennsauken NJ.

I live in Cherry Hill NJ, and can swing buy to pick them up.

Thanks,

Eric

Jasmine · Accepted Answer

Hi Eric,

Your pivot shoe looks a lot more like our 15-177 Slate Blue, Coil Balance Pivot Shoe. To determine if this replacement will work for you, carefully compare the dimensions to those shown below.

Alternate image for 15-177

These are compatible with the 1/2" thick Series 152 coil balance springs. Since your springs are marked with a 5K and an 8K, you'll need the S152-5 and S152-8.

To install the coil to the shoe, you will need to slightly unroll the coil so that you can fit the coil into the slot at the stop of the shoe. Then you'll need to secure the coil to the shoe using the 33-072 .

You may also need the 15-143 coil bushing, 15-144 coil bushing cap, and the 15-145 coil support barrel.

Unfortunately, we do not allow for in person pick ups at our location. You'll need to place the order for them and chose one of the available shipping options. I do apologize for any inconvenience this may cause.
