Coil parts

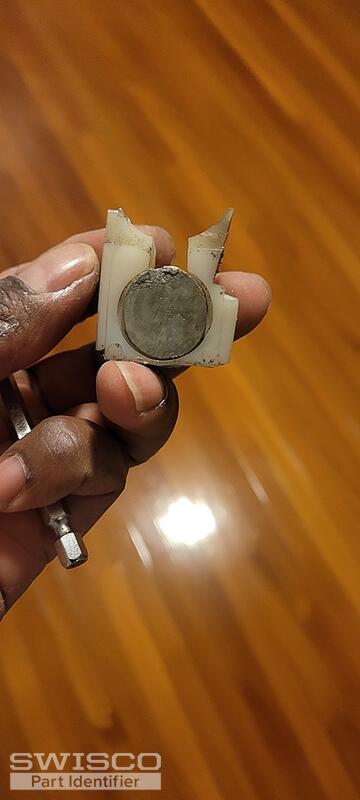

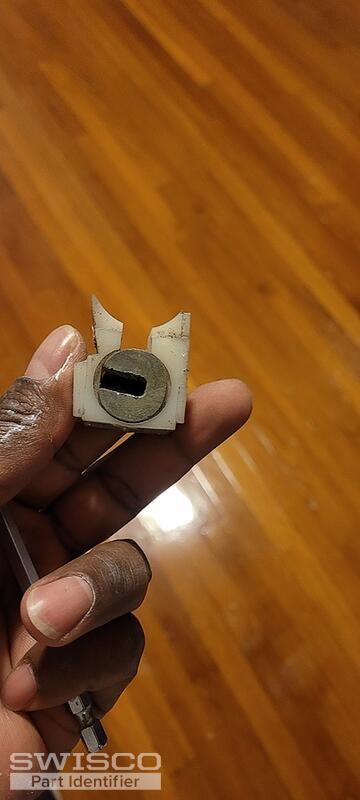

Thanks for posting. It appears you have Simonton window parts, which have been discontinued recently but I am very confident we have a replacement that would work for you.

You can use either the 15-192 Certainteed pivot shoe or covert your assembly to use the 15-259 pivot shoe.

Should you use the 15-192, you may need to shave the aligners (nubs) from the front of the shoe. These are compatible with the S170 coil balances and the S171 to be stacked on top.

The video below gives instructions on how to covert your existing coil balance assembly to the 15-259 shoe.
