Coil spring assembly?

Home Owner from Vermont

May 16, 2021 12:07 pm

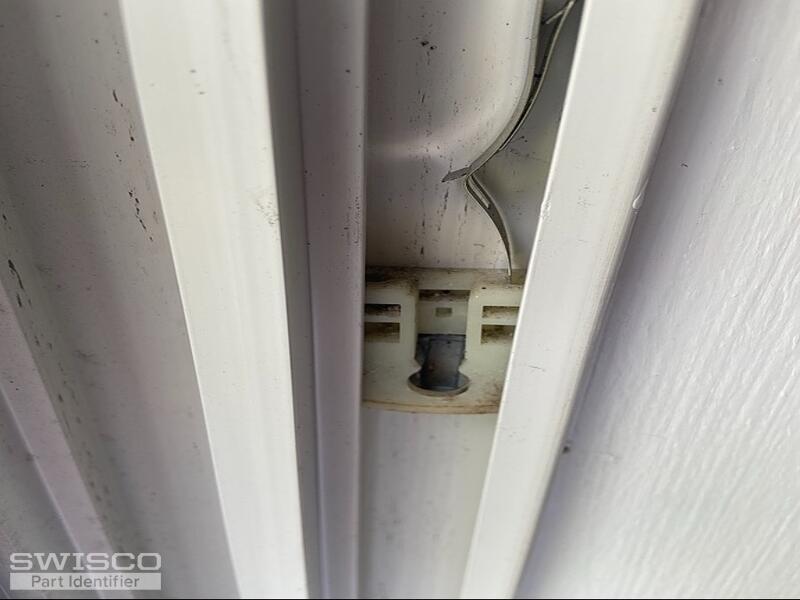

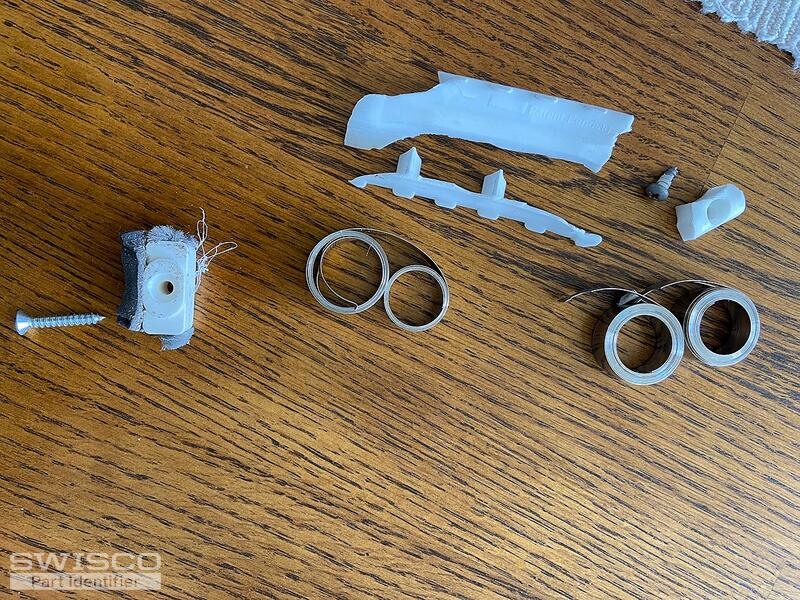

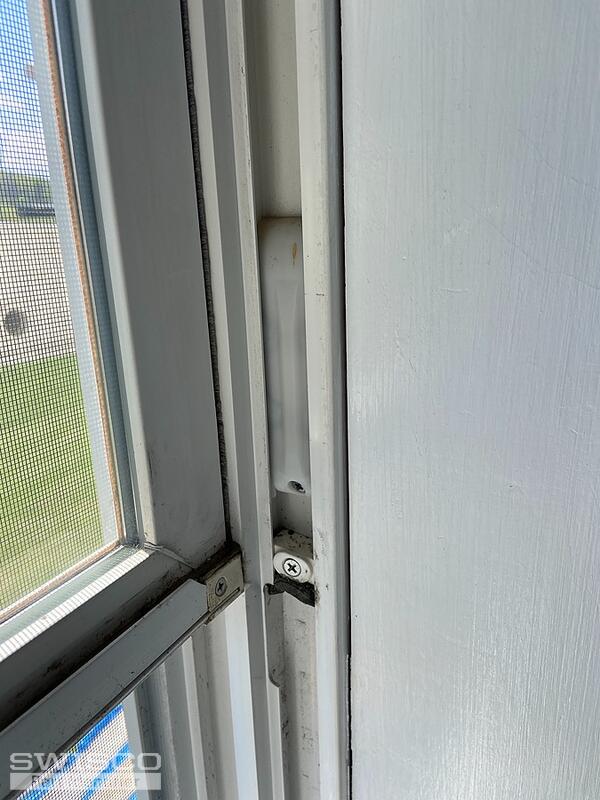

I have a couple busted coil springs on my Simonton windows. They were installed around 2002. All the windows are the same size. Both left and right side are broken depending on the window. Not sure what parts are needed to replace them. I have attached pics of the window along with pics of both a broken and not broken assembly. Any help would be appreciated.

5 user uploaded images

4 Replies

Emily from SWISCO

May 18, 2021 3:12 pm

Hi there!

We'll need to see an undamaged pivot shoe removed from your window, along with dimensions, to compare to our inventory. If we can identify the pivot shoe, that will tell us the coils and accessories that you'll need.

Home Owner from Vermont

May 18, 2021 3:36 pm

The dimensions are 1 1/4" w and 1 1/2" h. I hope you can work with this because I really don't want to remove the pivot shoe until I have replacement parts. If I absolutely need to remove it to identify the correct parts, please let me know so I can explain to my wife why I'm tearing apart her window!

1 user uploaded image

Emily from SWISCO

May 19, 2021 8:34 am

Your pivot shoe resembles our 15-199 which uses the Series 160 and 165 coil springs. It's difficult to get precise measurements while the pivot shoe is still in the window, so you'll need to remove it to confirm that your dimensions match ours.
