Coil spring balance broken x2 : SWISCO.com

Handy Person from Montreal canada

Apr 15, 2025 8:44 am

PVC double hung guillotine window. Main pane needs two new coil springs. Can't see if they are each double cool and what parts to replace

3 user uploaded images

5 Replies

Casey from SWISCO

Apr 17, 2025 2:30 pm

Hello,

Your pivot shoe resembles the 15-111, which is commonly used with the S160 coil springs. You'll need to remove the original coils to determine how many you need and locate the numbers on them to choose the corresponding strength options. Thanks for posting!

Alternate image for 15-111

Handy Person from Montreal canada

Apr 21, 2025 11:45 am

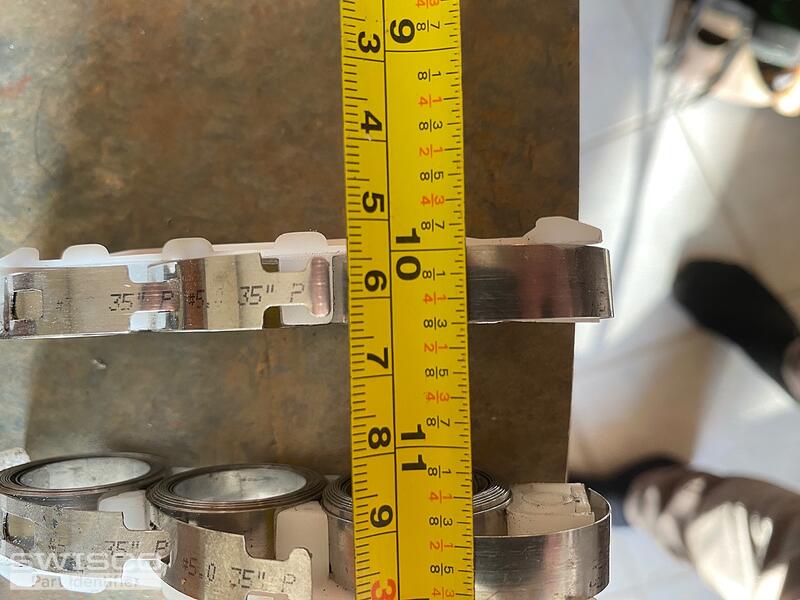

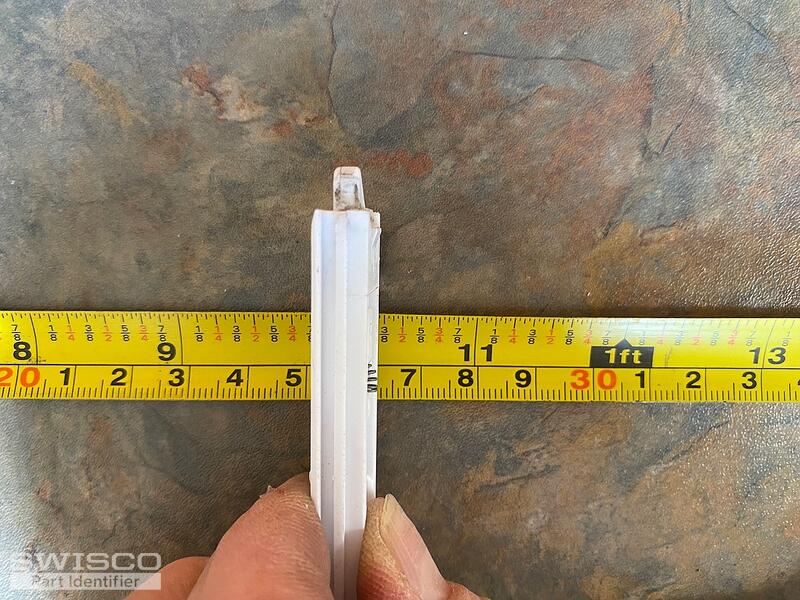

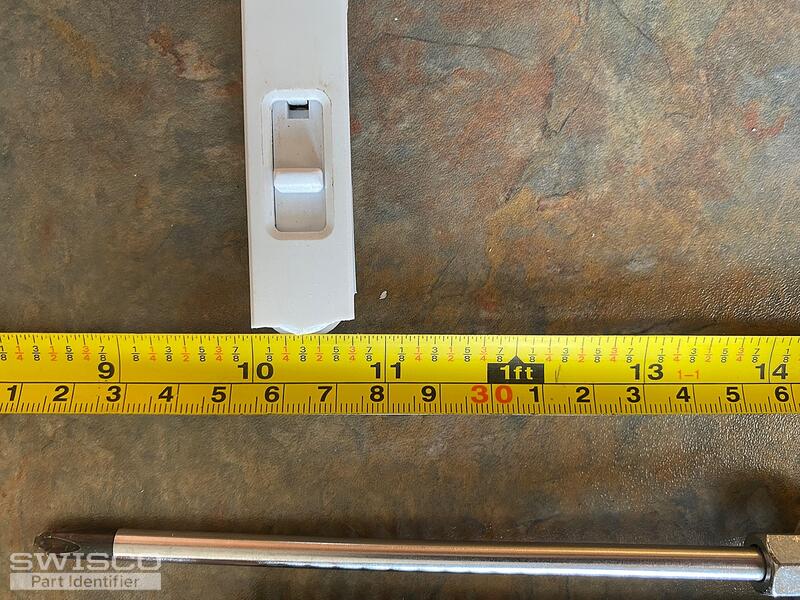

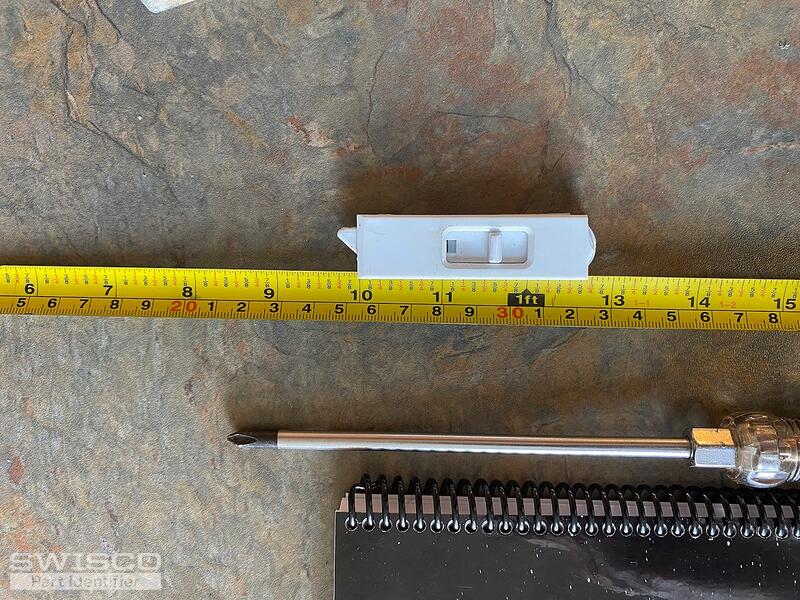

I removed the hardware and found a triple coil balance. First coil tabs are broke.They are marked #5.0. 35" P. I need 4x of these coil springs.I also need 4x locks. See size in photo

4 user uploaded images

Handy Person from Montreal canada

Apr 21, 2025 11:58 am

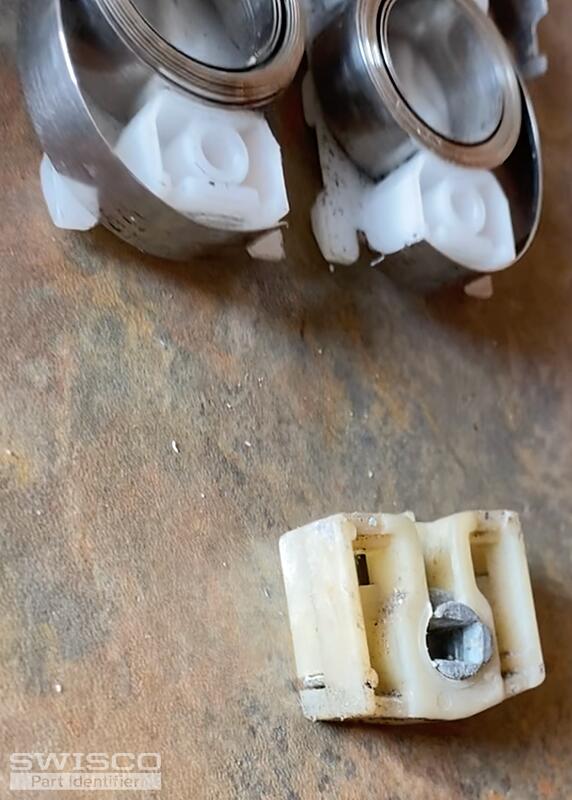

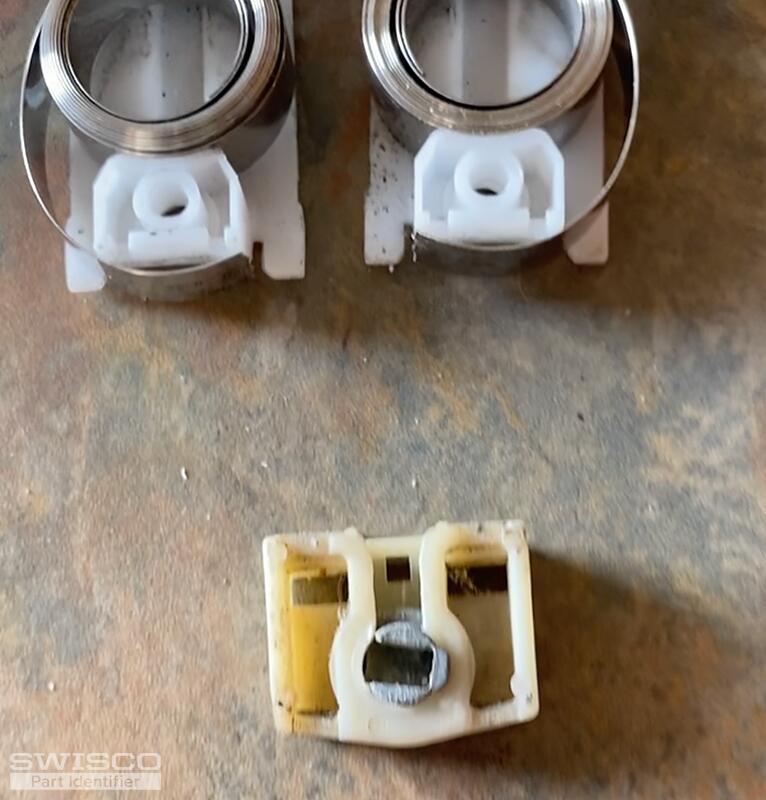

And here are the removed parts with the pivot shoe.Need to replace left and right 3/8 bottom (1st) coil balance #5.0 35" P.Broken at the tab that locks into the pivot shoe.

2 user uploaded images

Casey from SWISCO

Apr 21, 2025 12:37 pm

Your coil springs resemble the 3/8" wide S165-5 replacements.

As for the tilt latches, take a look and compare the specifications of the 26-390 and 26-391 latches to yours.

detail of 26-391
