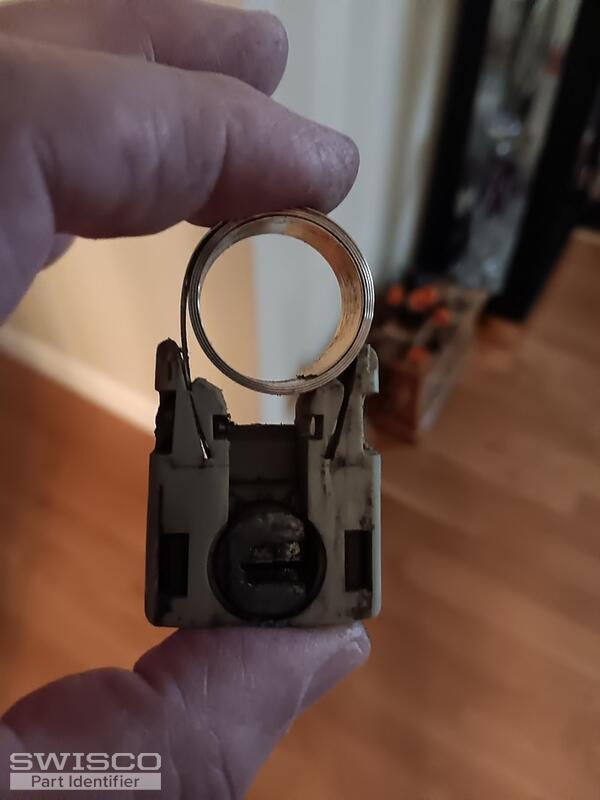

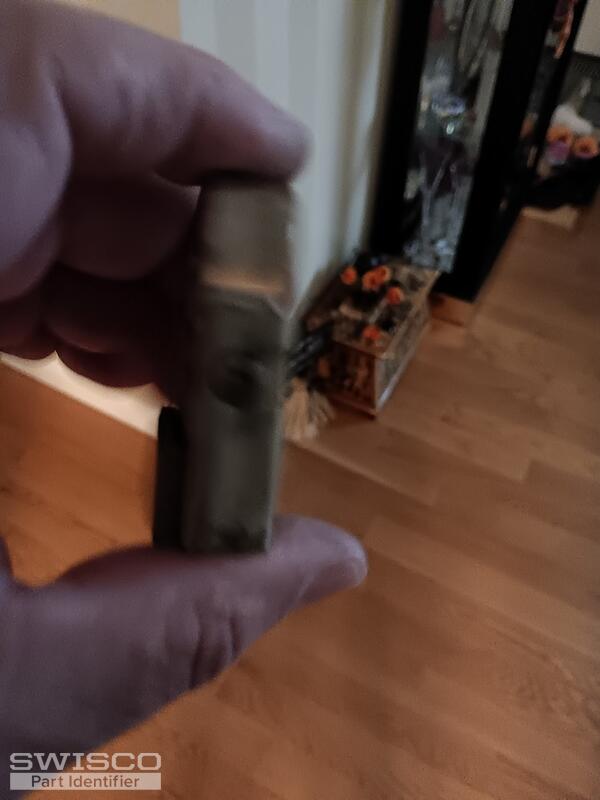

Coil spring and shoe both sides

Thanks for posting! This balance shoe is the 15-177 Coil Balance Shoe. To confirm that this is the right replacement, carefully review and compare the dimensions below.

Alternate image for 15-177

The springs compatible with this shoe are the Series 152 Coil Balances, attached using the 33-072 Screw. Since yours is marked with a 5, you'll need the S152-5.

If you can reuse the covers, that would be suggested. Your exact covers aren't available any longer but the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel will work, in the event that you cannot reuse them.
