Coil window shoe slate blue maybe

Quick Learner from Harrisburg, pa
Hello, I am repairing some windows in a house I just bought, the top windows would not stay up, I found that the metal bits in many of these shoes and many of the pins were broken or cracked. I need to replace them. I think  the coil window shoe slate blues are appropriate replacements, need to make sure. And I am inside the appropriate pins to buy or if there is a difference. Any help would be appreciated. Thank you

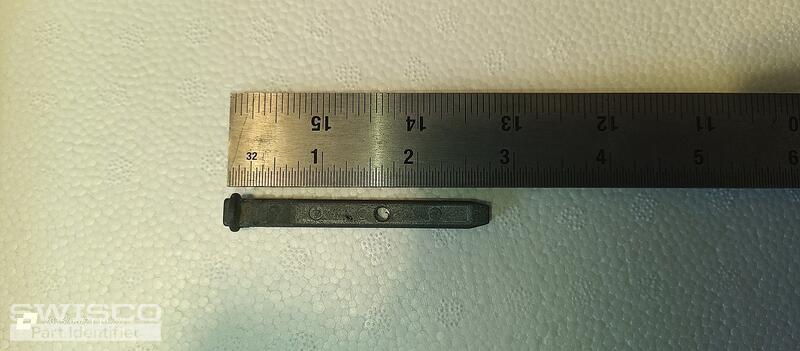

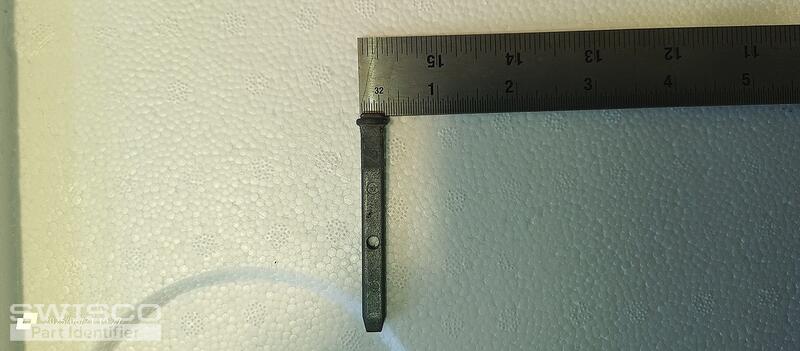

5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. Yes, the pivot shoe looks like the 15-177, which works with Series 152 Coil Balance springs sold separately. For the pivot bar, see the 26-226, 26-466, 26-030 or 26-352. Compare these with your old pivot bar to see what matches best.

End view of the 26-226 pivot bar
End view of the 26-226 pivot bar
Dimensions for 26-466
Dimensions for 26-466
Dimensions and closer look at 26-466
Dimensions and closer look at 26-466
Alternate view of 26-030
Alternate view of 26-030
Detail of 26-030
Detail of 26-030
Alternate image for 26-352
Alternate image for 26-352
Alternate view of 26-352
Alternate view of 26-352
