Complete coil balance

Quick Learner from Pittstown NY
Apr 10, 2024 4:48 pm

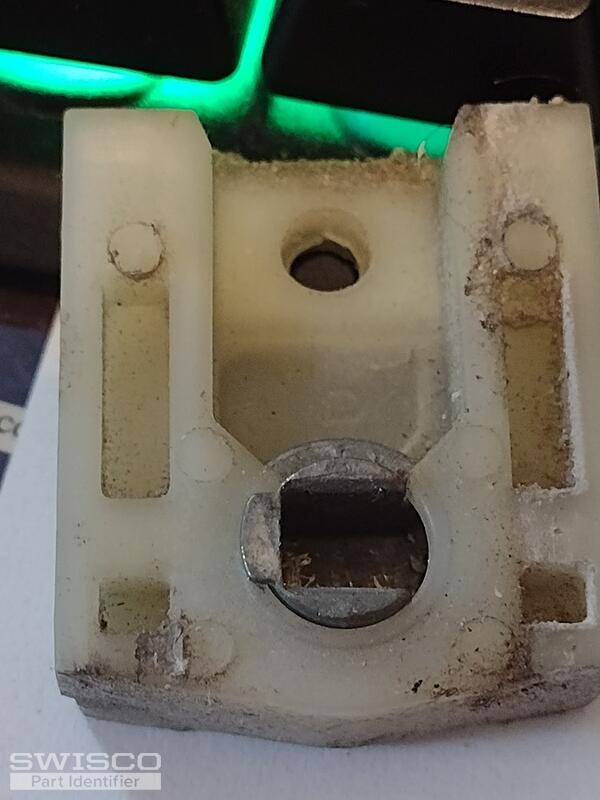

Hello looking for 2 (right and left) complete balance assembly. Pivot, coil and mounting block

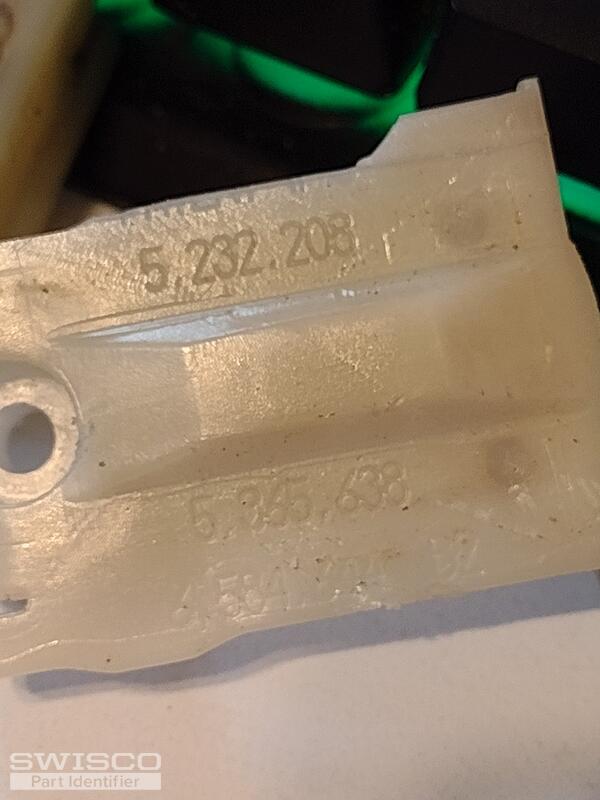

Numbers on Mount block:
5.232.208
5.365.638
6.584.644 B2

Coil stamp:
#4.5 35" P

plastic mount is just under 1.25 inches wide and 1.5 thick 1 5/8" tall.

Would like to have the whole thing as the plastic parts are worn and cracked. Windows came from Lowes, just Standard generic windows nothing brand name" special" Double hung, tilt sash, vinyl.

Thanks Ted
coil1 coil2 IMG_20240410_133253773 IMG_20240410_133335883 IMG_20240410_133352131
5 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
Apr 11, 2024 12:41 pm
SWISCO
EXPERT

Hi Ted, thank you for posting!

Your pivot shoe resembles the 15-228. Please compare the dimensions below to confirm a good fit! If the thickness of the coil spring is a 1/2", see the S160-04 coil spring that can support 4.5 pounds along with the 15-150S support cover. With an assembly on both sides, the total sash weight should weigh 9 pounds.

Please review and let us know if you have any additional questions!

Dimensions for 15-228
Dimensions for 15-228
