Product Code: S160-04

4.5 lbs Series 160 Coil Balance

Name: 4.5 lbs Series 160 Coil Balance
SKU: S160-04
Price: 4.5 USD
Availability: InStock

$4.50

4.5 lbs Series 160 Coil Balance Thumbnail Image

Quantity	Price
1-11	$4.50/ea
12-49	$4.05/ea
50-99	$3.60/ea
100-199	$3.38/ea
200-399	$2.97/ea
400+	$2.75/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

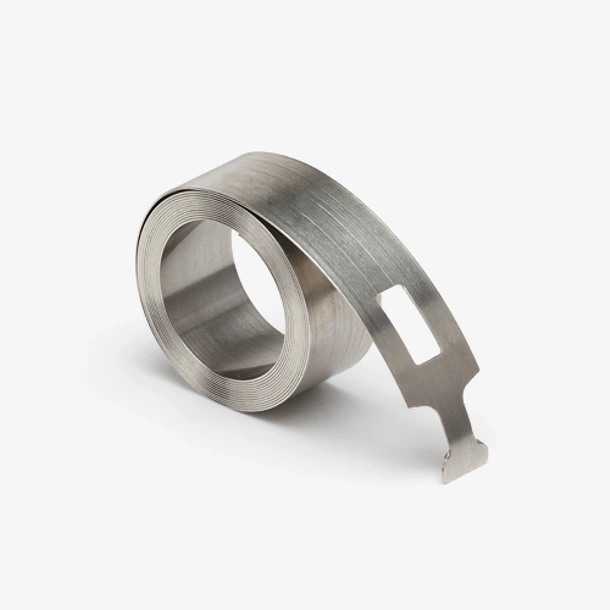

This is a Series 160 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 4-1/2 pounds. This is added together with the other coils to support the whole weight of the sash.
The weight you need should be indicated as a stamp or imprint on your old spring.
Measures 1/2" thick.
Designed to work with a pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

Coils

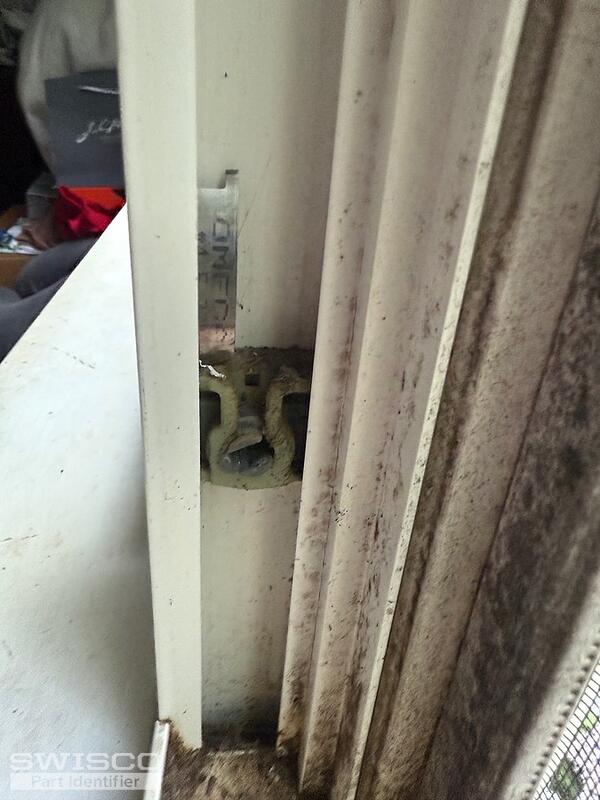

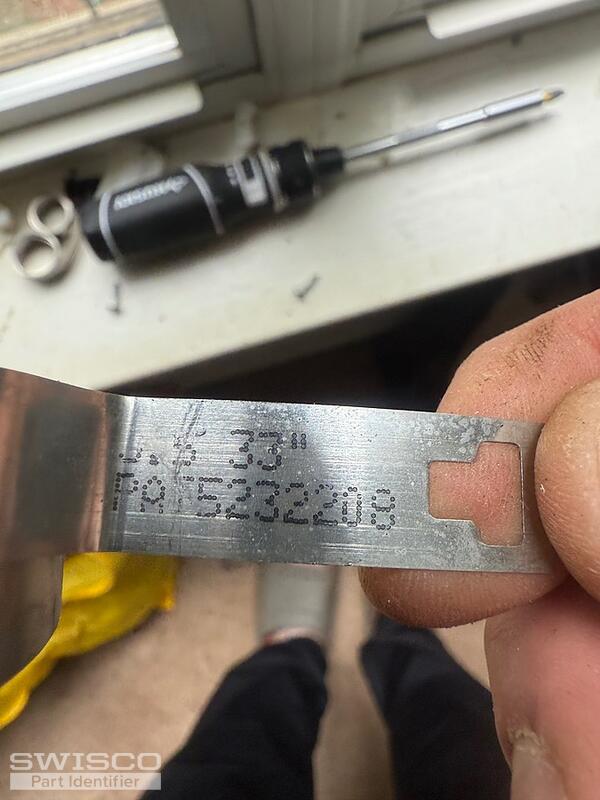

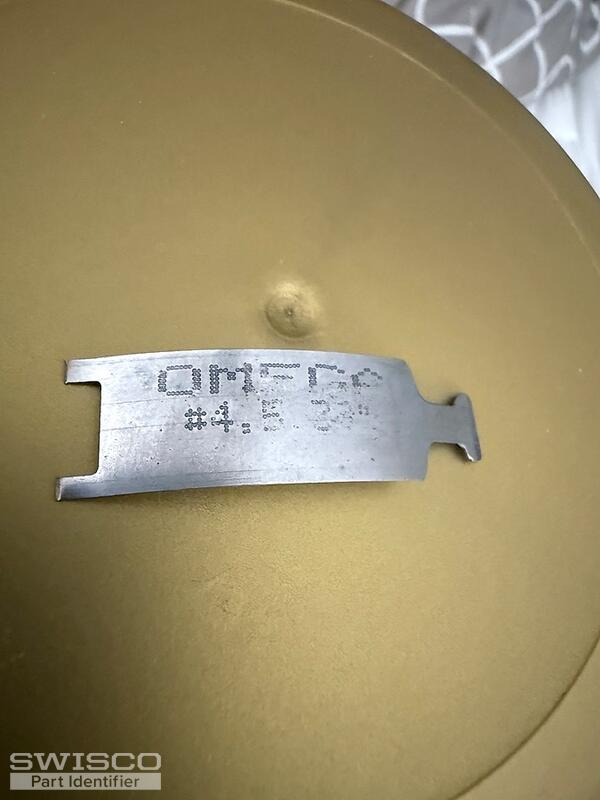

I can only see a number 4 on one coil. Coils are 3/8" wide, coil holder is 1/2" wide. I am looking for the easiest way to replace this. Is there an all in one retrofit or do I need to replace these exact parts? It seems like there are 1/2" coils standard with the series 160 1/2" holder on this site, ... (cont.)

Replacement Coil Balance

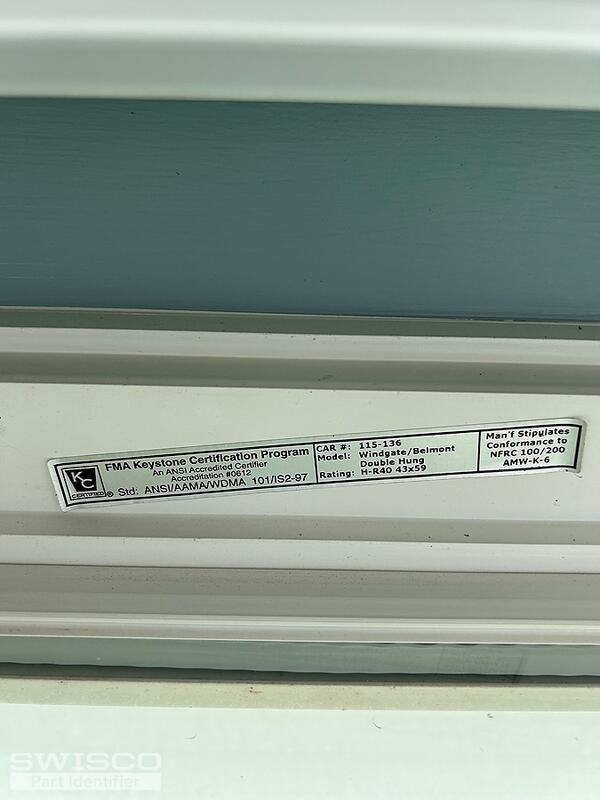

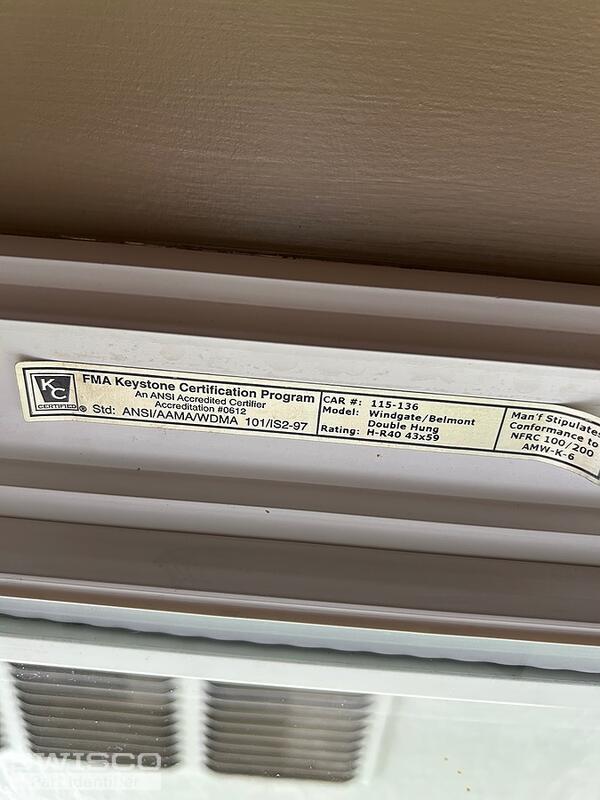

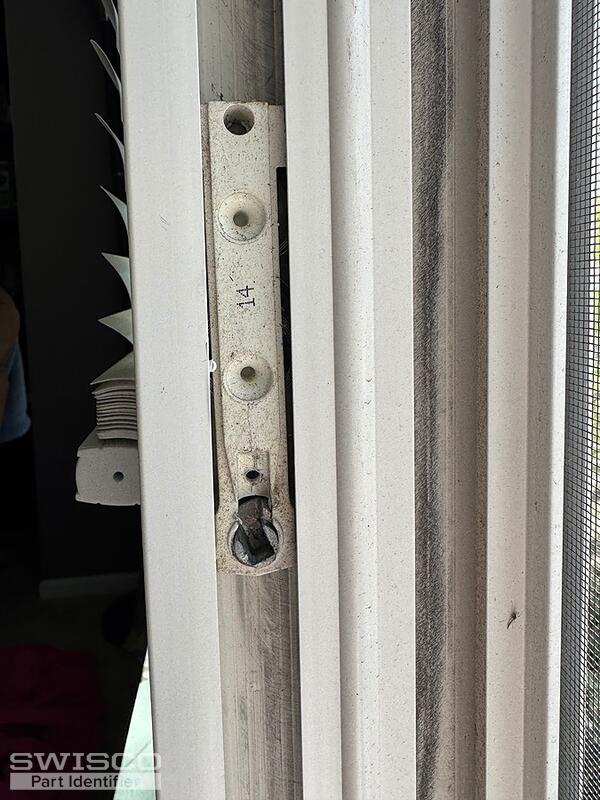

Can you tell me the coil balance part number for the window? The window weighs 21lbs. I have included a picture of the label on the inside of the window. They are in Part # 801020, Product Code: 15-150D1/2" Coil Double Support, ThanksJim

Replacement coil balances for my window

Hi Which kind of coil balances do I need to fix my window that will not stay up? Do I need to replace both sides?

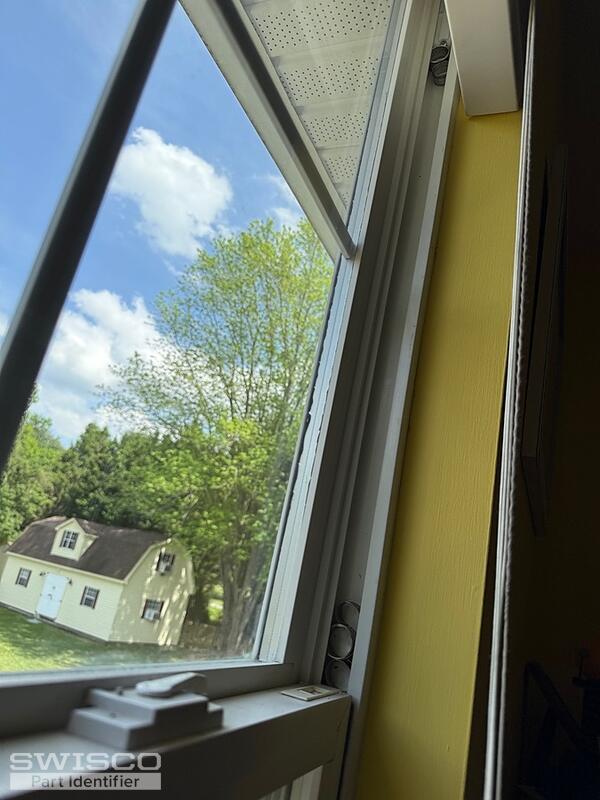

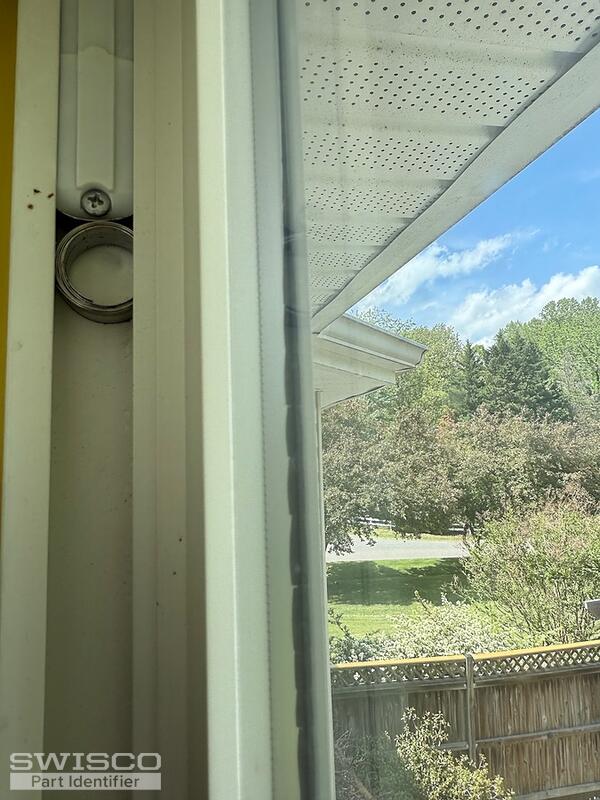

Tripple coil spring window balance replacemnt

Can you please help to identify the parts I should purchase? Thanks!

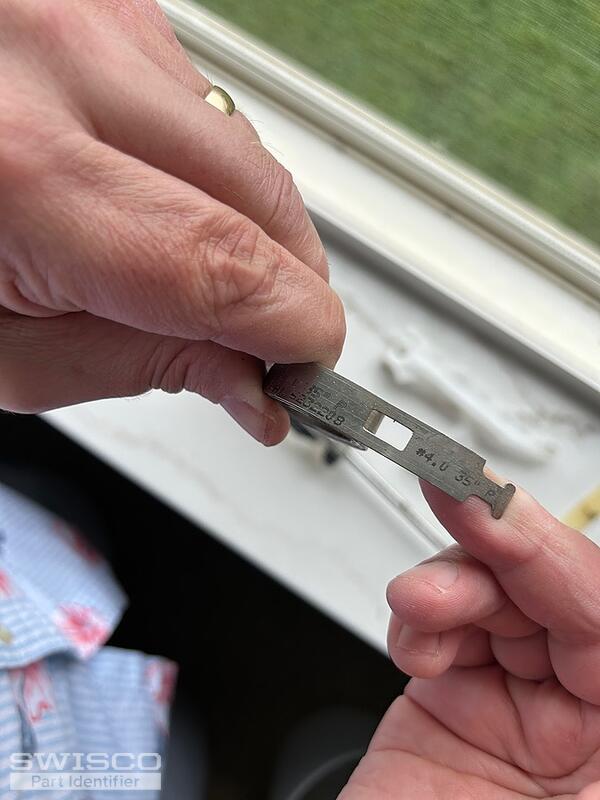

Looking for replacement coil balance for window

I started having issues with one of the windows in my home staying open and then not wanting to close all the way. After looking into it, I realized the coil balance had broken on one side and others were bent, so was looking into replacement parts. Seems like this is not something I can just find ... (cont.)
