Complete set

A contractor from Miami Beach, Florida says:

Please I do need right and left, complete set, including SS truck under de window, plus attachments if necessary.

Fernando

Thumbnail of the uploaded file named pNZ66VYSQtao4kbkPJpC2Q.jpg
Thumbnail of the uploaded file named zAI61sWZSoKVcjIkOj+6TQ.jpg
Thumbnail of the uploaded file named xZq%BQMhTTGS4+4%ZANamg.jpg

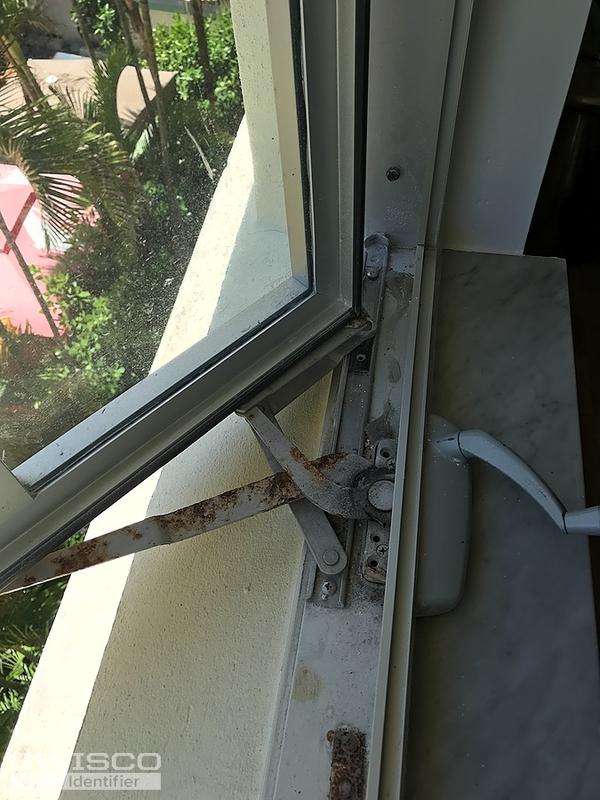

Thumbnail of the uploaded file named 58870595003__FE2621F7-8012-4A2A-85F5-A069201ED0F8.
A contractor from Miami Beach, Florida says:
Looks like part number 39-317,
+ SS Detach clip
Some equivalent of 39-362 that can be attached, under the mechanism, like chim. +
+39-546 / 39-545
If you have SS all, I wound prefer.

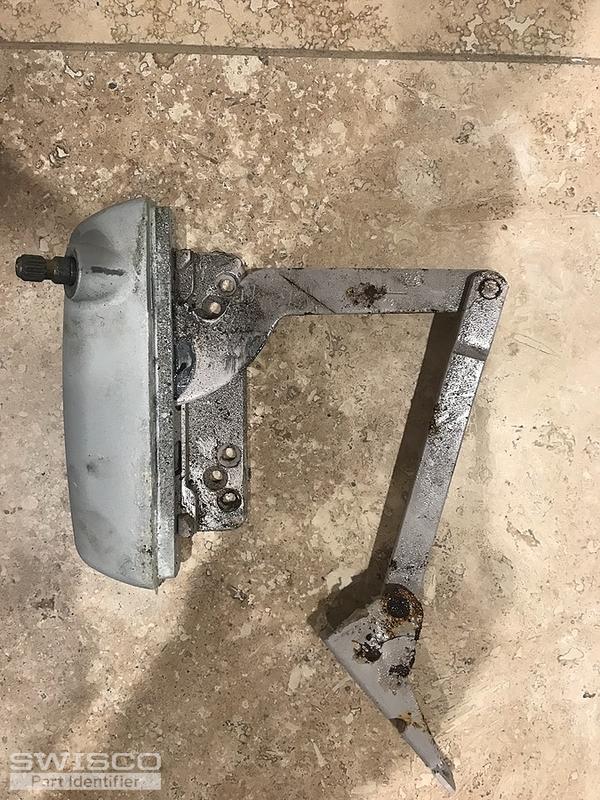

Thumbnail of the uploaded file named 4JH%KimGQQqBBxRE02xZ7w.jpg

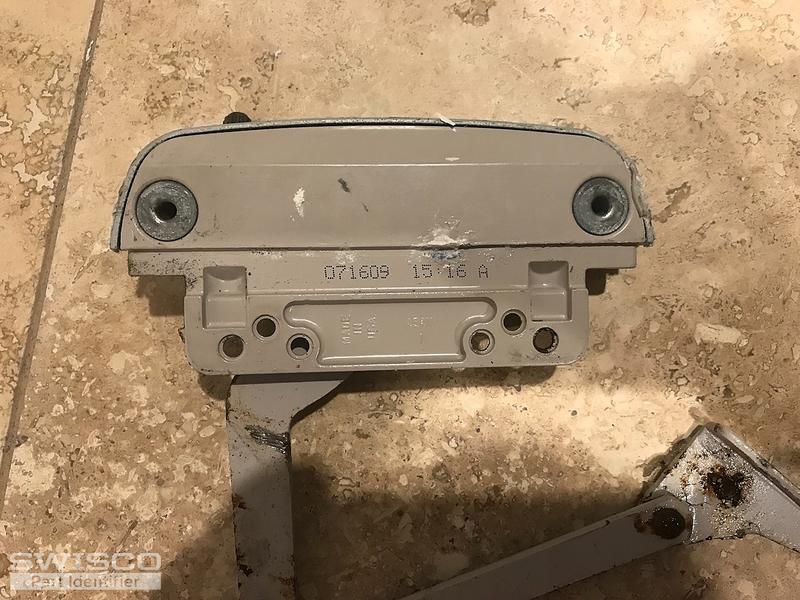

Thumbnail of the uploaded file named LJcmjCxmSMi7jriKbifsBA.jpg

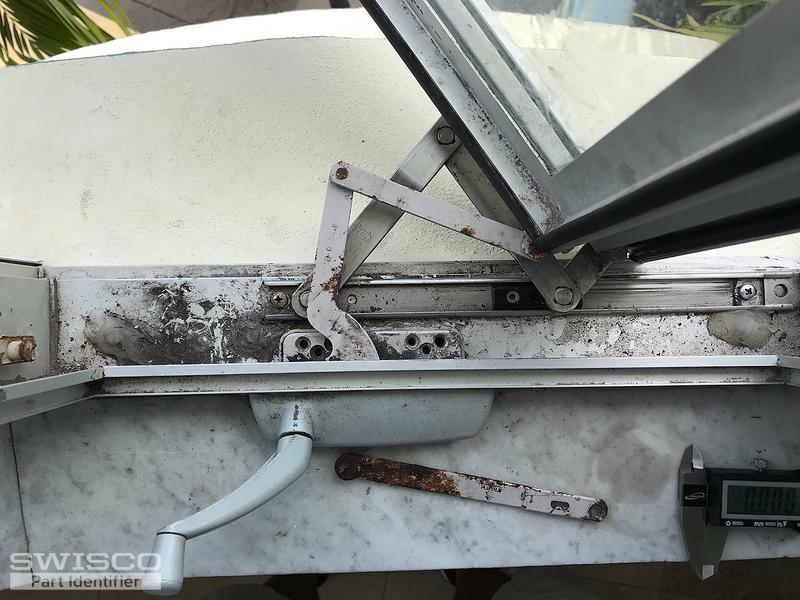

Thumbnail of the uploaded file named jIs536aOTQ+Gp7F+6M06dw.jpg

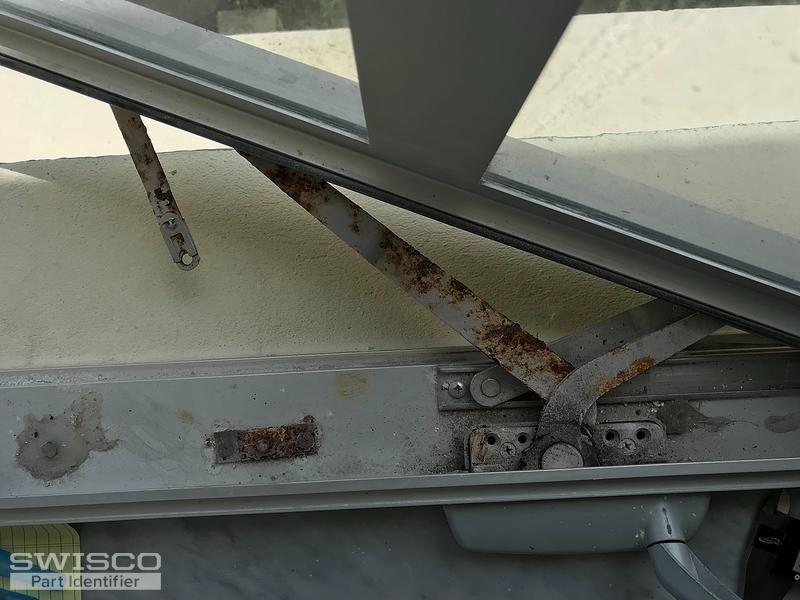

Thumbnail of the uploaded file named 9nS1t3QzRMqwi4Hi0bfJag.jpg
Profile picture of Tom
Tom from SWISCO responded:

It looks like you're showing me two different style operators here. One is a double arm, the other is a single arm. Neither are a match for our 39-317.

For the double arm operator, see our 39-253LB. For the single arm operator, see our 39-220B. Neither is available in stainless steel but they do have a corrosion-resistant powder coating.

Note that the handles and covers are sold separately in each instance. I recommend the 39-451 and 39-452.

I do agree that the 39-545 and 39-546 brackets are similar, but you can't use the 39-362 plate on these operators. This plate is designed to serve a very, very specific function for one type of Andersen operator made for one type of window made with in a specific 4 year time frame in the 90's. You can't just put this on anything. If a shim is necessary for you to install new operators, then you will need to see if a local hardware store sells a metal plate that you can fashion for that use.
